Automotive Emission Analyzer MEXA-324L

Overview

Perfect for engine inspection and tuning, the MEXA-324L non-dispersive infrared (NDIR) gas analyzer is loaded with features to make your analysis easier and accurate. At-a-glance measurements of carbon monoxide and hydrocarbons are now at your fingertips.

Features

One-Touch Measurement
Dedicated single-function buttons ensure easy operation.
Light and Compact
Lighter and more compact than its predecessor (MEXA-324J).
Large, Easy-to-Read Display
Easy-to-read, large-character LCD and bright LEDs provide all necessary information at a glance.
Icon display for self-diagnosis results
RS-232C enables remote control, data acquisition and printer capability.
Just 5 minutes for warming up.
One-touch calibration!

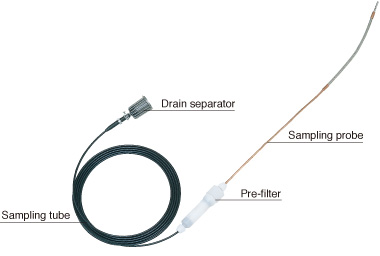

Light, durable sampling tube is easy to handle and worry free.

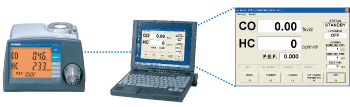

The communication software installed into a host computer allows easy operation to import measurement data from MEXA-324L and save it as a CSV format file continuously.

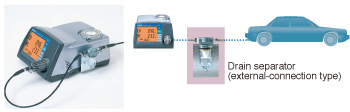

Drain separator (option) improves the ability to remove water from the sample, and protects the analyzer block from water damage.

Printout example

Manufactured by HORIBA

Specifications

Approved standards	Certified by the Japanese Ministry of Transport Conforms to the level of OIML Class 1 (Not CE, FCC certified)
Application	Exhaust gases in idling status from gasoline vehicle (two-wheel or four-wheel vehicle), LPG vehicle (four-wheel vehicle)
Principle	Non-dispersive infrared (NDIR)
Target component and range	CO: From 0.00 % vol to 10.00 % vol HC: From 0 ppm vol to 10000 ppm vol or From 0 ppm vol to 20000 ppm vol (Optional)
Response speed	Within 15 s, as Td + T95, at sample inlet.
Repeatability	CO: Within 0.06 % vol, or within 5 % of readings (whichever is large) HC: Within 12 % vol, or within 5 % of readings (whichever is large)
Warm-up time	5 minutes
Environment	Ambient temperature: From 0: to 40: Humidity: Relative humidity below 90 %
Input/outputs	LCD Digital input/output: RS-232C (standard) Printer: RS-232C
Calibration gas	Dedicated cylinder (CO, C₃H₈)
Power supply	115/120/220/230/240 V AC (10 %, max. 250 V AC) 50/60Hz (1Hz) Single phase (to be specified at order)
Power capacity	Approx. 50 VA
Dimensions	260(W) x 357(D) x 157(H) mm 10.3(W) x 14.1(D) x 6.2(H) in.
Mass	Approx. 4 kg
Options	Serial printer Printer cable (1.5m) Data process / control software Input / output cable (RS-232C cable; 2.5/5/10 m) Analog output board Analog output cable (3 m) Optional probe (Copper ø6/ø4 mm) Drain separator (Separately attached)
