Synapse InGaAs/Symphony II InGaAs

Deep Cooled NIR Scientific Cameras

TE and cryogenically cooled scientific cameras for ultra sensitivity from 800 nm to 2200 nm

HORIBA Scientific offers a complete line of spectroscopic multi-channel detectors for scientific research. For spectral detection from UV to near-IR, two dimensional CCDs and indium gallium arsenide linear arrays offer a faster acquisition option over single point detectors with relatively high sensitivity. Coupled with HORIBA’s range of aberration corrected, flat field imaging spectrographs, custom spectroscopy packages can be assembled for a variety of applications.

Segment: Scientific
Division: Custom Spectroscopy Solutions
Base product
Manufacturing Company: HORIBA Scientific

Quantum Efficiency by Type of InGaAs

Cooling

Wavelength

Array Dimension

Element Size

More Info

Synapse InGaAs

TE -60°C
-75°C with optional
external cooling

800-1650 nm

512 x 1
512 x 1
1024 x 1

25µm x 500µm
50µm x 500µm
25µm x 500µm

1050-2100 nm

512 x 1
512 x 1
1024 x 1

25µm x 250µm
50µm x 250µm
25µm x 250µm

Symphony II InGaAs

LN2-103°C


800-1600 nm

512 x 1
512 x 1
1024 x 1

25µm x 500µm
50µm x 500µm
25µm x 500µm

1000-2050 nm

512 x 1
512 x 1
1024 x 1

25µm x 250µm
50µm x 250µm
25µm x 250µm

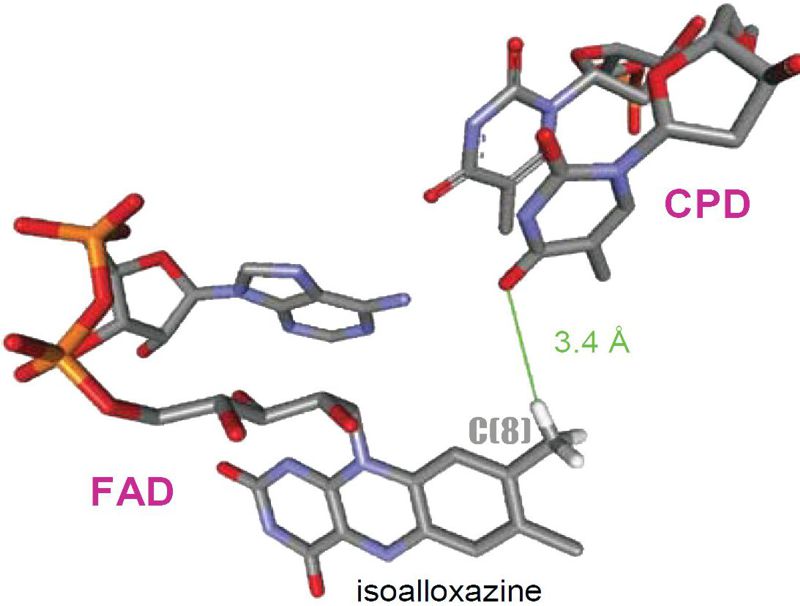

Raman and Resonance Raman Spectroscopy of Enzymes
Raman and Resonance Raman Spectroscopy of Enzymes
The TRIAX and iHR series spectrometers used in Raman system configurations provide superior imaging performance with no re-diffracted light and maximized optical throughput. Coupled to a high-performance Symphony® or Synapse™ CCD detector, these systems provide a high-performance spectroscopy platform for the investigation of chemical structures and components.
Symphony II InGaAs Specification Sheet
CategoryDocuments
Size 0.76 MB
FiletypePDF
Synapse InGaAs Specification Sheet
CategoryDocuments
Size 1.03 MB
FiletypePDF
