SWIFT™ Ultra Fast Raman Imaging
SWIFT™ Raman imaging couples the high optical throughput of the HORIBA Scientific Raman systems with high speed detector-stage coordination to make millisecond Raman mapping a reality. Detailed Raman maps can now be acquired on second/minute timescales with integration times down to 1ms and below. SWIFT™ retains the true confocal performance of the HORIBA Scientific Raman systems, thus ensuring optimised spatial resolution for analysis of small particles and thin layers.
Fast Raman imaging offers many advantages to the user:
- Acquisition times reduced by orders of magnitude without compromise in image quality.
- Macro areas (centimeters) can now be analysed with micro resolution.
- Large pixel size images (1 megapixel and more) are now possible in a single fast Raman map, providing both a broad overview and detailed high resolution work in a single experiment.
- Time resolved Raman imaging – with a full image acquired in just a few seconds, chemical reactions such as polymer curing occuring on minute/hour timescales can now be imaged.

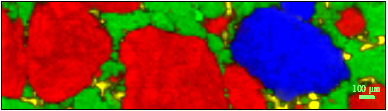

- SWIFT™ Raman image of pharmaceutical tablet.
6,601 spectra
52s total acquisition
SWIFT™ can be used in conjunction with other novel technologies to offer unrivalled Raman imaging capabilities:
The DuoScan™ technology introduces a revolutionary method enabling fast, sub-micron Raman imaging, and adaptive laser spots for average measurements over a large area. The combination of SWIFT™ and DuoScan™ allows fast macro-mapping with 100% coverage of the sample.
Electron multiplying CCD technology coupled with the high throughput of HORIBA Scientific Raman systems offers significant increases in sensitivity. The increased sensitivity afforded by the electron amplification processes of the EMCCD yields reduced acquisition times without compromise in signal to noise.
SWIFT™ is suitable for use with all lasers from UV through to near infra-red. It is compatible with all HORIBA Scientific systems, either at time of purchase, or as a retro-fittable upgrade.
- SWIFT™ Raman image of 0.9 µm polystyrene beads on quartz.
38,763 spectra
3m:28s total acquisition
- SWIFT™ Raman image of ablated sulfur on quartz, showing three distinct phases
20,352 spectra
3m:34s total acquistion
- SWIFT™ PL image of 3” MQW semiconductor wafer showing emission wavelength (left) and peak width (right)
23,409 spectra
7m:10s total acquisition
- SWIFT™ Raman image of whole pharmaceutical tablet.
48,081 spectra
8m:55s total acquisition

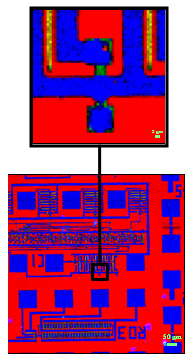

- SWIFT™ Raman image of 1 mm x 1 mm area of etched Silicon chip (bottom). Zoom region shown from same data set (top).
1,002,001 spectra
1hr:23m total acquisition
Visit our Raman Image Gallery for more astonishing Raman images
