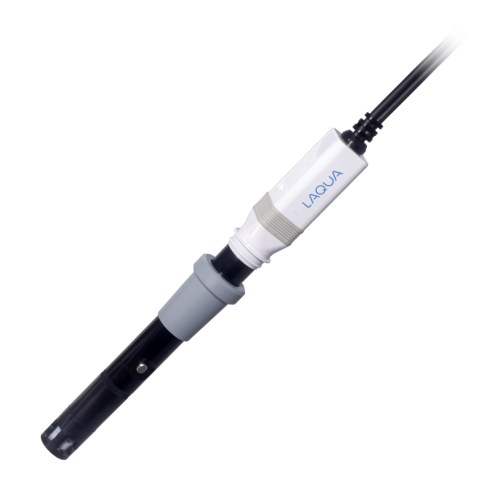

9521-10D DO Electrode

9521-10D DO Electrode

Galvanic DO Electrode for DO and BOD measurements in laboratories

Segment: Scientific
Division: Water Quality
Manufacturing Company: HORIBA Advanced Techno Co., Ltd.
  • Ideal for laboratory use
  • Integrated with built-in temperature sensor
  • Comes with replaceable 7544 DO Electrode Tip, detachable BOD bottle adapter and stirrer
  • Use magnetic stir plate during measurement
  • Waterproof
Dissolved Oxygen Range0 to 20.00 mg/L
Temperature Range0 to 50 °C
Response Time20 seconds (90% response time at constant temperature)
ConnectorsBNC, phono jack
Cable Length1 m
Overall Length183 mm
Diameter15.6 mm
Replacement DO Tip7544

Request for Information

Do you have any questions or requests? Use this form to contact our specialists.

* These fields are mandatory.
