Benchtop pH/Water Quality Analyzer LAQUA F-71

概要

pH mV(ORP)
PC PRT ID

特長


Click here for the dedicated LAQUA website (opens in a new Window)

Functions

  • Degital memory:Maximum 999 sets of measurement data can be recorded
  • ID input
  • Simultaneous connection to a GLP/GMP compatible and PC
  • Temperature compensation(Auto/manual)
  • AutoHold function
  • Security(pass word)
  • Version up function

製造会社: HORIBA Advanced Techno

仕様

F-71

pH

Measurement method

Galass electorode method

Measurement range

pH 0.000~14.000

Display range

pH -2.000~19.999

Resolution

0.001 pH

Repeatability

±0.005 pH±1 digit

pH calibration point

5

Repeatability check

Alarm limit of calibration

mV(ORP)

Measurement range

±1999.9 mV

Resolution

0.1 mV

Repeatability

±0.1 mV±1 digit

Temperature

Measurement range

0.0~100.0℃(-30.0~130.0℃)

Resolution

0.1℃

Repeatability

±0.1℃±1 digit

Input/output

Input(CH)

1

USB peripherals (Communication with PC)*1

RS-232C(Printer/PC)

Data

Memory number

999

Interval memory

ID input

Display

Custom LCD

Function

Printer connectivity(GLP/GMP)

temperature compensation(Auto/manual)

AutoHold function

Security(pass word)

Version up function

Ambient temperature

0 ℃ ~ 45℃

Power

AC adaptor 100 ~ 240 V 50/60 Hz

Demensions

170(W)×174(D)×73(H)mm(Excluding electrode stand and AC adaptor)

Power consumption

Approx. 0.7 VA

Mass of main unit

Approx. 500 g

*1 USB cable sold separately. Software can be download by web registration.

外形寸法図・他(単位:mm)

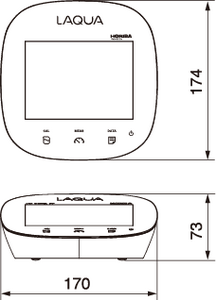

F-70 Series / DS-70 Series

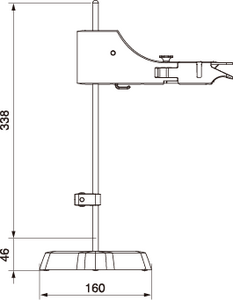

Electrode stand FA-70S

ダウンロード

  • F-71
    (Member registration required)

Quick manuals

  • F-71
    (Member registration required)
