Chemical Solution Concentration Monitor,
Overview
The CS-100 Series monitors measure in real time the concentrations of various types of chemical solutions and have the capability to control the timing of automatic chemical spiking.
Purpose
- Optimize processes through continuous measurement of chemical solutions
- Reduce usage volumes by extending life of chemical solutions
- Reduce lot defects and increase product yield
Features
- Real-time tracking of concentrations
A roughly 3-second measurement cycle ensures effective concentration control in chemical processes during solar cell manufacturing. The CS-100 series supports detailed concentration control in both multi-bath and single-bath cleaning equipment.
- Fully automatic continuous measurement
Measurement is fully automatic, so absolutely no operator control is required. Users can easily manage concentrations just by adding the solution. In addition, the reference spectrum measurement uses air, so water is not required as a utility in day-to-day measurements.
- Compact, lightweight design
The compact design requires only 2/3rds the floor area of previous models, allowing more efficient use of space for cleaning equipment. It can be easily incorporated into existing cleaning facilities, and is lightweight, so it can even be installed on top of cleaning devices.
- Suitable for low-temperature and high-temperature chemical solutions
Some models feature an air-cooled temperature adjustment function, so can accommodate a wide range of sample temperatures.

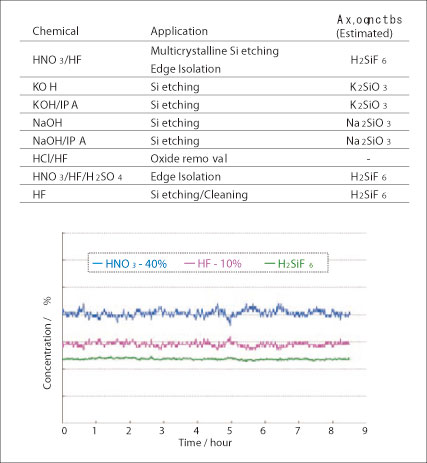

- Resistant to effects of chemical by-products
Computer processing ensures that these monitors are unaffected by the chemical by-products generated during the etching process, for even more accurate measurement of concentrations.
Manufactured by HORIBA
