Surface Plasmon Resonance imaging (SPRi)
SPRi-Lab+™
Overview
Designed to meet the demands of biologists and research scientists alike, the SPRi-Lab+™ is a compact surface plasmon imaging system with an affordable platform.
The SPRi-Lab+™ is your companion for the development of label-free and multiplexed bio-assays and molecule detection. This robust and compact apparatus is designed for simple operation and easy determination of real-time physico-chemical interactions and kinetics. Its open format, specialized SPRi-Biochip™ and convenient manual operation enables numerous types of experiments to be explored without restriction or compromise: covering chemistry, biochemistry, physico-chemistry and biomolecular interactions.

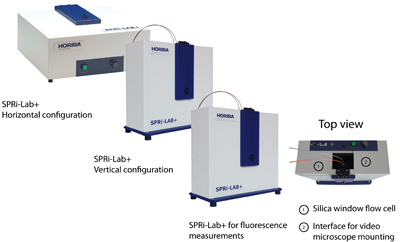

The SPRi-Lab+ is now gaining versatility to meet your requirements! Choose between three different designs without concession:
- Horizontal configuration for standard applications
- Vertical configuration for reduced footprint
- Vertical configuration with fluorescence-compatible flow cell
Simply add a fluorescence microscope to the SPRi-Lab+ to combine the power of label-free analysis to fluorescence measurements for a complete characterization of your sample.
Features
Lab based open format SPR imaging system for:
- Label-Free detection of biomolecules
- Real-Time monitoring of kinetics curves
- Affinity/binding parameters SPRi-Lab+™
- Multiplexed imaging (up to 400 spots)
Manufactured by HORIBA Scientific
Specifications
- Sample volume: typically 200 μL
- Sample concentration: 300 ng/mL (100-1000 kDa) to 10 μg/mL (4-20 kDa)
- Sample molecular weight: > 240 Da
- Limit of detection: 10 pg/mm2
Accessories
| SPRi-Lab+™ Accessories
|
| Continuous Flow Microspotter™(CFM) The CFM is an automatic printer that uses flow deposition for printing biomolecules. Samples are cycled over the surface and captured from solution, leading to higher biomolecule density, better spot uniformity and improved assay sensitivity. |
| SPRi-Arrayer SPRi-Arrayer is an automatic, compact and portable apparatus. It prints DNA, oligonucleotides, proteins, bacterial clones and other materials with low cross contamination. |
| Student Kit The ready-to-use student kit for practical works includes:
|
