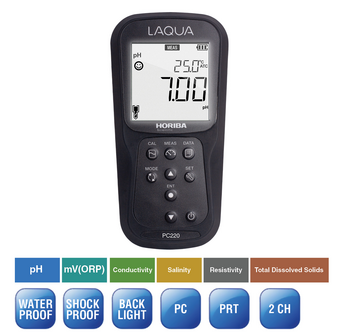

LAQUA PC220

Handheld pH/ORP/Conductivity/Resistivity/Total Dissolved Solids/Salinity/Temperature Meter

Waterproof standard handheld meters with backlit LCD, shockproof & scratch-resistant non-slip casing, built-in electrode stand, and foldable meter stand in durable carrying case for routine water quality testing in the field.







*This product is available in Asia Pacific, Europe, Middle East and Africa region.

Segment: Scientific
Division: Water Quality
Manufacturing Company: HORIBA Advanced Techno Co., Ltd.
  • Automatic pH calibration - up to 5 points (NIST, USA pH buffers) / up to 6 points (DIN pH buffers)
  • 0.01 pH resolution
  • Offset and average slope display
  • ORP calibration option
  • Automatic / manual temperature compensation and temperature calibration function
  • Automatic (up to 4 points) and manual (up to 5 points) conductivity calibration
  • Adjustable reference temperature and temperature coefficient
  • Adjustable cell constant and selectable measurement unit
  • Conductivity and total dissolved solids (TDS) conversion
  • Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
  • Two (2) salinity calibration curves: NaCl, Seawater
  • With real-time clock and date/time stamp for GLP compliance
  • Auto log data; built-in memory can store up to 1000 data
  • Auto shut-off (programmable: up to 30 minutes)
  • Auto stable, auto hold, and real time measurement modes
  • Calibration alarm (programmable: up to 90 days)
  • Built-in electrode holder allows 2 electrodes to be attached
  • Monochrome LCD with white LED backlight: 50 x 50 mm
  • Phono jack output for connecting meter to computer via PC (USB) cable for data collection and to printer via printer (RS232) cable for printout
  • Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
  • Powered by 2 x AA batteries
  • Packaged with electrodes and calibration solutions in carrying case
  • 3 years meter warranty



Meter Kits Available



Meter KitPackage Details
PC220-K
  • LAQUA PC220 Dual channel pH/ORP/Conductivity/Resistivity/Total Dissolved Solids/Salinity/Temperature meter
  • 2 x AA batteries
  • Manual and quick guide
  • 9652-10D plastic-body, gel-filled pH electrode integrated with temperature sensor
  • 9383-10D plastic-body, Ti/Pt black, conductivity probe (k=1.0) integrated with temperature sensor
  • pH 4.01 and 7.00 buffers, 1413 µS/cm and 12.88 mS/cm conductivity solutions (60ml each)

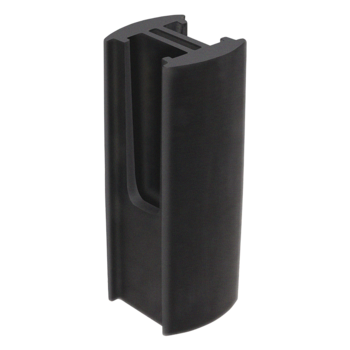

  • Electrode adapter
  • Carrying case
PC220-KN
  • LAQUA PC220 Dual channel pH/ORP/Conductivity/Resistivity/Total Dissolved Solids/Salinity/Temperature meter
  • 2 x AA batteries
  • Manual and quick guide
  • 9652-10D plastic-body, gel-filled pH electrode integrated with temperature sensor
  • 9383-10D plastic-body, Ti/Pt black, conductivity probe (k=1.0) integrated with temperature sensor
  • pH 4.01 and 6.86 buffers, 1413 µS/cm and 12.88 mS/cm conductivity solutions (60ml each)
  • Electrode adapter
  • Carrying case
Model

LAQUA PC220

pH/ORP/Conductivity/Resistivity/Total Dissolved Solids/Salinity/Temperature (°C/°F)

pH Range-2.00 to 16.00 pH
Resolution0.01 pH
Accuracy± 0.01 pH
Calibration PointsUp to 5 (USA & NIST), Up to 6 (DIN)
Buffer OptionsUSA, NIST, DIN
ORP Range± 2000 mV
Resolution0.1 mV (< ±1000 mV), 1 mV (≥ ±1000 mV)
Accuracy± 0.3 mV (< ±1000 mV), 0.3% of reading (≥ ±1000 mV)
Calibration OptionYes
Conductivity Range...µS/cm to 200.0 mS/cm (k=1.0)
Resolution0.05% full scale
Accuracy±0.6% full scale; ±1.5% full scale > 18.0 mS/cm
Reference Temperature15 to 30 °C (adjustable)
Temperature Coefficient0.00 to 10.00% (adjustable)
Cell Constant0.1, 1.0, 10.0 (adjustable)
Calibration PointsUp to 4 (Auto) / Up to 5 (Manual)
Unit SettingS/cm, S/m (Auto-ranging)
TDS Range...ppm to 100 ppt (TDS factor=0.5)
Resolution0.01 ppm (mg/L) / 0.1 ppt (g/L)
Accuracy±0.1% full scale
Calibration CurvesLinear (0.40 to 1.00), EN27888, 442, NaCl
Resistivity Range0.000 Ω•cm to 20.0 MΩ•cm
Resolution0.05% full scale
Accuracy±0.6% full scale; ±1.5% full scale > 18.0 MΩ•cm

Salinity Range

0.0 to 100.0 ppt / 0.00 to 10.00 %

Resolution0.1 ppt / 0.01 %
Accuracy±0.2% full scale
Calibration CurvesNaCl, Seawater
Calibration OptionYes
Temperature Range-30.0 to 130.0 °C / -22.0 to 266.0 °F
Resolution0.1 °C / °F
Accuracy± 0.5 °C / ± 0.9 °F
Calibration OptionYes
Memory Data1000
Auto Log DataYes
Real-time ClockYes
Date & Time StampYes
Measurement ModesAuto Stable, Auto Hold, Real Time
Offset / Average Slope DisplayYes
Calibration AlarmYes (Programmable: up to 90 days)
Auto Shut-OffYes (Programmable: up to 30 minutes)
Electrode StatusYes (On screen display)
Diagnostic MessagesYes
PC CommunicationYes via PC (USB) cable PN 3200779639
Printer CommunicationYes via Printer (RS232) cable PN 3200779638
Meter Inputs2 x BNC (for pH and conductivity electrodes), 2 x phono (for temperature sensors)
Meter Outputphono (for PC/printer connection)
DisplayCustom LCD with backlight
HousingIP67, shock & scratch resistant, non-slip
Power Requirement2 x AA batteries
Battery Life> 500 hours
Meter Dimensions160 (L) x 80 (W) x 40.60 (H) mm
Meter WeightApprox. 260g (with batteries) / 216g (without batteries)
