Ambient Particulate Monitor APDA-375A (PM2.5)
Overview
Ambient Particulate Monitor APDA-375A automatically measures PM2.5 which is ambient particulate matter of 2.5 μm or smaller in particle diameter. APDA-375A continuously measures concentration levels of PM2.5 by means of beta ray attenuation principle. The long lasting PTFE filter tape has unique strudture, and it is capable of picking samples for chemical component analysis of the particles as well as measuring concentration levels.
Features
Long term unattended remote operation of up to 60 days.
Automatic hourly zero checks.
- Data retrieval through RS-232 serial ports using direct PC connections, modems, printer, or digital data collection systems (Option)
- Direct data logging into CompactFlashTM Card is optionally available.
Manufactured by HORIBA
Specifications
APDA-375A (PM2.5) | |
|---|---|
Measurement | Ambient particulate matter less than 2.5 μm |
Measruring principle | Beta ray attenuation |
Standard range | 0μg/m3 to 1000/5000 μg/m3, Auto・manual |
Optional range | 0μg/m3 to 200/500/1000/5000/10000 μg/m3 |
Repeatability | ±２% for span equivalent foil |
Span drift | ±3% for span equivalent foil |
Linerarity | ±5% for span equivalent foil |
Minimum detectable limit | ±2 μg/m3 (1h) |
Beta Detector Type | Photomultiplier tube with organic plastic scintillator |
PM2.5 | EPA-designated PM2.5 Very Sharp Cut Cyclone |
Measurement cycle time | 1h |
Flow rate | 16.7 L/min |
Pump | Linear drive system |
Display | Date, time, mass, flow rate, etc. |
Analog Output | Isolated 0 V to 1 V DC output standard, 0 V to 10 V, current, slectable |
Alarm contact closures | Measurement range, power failure, maintenance, etc. |
Serial interface | RS-232C, TCP-IP, CompactFlashTM |
Operation temperature | 0°C to 40°C |
Operation humidity | 0% to 90% RH non condensing |
Power supply | 100 V ±10 V AC, 50/60 Hz |
Power consumption | Less than 370 VA |
Unit dimensions | 430(W) x 400(D) x 266(H) mm |
Mass | 19 kg without external accessories |
*CompactFlash is a registered trademark or trademark of SanDisc Corporation in the United States and other countries.
*The measuring ranges depend on specifications. The range can be selected freely and either the automatic or manual (fixation of specificc range) mode can be selected for the selected range.

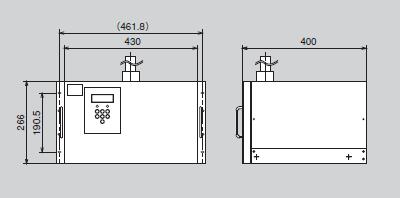

Schematics
