APSA-370/CU-1 Ambient Hydrogen Sulfide Monitor
Overview
APSA-370/CU-1 Ambient H2S monitor measures SO2 converted H2S through oxidation catalyst based on Ultra Violet Fluorescence. In order to reduce measurement error by water concentration fluctuatin in ambient, humidifier is set at sample line. It enables long-term stability according to stabilizing catalytic reaction.
Features
- Monitor H2S with high sensitivity range in ambient air continuously.
- Set humidifier at sample line to satbilize catalytic reaction.
Manufactured by HORIBA
Specifications
Measurement component | Hydrogen sulfide (H2S) in ambient air |
Measurement principle | Oxidation catalyst + Ultra Violet Fluorescence |
Measurement range | 0-0.1/0.2/0.5/1.0 ppm |
Lower detectable limit | 2 ppb |
Repeatability | ±3.0% of F.S. |
Linearity | ±2.0% of F.S. |
Zero drift | ±2% of F.S./day |
Span drift | ±5% of F.S./day |
Response time (T90) | 180 sec. or less (from CU-1converter unit) |
Sample gas flow rate | approx. 0.7L/min |
Operation gas | None |
Indication | Measuring value, alarm |
Alarm | APSA-370: Calibration error, Battery error, Flow rate error, Pressure error, Temperature error in catalyzer, etc. |
Inpt/Output | 0-1V/0-10V/4-20mA (2 systems: either (1) momentary value and integrated of (2) moving average value) |
Temperature/Humidity | 0-40°C / 85% or less |
Power | 100/110/115/120/220/230/240 VAC, 50/60Hz |
Power consumption | APSA-370: 150VA |
Dimension | APSA-370: 430(W) x 550(D) x 221(H) mm |
Mass | APSA-370: approx. 19kg |

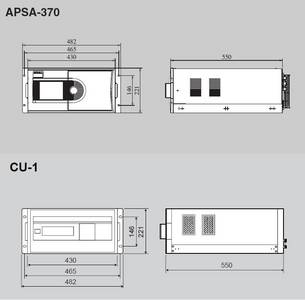

Schematics
