Aqualog® - Our compact, Benchtop Fluorometer for CDOM
Overview
NEW Datastream Dashboard Software
NEW Automatic Sipper Accessory
Aqualog is the only instrument to simultaneously measure both absorbance spectra and fluorescence Excitation-Emission Matrices. EEMs are acquired up to a 100 times faster than with other instruments. Dedicated software automates traceable Quinine Sulfate Unit calibration and correction of inner-filter effects and Rayleigh and Raman scattering lines, enabling rapid export to modeling algorithms like PARAFAC.
Aqualog now offers new deep UV absorbance and fluorescence excitation from 200 nm, in addition to a fully automated sample queue tool to facilitate continuous data acquisition, analysis and export for immediate multivariate analysis with the Solotm package from our partner, Eigenvector Research, Inc.
Features
Aqualog
Hardware
The only true simultaneous absorbance-fluorescence system available
TE-cooled CCD fluorescence emission detector for rapid data acquisition up to 100 times faster than any other benchtop fluorometer
Corrected UV-VIS absorbance detection path for stability and accuracy
Double grating excitation monochromator for superior stray light rejection
Matching bandpass for absorbance and fluorescence spectra
Automatic sample changer option (2 or 4 position)
- Compatible with flow cells and titrator
Software
Optimized experiment set-up menus minimize user confi guration time
Complete NIST-traceable corrected fluorescence spectra automatcally generated
Spectral and kinetic analysis tools for both absorbance and fluorescence data
- Methods and batch protocols for automating multiple sample measurement
Click here for the Aqualog 3.6.11 Patch.
Please Note: Please select to save the file. Release Notes.
NEW A-TEEM technology
A-TEEM technology uses absorbance, transmittance and EEM data to fingerprint molecules with high specificity and ultrahigh-sensitivity at a 6 million nm/min emission scan rate!
All colored molecules exhibit unique molecular absorbance and transmittance spectra; many colored molecules also exhibit unique fluorescence excitation and emission spectra that can be measured as an excitation-emission matrix (EEM). Simultaneously combining Absorbance–Transmission and EEM is a new technique (A-TEEM) that provides a distinct molecular fingerprint with numerous potential applications.
Aqualog combines an ultrafast CCD that’s up to 4,000 times faster than traditional PMT-based fluorometers, with our new A-TEEM technology so you can easily and effectively identify, quantify and understand individual organic compounds in complex mixtures in minutes. A-TEEM has already proven in many cases to be more effective in protein, vaccine, wine and water research, quality and process applications than HPLC and vibrational spectroscopy.
NEW Aqualog® Datastream Dashboard
Features
- Seamless integration with Aqualog
- Convenient HTML-based interface
- Push-button method operation
- Simple administrator level controls for calibration and method development
Benefits
- Easy access through internet or intranet
- Dashboard shows the latest readings, time series and tables for trends and analysis
- WTP can upload their own independent data
Aqualog Datastream Dashboard is powered by Solo_Predictor software from
Eigenvector Research, Incorporated
NEW Automatic Sipper Accessory

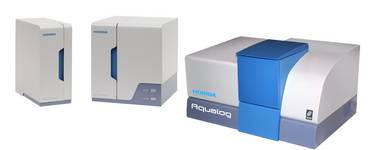

New for our Aqualog® A-TEEMTM spectrometer, the Aqualog automatic sipper accessory handles sampling from a single source, in addition to dispensing rinsing solutions, detergents and controlling reverse-flow drainage The 4-sample changer unitconnects to the main sipper unit to enable sampling of up to 4 sources.
The sipper offers convenient installation and operation, with built-in automatic cleaning, leak detection and protection. It is fully integrated into the new Aqualog 4.0 software for batch analysis and has a variety of uses in water, pharmaceutical, beverage phenolics and many other applications.
When used at a water treatment plant, the sipper and four channel accessory enable the Aqualog to automatically extract and monitor raw, settled and finished water samples. Each sample changer unit is compatible with overflow and filtration devices, serving up to 4 independent water treatment plant sources.
Manufactured by HORIBA
Specifications
Datastream Dashboard Specification
Automatic Sipper Accessory Specification
Aqualog Specification
Fluorescence Hardware | ||
|---|---|---|
Choice of Light source | Standard: 150W ozone-free vertically mounted xenon arc lamp | Extended-UV: 150W vertically mounted xenon arc lamp |
Excitation range | 230 nm to upper limit of emission detector | 200 nm to upper limit of emission detector |
Excitation bandpass | 5 nm | |
Excitation monochromator | Subtractive double monochromator | |
Excitation gratings | 1200 gr/mm, 250 nm blaze | |
Excitation wavelength accuracy | ±1 nm | |
Choice of Detector | UV-Visable | Red-extended |
Emission range | 250-620 nm | 250-800 nm |
Emission grating | 405 gr/mm; 250 nm blaze | 285 gr/mm; 350 nm blaze |
Hardware pixel binning | 0.41, 0.82, 1.64, 3.28 nm/pixel | 0.58, 1.16, 2.32, 4.64 nm/pixel |
Emission bandpass | 5 nm | |
Emission spectrograph | Fixed, aberration-corrected 140 mm focal length | |
Emission detector | TE-cooled back-illuminated CCD | |
Emission integration time | 5 ms minimum |
|
CCD gain options | 2.25 e-/cts in high gain, 4.5 e-/cts in medium gain, 9 e-/cts in low gain | |
Sensitivity | Water-Raman SNR > 20,000:1 (RMS method) (350 nm excitation, 30s integration) | |
Weight | 32.72 kg (72 lbs) | |
Dimensions | LWH (618 x 435 x 336 mm); (24" x 17" x 13") | |
Absorbance Hardware | |
|---|---|
Scanning range | 200 - 800 nm (UV lamp) |
Bandpass | 5 nm |
Slew speed | Max 500 nm/s |
Optical system | Corrected single-beam |
Detector | Si photodiode |
Wavelength accuracy | ±1 nm |
Wavelength repeatability | +/- 0.5 nm |
Photometric accuracy | ±0.01 AU from 0 to 2A |
Photometric stability | <0.002 AU per h |
Photometric repeatability | +/- 0.002 AU (0 to 1 AU) |
Stray light
| <1% measured with KI standard |
Datastream Dashboard Specification
Aqualog Datastream Parameters | Specifications | Notes |
|---|---|---|
Dissolved Organic Carbon Concentration | 30 µg/l-20 mg/l | Requires Filtration (0.45 µm) |
A254 nm | 1 cm path length | |
SUVA | L DOC mg-1 | |
Simulated Distribution, System Trihalomethane, | SDS THMFP (10 µg/l – 500 µg/l) | SDS THMFP (10 µg/l – 500 µg/l) |
Parallel Factor Analysis Component Scores | Up to 7 | Can include Algal, Oil/PAH, Tracer Dyes and other Components |
Residuals (Q) | Detect Contaminants and Measurement Issues | |
% Variance Accounted For | Detect Contaminants and Measurement Issues | |
Absorbance Spectrum | 200-800 nm; 1 cm path length | Any wavelength coordinate or ratio can be analyzed with extinction coefficients |
Excitation Emission Matrix (EEM) Regions | I-V plus Algal (Bluegreen/Brown/Green) | Custom EEM regions also available; Based on Interpolated EEM |
Total Fluorescence | Sum of EEM Regions I-V | |
Humic Index | ||
Fluorescence Index | ||
Independent Treatment Plant Data | ||
DOC | mg/l | |
Alkalinity | mg/l | |
Chlorine Residual | mg/l | |
THM/SDSTHMFP | µg/l | |
A254 nm | Adjustable Path Length Specifications | |
pH | ||
Additional Parameters Available | ||
System Requirements | Datastream Specifications | |
|---|---|---|
Windows OS | 64 bit Windows 7 or higher | |
Web Browser | Google Chrome ≥V53.x or Firefox ≥49.x | |
Memory (RAM) | ≥ 4 GB | |
Hard Disk | ≥ 4 GB | |
DVD-ROM | Required | |
USB Ports | ≥ 2 | Additional ports may be required for accessories |
Video Resolution | ≥ 1024 x 768 | |
Eigenvector Solo Industrial | V8.2 or higher | |
HORIBA Onsite Installation/Calibration | Required | |
HORIBA 6 month service | Advised | |
License Period | 1 year renewable | |
Aqualog Hardware | UV-800 (200-800 nm) |
Aqualog Datastream Dashboard is powered by Solo Predictor software from
Eigenvector Research, Incorporated
Automatic Sipper Accessory and Sample Changer Specifications
WS-10 | WS-10-S | |
|---|---|---|
Sample supply method | Suction using tubing pump | Suction from WS-10 Sipper |
Amount of sample required | Up to 120mL/min +/-20mL/min at 25° C | |
Compliant tubing | Plastic tube, 2 mm inside, 3 mm outside | |
Maximum sampling | Under 5 m from sampling point to auto sampler | Under 4 m from sampling point to sample |
Sample water | Pressure: Under 0.20 MPa SS: Particle size: 1.0 μm | |
External liquid leakage | Operation resistance: range 3: 0 MΩ to 50 MΩ | N/A |
Connection | USB cable to computer | D-sub 25 pin to WS-10 sipper |
Ambient temperature | 5° C to 40° C | |
Relative humidity | 20% to 85% (without dew condensation) | |
Storage temperature | 0° C to 40° C (without freezing) | |
Power supply | 100 V to 240 V AC +/-10% 50/60 Hz | From D-sub 25 pin connector |
Structure | Indoor use | |
Size (W x D x H) | 250 mm x 250 mm x 308 mm | 250 mm x 125 mm x 308 mm |
Weight | 9 kg / 19.8 lbs. | 4.2 kg / 9.26 lbs. |
Accessories
NEW Automatic Sipper Accessory
New for our Aqualog® A-TEEM™ spectrometer, the Aqualog automatic sipper accessory handles sampling from a single source, in addition to dispensing rinsing solutions, detergents and controlling reverse-flow drainage. The 4-sample changer unitconnects to the main sipper unit to enable sampling of up to 4 sources.
The sipper offers convenient installation and operation, with built-in automatic cleaning, leak detection and protection. It is fully integrated into the new Aqualog 4.0 software for batch analysis and has a variety of uses in water, pharmaceutical, beverage phenolics and many other applications.
When used at a water treatment plant, the sipper and four channel accessory enable the Aqualog to automatically extract and monitor raw, settled and finished water samples. Each sample changer unit is compatible with overflow and filtration devices, serving up to 4 independent water treatment plant sources.
Download the Automatic Sipper Accessory flyer for more information.
