Chlorfenapyr
Overview
Chlorfenapyr is an insecticide and is used for multiple farm products because of its wide insecticidal activity range. This kit allows an easy, rapid (within 2 hours), sensitive, quantitative, multi-sample analysis of chlorfenapyr that remains in farm products. This kit is best applied for inspection at delivery time/prior to processing or primary screening in production sites.
Features

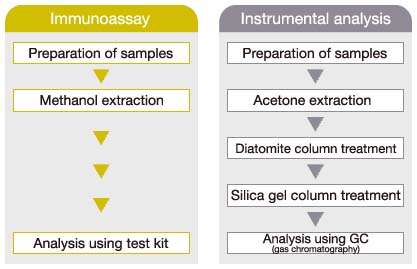

Comparison with instrumental analysis
While instrumental analysis offers high accuracy, it requires complicated and time-consuming pretreatment techniques,and sophisticated instrument operation as well as large quantities of hexane or diethyl ether as organic solvents. The simpler pretreatment required for kit saves significant time. Additionally, only a small quantity of methanol is required as an extraction solvent for analyzing chlorfenapyr.
Application examples

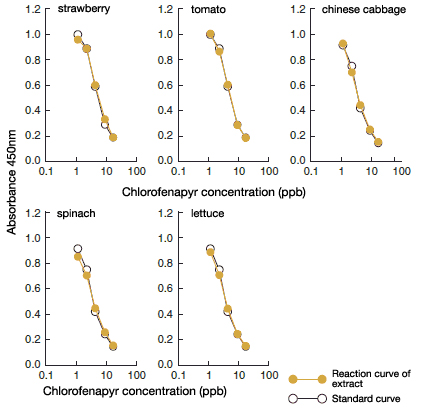

The figures show the comparison between standard curves with 10% methanol and reaction curves drawn with methanol extract of chlorofenapyr-added farm products (diluted to 10% methanol equivalent). The overlapping curves; demonstrate the suitability of this kit for analyzing trace chlorofenapyr without any interference from the original produce.
Manufactured by HORIBA
Specifications
The following data represent the basic kit performance. For more detailed specifications, please contact us.

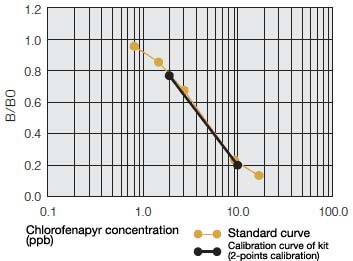

Standard curve
Cross-reactivity
Pesticides | Cross-reactivity (%) |
|---|---|
Chlorfenapyr | 100 |
Fludioxonil | < 0.1 |
Fluacrypyrim | < 0.1 |
Acetamiprid | < 0.1 |
Imidacloprid | < 0.1 |
Captan | < 0.1 |
Diazinon | < 0.1 |
Chlorpyrifos | < 0.1 |
Malathion | < 0.1 |
Etofenprox | < 0.1 |

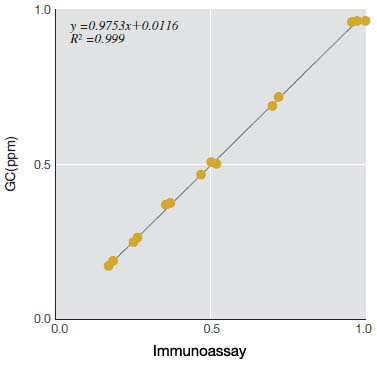

Instrumental analysis (tomato)
Data courtesy of Dr. Koichi Shiraki, Gifu Prefectural Research Institute for Health and Environmental Sciences
Within-run reproducibility (tomato)
Samples | Average (ppb) | SD | CV(%) |
|---|---|---|---|
A | 4.3 | 0.2 | 3.6 |
B | 8.6 | 0.5 | 6.3 |
n=8
Between-analysts reproducibility (tomato)
Samples | Average (ppb) | SD | CV(%) |
|---|---|---|---|
A | 5.3 | 0.3 | 5.6 |
B | 9.2 | 0.4 | 4.0 |
n=3
Daily reproducibility (tomato)
Samples | Average (ppb) | SD | CV(%) |
|---|---|---|---|
A | 4.3 | 0.0 | 0.7 |
B | 8.8 | 0.8 | 8.6 |
n=3
Recovery test (tomato)
Concentration of addition (ppm) | Recovery ratio (%) |
|---|---|
4.0 | 126.5±8.4 |
1.0 | 118.5±5.8 |
n=3
Results of within-run reproducibility, daily reproducibility, between-analysis reproducibility and recovery test show that this test kit can quantitatively analyze chlorfenapyr in produce.
Main kit components / shelf-life
Contents (form) | Volume | Quantity |
|---|---|---|
Antibody coated plate (dry form) | 8 rows x 12 columns | 1 piece |
Standard reagent L (freeze-dried: 2ppb) | 1mL | 2 vials |
Standard reagent H (freeze-dried: 10ppb) | 1mL | 2 vials |
Enzyme-labeled Chlorfenapyr reagent (freeze-dried) | 6mL (after dissolution) | 2 vials |
Washing reagent (solution: 10 times concentrated) | 50mL | 1 vial |
Chromogenic reagent (solution) | 13mL | 1 vial |
Stop reagent (solution) | 13mL | 1 vial |
Shelf-life: | 12 months after production | Storage at 2 to 8°C |
|---|
