CP30 Series OEM Miniature Spectrograph

Overview

The CP30 miniature spectrograph is available with a choice of solid state array detectors. Designed for OEM applications, it will fit into small, hand-held, portable instruments or can take the place of larger spectrometers where space is at a premium.

Manufactured by HORIBA Scientific

Specifications

  • Focal Length:
    30 mm
  • Wavelength Range:
    380 - 780 nm
  • Dispersion:
    65 nm/mm
  • f/1.5
  • Spectrum Length:
    5.4 mm

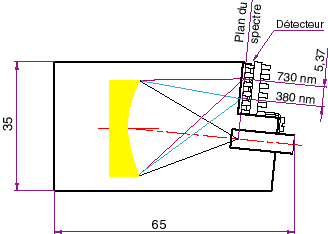

Schematics
