CP60 Series OEM Miniature Spectrograph

Overview

The CP60 miniature spectrograph is available with a choice of solid state array detectors. Designed for OEM applications, it will fit into small, hand-held, portable instruments or can take the place of larger spectrometers where space is at a premium.

Manufactured by HORIBA Scientific

Specifications

  • Focal Length:
    60 mm
  • Wavelength Range:
    430 - 730 nm
  • Dispersion:
    14 nm/mm
  • f/2
  • Spectrum Length:
    21 mm

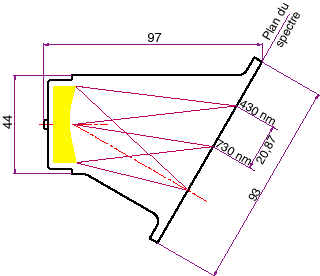

Schematics
