CPD40 Series OEM Miniature Spectrograph

Overview

The CPD40 miniature spectrograph is available with a choice of solid state array detectors. Designed for OEM applications, it will fit into small, hand-held, portable instruments or can take the place of larger spectrometers where space is at a premium. The CPD40 allows the use of one detector array with two input channels.

Manufactured by HORIBA Scientific

Specifications

  • Focal Length:
    40 mm
  • Wavelength Range:
    380nm-720nm
  • Dispersion:
    60 nm/mm
  • f/1.5
  • Spectrum Length:
    Two separate outputs each 5.4 mm

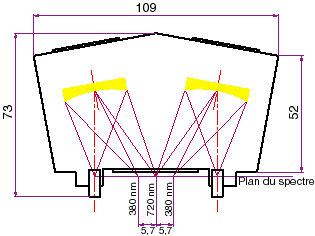

Schematics
