DeltaTime
Overview

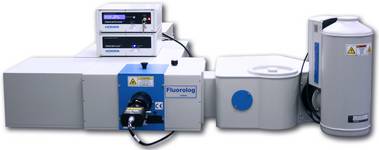

The DeltaTime TCSPC lifetime plug-in offers acquisition speed, flexibility, and affordability unavailable in any other hybrid fluorescence solution available. DeltaTime seamlessly integrates monochromators, polarizers, and other accessories with the widest array of sources (LEDs, laser diodes, supercontinuum lasers) and detectors (including NIR), providing lifetime coverage from 25ps to 1sec over wavelengths spanning the UV to NIR.
The culmination of over 40 years of lifetime experience, DeltaTime highlights include: the fastest sources (up to 100 MHz), the widest lifetime ranges (ps to sec), virtually unlimited configurability and advanced lifetime analysis software. DeltaTime is part of our Delta series...truly the next generation of fluorescence lifetime systems.
Features
- Fast…lifetime acquisition times from one millisecond
- Sensitive…uses single-photon counting detection
- Accurate…crystal locked timing circuits never require recalibration
- Wide range…resolves lifetimes from 25ps to 1 second
- Modular…easily reconfigured as measurement requirements evolve
- Compact…desktop dimensions
- Convenient…single USB 2.0 connection to PC
Manufactured by HORIBA
Specifications
DeltaPro-DD | DeltaPro-NL | |
|---|---|---|
Minimum lifetime | 25 ps with laser-diode source | 30 ps with laser-diode source |
Shortest acquisition time | 1 millisecond* | 100 milliseconds* |
Diode controller | DeltaDiode and SpectraLED | NanoLED and SpectraLED |
Repetition rates |
|
|
Prompt FWHM | <200 ps FWHM with PPD and laser diode | |
Dead time | 10 ns | |
Time ranges | 10 ns – 11 s | 100 ns–11 s |
Wavelength selection | Interchangeable filters (filters purchased separately from HORIBA or others) | |
Detector response | 250–650 nm standard; 250–850 nm and 300–900 nm optional | |
PC interface | USB 2.0. PC not included. Requires Windows® XP or Windows® 7, 32/64-bit English language ver. | |
System footprint | 75 cm * 45 cm nominal excluding PC (depending on options) | |
