Electrode Line Up for Water Quality Meters

Overview

General laboratory application

Protein,
high viscosity application

Precious,
trace amount sample

3-in-1 Electrode
9611-10D

3-in-1 Sleeve Electrode
9677-10D

3-in-1 Micro Electrode
9669-10D

Tap water,
pure water application

Non-glass electrode for food application, etc.

3-in-1 Plastic Electrode
9621-10D

ISFET Electrode
0030-10D

Features

ToupH electrode just got ToupHer!

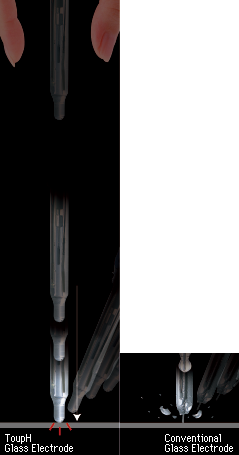

Enhanced durability of the glass membrane makes it four times stronger than the conventional ToupH electrode.

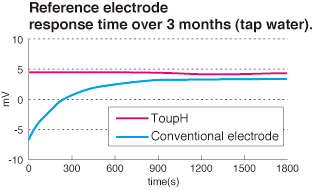

The patented silver ion trap technology improves response time. The response time is 40 times faster than the conventional electrodes.
With enhanced durability, the electrode is more easily maintained with a sponge or optional cleaning reagent.

Manufactured by HORIBA Advanced Techno

Specifications

• pH Electrode Line up

Combination electrode (3-in-1 electrode)

Model	Description	Temp.range (°C)	pH range	Part No.
9611-10D	Waterproof thick membrane type	0 ~ 80	0 ~ 14	9096001800
9677-10D	Protein, high viscosity type	0 ~ 60	0 ~ 14	9096002000
9678-10D	Thick Membrane Electrode	0 ~ 100	0 ~ 14	9003018000
9669-10D	Precious, trace amount sample type	0 ~ 60	0 ~ 14	9096001900
9621-10D	Plastic body	0 ~ 100 *2	0 ~ 14	9096001700
6366-10D	Standard type(ceramic)	0 ~ 100	0 ~ 14	9003011700
6367-10D	Sleeve *1	0 ~ 60	0 ~ 14	9003011800
6377-10D	For Low-conductivity water and non-aqueous solvents	0 ~ 60	0 ~ 14	9003014100
6378-10D	For test tubes *1	0 ~ 60	0 ~ 14	9003011900
6252-10D	For food analysis *1	0 ~ 60	0 ~ 12	9003013800

*1 Do not use this electrode with other electrodes, as it will interfere the measurement value.
*2 0-50°C when completely immersed.

Glass electrode

Model	Description	Temp.range (°C)	pH range	Part No.
1066A-10C	Standard type	0 ~ 100	0 ~ 14	9003012200
1076A-10C	For Low-conductivity water and non-aqueous solvents	0 ~ 100	0 ~ 14	9003014200
6961-15C	Small sample amount flow type	0 ~ 50	0 ~ 12	9003012400

Reference electrode

Model	Description	Temp.range (°C)	pH range	Part No.
2060A-10T	Standard type	0 ~ 100	-	9003012500
2660A-10T	Sleeve type	0 ~ 100	-	9003012600
2565A-10T	Double-junction type	0 ~ 100	-	9003012700

Combination electrode

Model	Description	Temp.range (°C)	pH range	Part No.
6066-10C	Standard	0 ~ 100	0 ~ 14	9003013400
6069-10C	For extra-thin test tubes	0 ~ 60	0 ~ 14	9003013500
6069MP-10C	ø3mm slim electrode	0 ~ 60	0 ~ 14	9003017900
6251-10C	Needle type	0 ~ 50	0 ~ 12	9003013600
6261-10C	Flat type	0 ~ 50	0 ~ 12	9003013700

ISFET electrode

Model	Description	Temp.range (°C)	pH range	Part No.
0030-10D	Needle type ISFET	0 ~ 60	0 ~ 14	9096002100

ORP electrode

Model	Description	Temp.range (°C)	pH range	Part No.
6861-10C	Platinum combination type	0 ~ 60	-	9003013100
3060-10C	Platinum single polarity type	0 ~ 60	-	9003013300
9300-10D	Platinum 3-in-1 type	0 ~ 60	-	9096000400

ISFET electrode

Model	Description	Temp.range (°C)	pH range	Part No.
4163-10T	For temperature compensation and measurement	0 ~ 100	-	9003013000

• Conductivity Electrode Line up

Immersion type

Cell constant m^-1(cm^-1)	Model	Range m^-1(cm^-1)	Samples req'd(ml)	Temp.range (°C)	Part No.
10 (0.1)	3551-10D	10mS ~ 1S (0.1mS ~ 10mS)	50	0 ~ 60	9056000800
100 (1)	9382-10D	0.1mS ~ 10S (1mS ~ 100mS)	20 ~ 30	0 ~ 80	9096000300
100 (1)	3552-10D	0.1mS ~ 10S (1mS ~ 100mS)	15	0 ~ 100	9056000900
1000 (10)	3553-10D	1mS ~ 100S (10mS ~ 1S)	50	0 ~ 60	9056001000

Flow type

Cell constant m^-1(cm^-1)	Model	Range m^-1(cm^-1)	Samples req'd(ml)	Temp.range (°C)	Part No.
10 (0.1)	3561-10D	10mS ~ 1S (0.1mS ~ 10mS)	10	0 ~ 60	9056001100
100 (1)	3562-10D	0.1mS ~ 10S (1mS ~ 100mS)	16	0 ~ 60	9056001200
1000 (10)	3573-10C	1mS ~ 100S (10mS ~ 1S)	4	0 ~ 60	9056001300
1000 (10)	3574-10C	1mS ~ 10S (10mS ~ 100mS)	0.25	0 ~ 60	9056001400

• Ion Electrode Line up

Please be aware of the hindering ion and pH range interference of ion electrodes.

Electrode name	Model	Measuring range	Applicable reference electrode	Part No.
Cyanide ion electrode	8001-10C	0.03 ~ 2,600 ppmCN^-	2060A•2565A	9003015500
Chloride ion electrode (Combination type) *	6560-10C	0.4 ~ 35,000 ppmCI^-	-	9003014500
Chloride ion electrode	8002-10C	0.4 ~ 35,000 ppmCI^-	2565A	9003015600
Sulfide ion electrode	8003-10C	0.3 ~ 32,000 ppmS^2-	2060A•2565A	9003015700
Iodide ion electrode	8004-10C	0.01 ~ 13,000 ppmI^-	2060A•2565A	9003015800
Bromide ion electrode	8005-10C	0.8 ~ 80,000 ppmBr^-	2565A	9003015900
Copper ion electrode	8006-10C	0.06 ~ 6,400 ppmCu²⁺	2565A	9003016000
Cadmium ion electrode	8007-10C	0.1 ~ 11,000 ppmCd²⁺	2060A•2565A	9003016100
Lead ion electrode	8008-10C	2 ~ 20,000 ppmPb²⁺	2565A	9003016200
Thiocyanate ion electrode	8009-10C	0.6 ~ 5,800 ppmSCN^-	2565A	9003016300
Fluoride ion electrode (Combination type) *	6561-10C	0.02 ~ 19,000 ppmF^-	-	9003014600
Fluoride ion electrode	8010-10C	0.02 ~ 19,000 ppmF^-	2060A•2565A	9003016400
Silver ion electrode	8011-10C	0.01 ~ 110,000 ppmAg⁺	2565A	9003016500
Ammonia electrode (Combination type) *	5002A-10C	0.1 ~ 1,000 ppmNH₃	-	9003016600
Sodium ion electrode	1512A-10C	2.3 ~ 230,000 ppmNa⁺	2565A	9003016700
Nitrate ion electrode (Combination type) *	6581-10C	0.62 ~ 62,000 ppmNO₃^-	-	9003014700
Nitrate ion electrode	8201-10C	0.62 ~ 62,000 ppmNO₃^-	2565A	9003016800
Potassium ion electrode (Combination type) *	6582-10C	0.04 ~ 39,000 ppmK⁺	-	9003014800
Potassium ion electrode	8202-10C	0.04 ~ 39,000 ppmK⁺	2565A	9003016900
Calcium ion electrode (Combination type) *	6583-10C	0.4 ~ 40,080 ppmCa²⁺	-	9003014900
Calcium ion electrode	8203-10C	0.4 ~ 40,080 ppmCa²⁺	2060A•2565A	9003017000
Chloride ion chip	7660	-	-	9003015000
Fluoride ion chip	7661	-	-	9003015100
Nitrate ion chip	7681	-	-	9003015200
Potassium ion chip	7682	-	-	9003015300
Calcium ion chip	7683	-	-	9003015400
Ammonia electrode membrane (6pcs)	membrane(NH₃)	-	-	9012001000

* Only combination type ion electrode can be used with the D-23.

• DO electrode / DO Tip Line up

Electrode	Lead length	Model	Specification	Temp.range (°C)	Part No.
Waterproof DO electrode	2m	9551-20D	Field immersible type	0 ~ 40	9096002300
Waterproof DO electrode	10m	9551-100D	Field immersible type	0 ~ 40	9096002400
DO electrode	1m	9520-10D	Laboratory use	0 ~ 45	9096000500
DO Tip	-	5401	Replacement electrode Tip for 9551	-	9033010000
DO Tip	-	7541	Replacement electrode Tip for 9520	-	9074000200
