Fuel Flow Meter FQ-2200CR
Overview
The FQ-2200CR Fuel Consumption Measurement System allows measuring fuel mass flow rate continuously in the range of 0.2 kg/h to 108 kg/h with high precision.
The FQ-2200CR can be applied to any engine and vehicle test stand used for R&D, quality management, and production; and is an important tool for the development of internal combustion engines.
Features
- High precision over the measuring range
- Diesel and gasoline, alcohol-based fuels up to 100%
- Integration into test automation system
- Data communication with 10 Hz
- User-friendly touch panel
- Easy setting of fuel pressure and temperature
Control Unit
Easy operation with a touch panel
A control unit with an operator touch panel directly integrated into the system ensures handling of the FQ-2200CR.This unit gives a quick and easy system overview and reports the current measurement data and parameter settings.A remote control option via various standard interfaces makes integration into test automation systems possible.

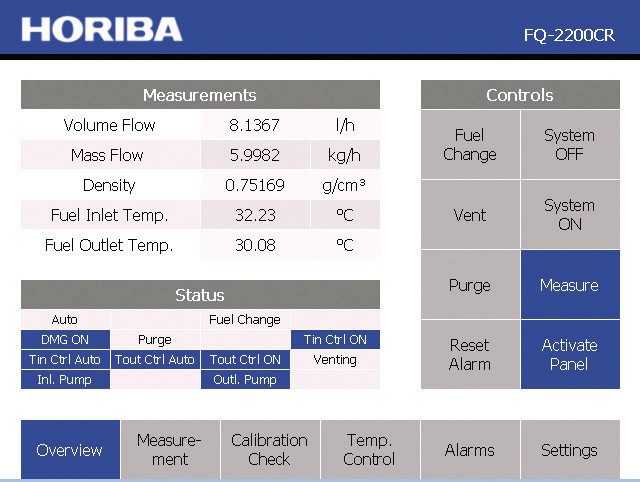

● Overview

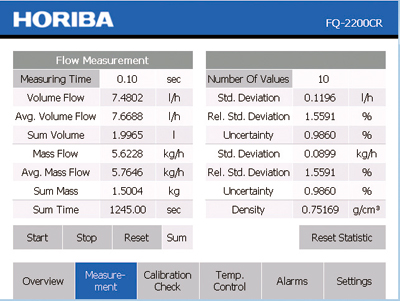

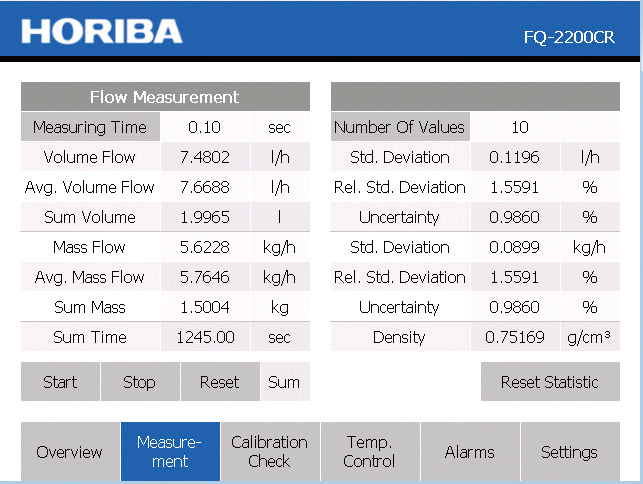

● Measurement

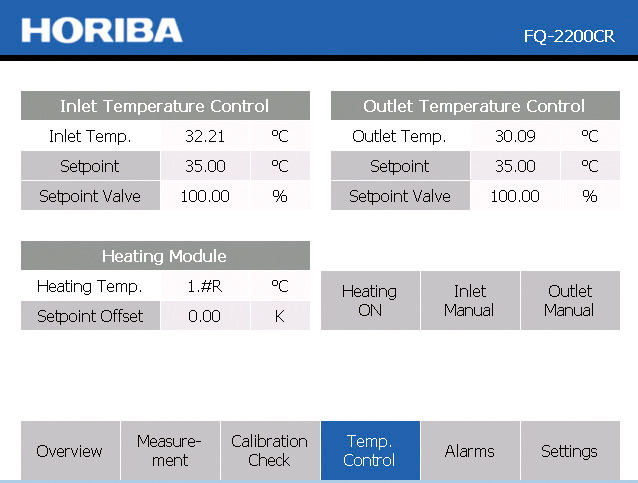

● Temperature control
Measuring Unit
- Using Coriolis meter, it realizes simultaneous monitoring of mass flow in a wide range of 0.2 kg/h to 108 kg/h with fuel density.
Fuel Conditioning Unit
- Integrated pumps and temperature control systems ensure a constant temperature level for measuring and for the engine fuel circuit.
- An optional pressure control modules enable the operator to adjust fuel supply pressure and return pressure.
- An optional heating module makes fuel temperature control possible: 5ºC to 40ºC higher than utility cooling water.
User-Friendly Functionality
- Easy fuel changing function is available with quick operation from the control touch panel.
- A venting module provides purging function for removing air bubbles in fuel and ensures accurate measurement results.
Manufactured by HORIBA
Specifications
Product overview
Measuring range | 0.2 kg/h～108 kg/h |
Fuel temperature control range | +5ºC to +40ºC of utility cooling water temperature |
Temperature control stability (in a stable state) | 0.05ºC |
Fuel outlet pressure control range | 30 kPa to 500 kPa |
Fuel return pressure control range | -50 kPa to 200 kPa |
Fuel circulation rate | 360 L/h as maximum |
Usable fuel | Diesel and gasoline, alcohol-based fuels up to 100% |
Dimensions and weight | 1150(W)×360(D)×1320(H) mm;Approx. 200 kg |
* FQ-2200CR is not an explosion-proof structure.
