H1034B
Overview
Drop the H1034B into your product and take data immediately. Each unit is pre-aligned at the factory and tested in accordance with your requirements, ensuring consistently high performance. Holographic grating, pioneered by JY, deliver performance not possible with other small designs. Ion-Etched gratings combine the advantages of holographic gratings with a high efficiency. Aberration-corrected concave gratings permit a one-piece opticsl design with excellent imaging properties.
Features
An entire spectrum can be scanned in less than two seconds.
F/#2.8 . High throughput
Resolution less than 1 nm
Over 1 million scans!
Multi-input imaging
Factory tested and aligned
185 to 1000 nm
Manufactured by HORIBA Scientific
Specifications
OPTICAL PERFORMANCE
- Wavelength range 185 to 1000 nm
- 100 µm x 4 mm slits
- Resolution 1 nm FWHM with
- F/# 2.8
- Grating clear aperture 34 mm x 34 mm
- Normalized dispersion
7.80 nm/mm at 200 nm
7.92 nm/mm at 500 nm
7.72 nm/mm at 800 nm
- Wavelength Accuracy ± 1 nm with linear fit

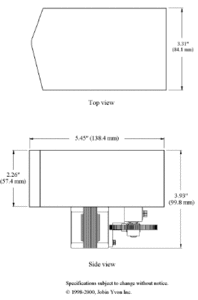

Schematics
