H30-UVL
Overview

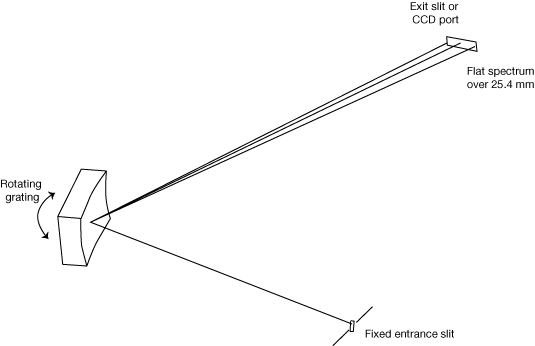

Completing our offer in FUV monochromators, the H30-UVL allows working either in monochromator mode using an exit slit or in flat field spectrograph mode using a CCD detector. His very compact and unique design, based on a unique single holographic aberration corrected toroïdal grating results in a very good image quality and an unmatched throughput.
Manufactured by HORIBA Scientific
Specifications
Optical design | Toroidal Grating Type IV (single optic) |
Focal length | 300 mm |
Aperture | f/6 |
Grating | 1200 gr/mm : 50-300 nm |
Optic coating | Pt or MgF2 optimized at 121 nm |
Deviation angle | 70° |
Dispersion | 2.3 nm/mm at 50 nm |
Drive | Fast worm drive |
Resolution | |
Vacuum | 10-6 mbar (HV version) 10-8 mbar (UHV version) |
Pumping flange | DN63 LF |
Entrance port | Micrometric slits (10 µm to 2 mm) |
Exit port | Micrometric slits (10 µm to 2 mm) or Adjustable CCD port |
Entrance flange | DN40 KF |
Exit flange | DN40 KF for slit version DN100CF for CCD version |
PC interface | USB2 |
Brochures
Accessories
Options
- UHV version
Applications:
- Tunable light source
- FUV Reflectometry/Absorption
- Plasma Physics Study
