LAQUA DS-70 Series

LAQUA DS-71 Meter: Click to enlarge
LAQUA DS-71 Meter, Electrode and Stand: Click to enlarge
LAQUA DS-72 Meter: Click to enlarge
LAQUA DS-72 Meter, Electrode and Stand: Click to enlarge
LAQUA DS-71A-S Meter Kit: Click to enlarge
LAQUA DS-72A-S Meter Kit: Click to enlarge

Overview

Conductivity Resistivity Salinity TDS
DS-71: PC PRT ID
DS-72: NAVI USB PC PRT ID Color LCD touch panel display USB/EP/JP

Features


LAQUA DS-70 series measures Conductivity, Resistivity, Salinity, TDS and Temperature simultaneously and the Model DS-72 complies with industrial pharmacopoeias standard (JIS, USP, EP, JP and CP).

The meters’ auto diagnostic function allows the user to make sure that the instruments will always give high performance and reliable measurements. Fully GLP/GMP compliant, the LAQUA can be connected to an external printer. To ensure traceability all results are recorded together with sample name, user ID and calibration information.

We offer a comprehensive range of conductivity electrodes adapted to all type of application and sample. Recognised for their stability and longevity, HORIBA’s electrodes provide accurate measurement in all conditions.

Click here to see our conductivity electrodes

LAQUA’s large capacitance touch screen panel:

  • Display easy to understand value and functions menus
  • Switch between digital real time graphs or analogue displays during measurement with just the flick of a finger
  • Full on-screen support on the meter via an electronic user guide with colour pictures that can be called up at any time, featuring problem solver guide for calibration or measurement

Functions

  • Easy navigation for main unit and electrode inspections (DS-72 only)
  • Full support for various country pharmaceutical pure water guidelines (USP/EP/JP/CP) (DS-72 only)
  • Customizable auto-hold function for calibration and measurement (DS-72 only)
  • Simultaneous connection to a GLP/GMP compatible and PC
  • Digital memory - maximum 2,000 sets of measurement data can be recorded (DS-71 - 999 sets)
  • USB-PC communication (DS-71/72) and USB memory (DS-72 only)
  • Multi-language support (Japanese, English, Chinese, Korean) (DS-72 only)
  • FDA 21 CFR Part11 (Please ask for quotation)



Meter Kits Available

DS-71A-S



The appearance of items in the picture are subject to change in each region.

Package Details:

  • DS-71 COND/RES/SAL/TDS Custom LCD Screen Meter
  • 3552-10D glass conductivity electrode
  • 503-S - Conductivity 84 uS, 1413 uS, 12.88 mS, 111.8 mS standard solutions (250ml each)
  • Electrode stand

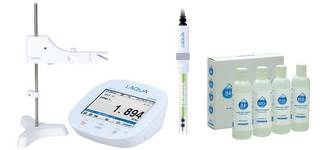

DS-72A-S



The appearance of items in the picture are subject to change in each region.

Package Details:

  • DS-72 COND/RES/SAL/TDS colour Touch Screen Meter
  • 3552-10D glass conductivity electrode
  • 503-S - Conductivity 84 uS, 1413 uS, 12.88 mS, 111.8 mS standard solutions (250ml each)
  • Electrode stand



Manufactured by HORIBA Advanced Techno

Specifications

DS-71

DS-72

Conductivity

Measurement method

2 AC bipolar method

Measurement range
(Display range)

Cell constant 100 m-1：0.000 mS/m~19.99 S/m
Cell constant 10 m-1：0.0 μS/m~1.999 S/m
Cell constant 1000m-1：0.00 mS/m~199.9 S/m

Resolution

0.05% of full scale

Repeatability

±0.5% ±1 digit

Change unit

○

○

Distilled water temperature conversion

○

○

Periodical check

×

○

P/EP/USP/CP Pharmaceutical water aplication

×

○

Salinity

Measurement method

Conversion from conductivity value

Measurement range
(Display range)

0.00～80.00 PPT(0.000%～8.000%)

Resolution

0.01 PPT(0.001%)

Salt concentration calibration

○

○

Resistivity

Measurement method

Conversion from conductivity value

Measurement range
(Display range)

Cell constant 100 m-1：0.00 Ω・m~199.9 kΩ・m
Cell constant 10 m-1：0.0 Ω・m~1.999 MΩ・m
Cell constant 1000 m-1：0.000 Ω・m~19.99 kΩ・m

Resolution

0.05% F.S.

Repeatability

±0.5%F.S.±1 digit

TDS

Measurement method

Conversion from conductivity value

Measurement range
(Display range)

0.01 mg/L ～100 g/L

0.01 mg/L ～1000 g/L

Resolution

0.01 mg/L

Temperature

Measurement range

0.0～100.0℃(-30.0～130.0℃）

Resolution

0.1℃

Repeatability

±0.1℃±1 digit

Input/output

Input(CH)

1

1

USB peripherals (Communication with PC)*1

○

○

USB host（USB memory)

×

○

RS-232C(Printer/PC)

○

○

Analog out put

×

○

Data

Memory number

999

2,000

Interval memory

○

○

ID input

○

○

Data search

×

○

Display

Display

Custom LCD

Color graphic LCD with capacitive Touch Panel

Multilanguage display

×

Japanese/English
/Chinese/Korean

Function

Navigation function

×

○

User gide

×

○

Graf display

×

○

Printer connectivity（GLP/GMP）

○

○

Custom printing function

×

○

Temperature compensation（Auto/manual)

○

○

AutoHold function

○

○

AutoHold setting

×

○

Register operator

×

○

Security(pass word）

○

○

Version up function

○

○

Ambient temperature

0 ℃ ～ 45℃

Power

AC adaptor 100 ～ 240 V 50/60 Hz

Dimensions

170(W)×174(D)×73(H)mm(Excluding electrode stand and AC adaptor)

Power consumption

Approx. 0.7 VA

Approx. 9.8 VA

Mass of main unit

Approx .500 g

Approx. 700 g

*1 USB cable sold separately. Software can be download by web registration.

Brochures

LAQUA Benchtop Water Quality Meters F-70 / DS-70 Series

Electrodes Accessories

Downloads

Instruction Manual DS-71

Instruction Manual DS-72

Quick manual DS-71

Quick manual DS-72


The materials accessible from this website were current at the time of posting.
Please note that the material may differ from that provided with the product.

Accessories

Model No

Description

Item

503-S

Conductivity Standard Solution Kit

250ml each

  • 84 uS/cm Conductivity Solution at 25°C
  • 1413 uS/cm Conductivity Solution at 25°C
  • 12.88 mS/cm Conductivity Solution at 25°C
  • 111.8 mS/cm Conductivity Solution at 25°C

500-21

84 uS/cm Conductivity Solution at 25°C 500ml



500-22

1413 uS/cm Conductivity Solution at 25°C 500ml



500-23

12.88 mS/cm Conductivity Solution at 25°C 500ml



500-24

111.8 mS/cm Conductivity Solution at 25°C 500ml
