LAQUA F-74
Overview
Features
LAQUA’s large capacitance touch screen panel:
- Display easy to understand value and functions menus
- Switch between digital real time graphs or analogue displays during measurement with just the flick of a finger
- Full on-screen support on the meter via an electronic user guide with colour pictures that can be called up at any time, featuring problem solver guide for calibration or measurement
Functions
- Easy navigation for main unit and electrode inspections
- Two channels can be displayed simultaneously
- Periodic inspection mode JIS/Pharmacopeias/Digital Simulator
- Full support for various country pharmaceutical pure water guidelines
- Customizable auto-hold function for calibration and measurement
- Simultaneous connection to a GLP/GMP compatible and PC
- Digital memory - maximum 2,000 sets of measurement data can be recorded
- USB-PC communication and USB memory
- Multi-language support (Japanese, English, Chinese, Korean)
Meter Kit Available

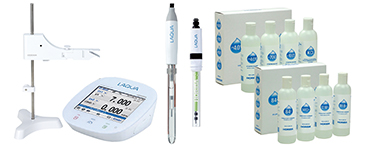

F-74A-S
The appearance of items in the picture are subject to change in each region.
Package Details:
- LAQUA F-74 pH/ORP/Ion/Cond/Res/Sal/TDS colour touch screen meter
- 9615S-10D Standard ToupH glass-body, refillable pH electrode with integrated temperature sensor
- 3552-10D Platinum/Platinum black, glass-body, k=1.0 conductivity electrode with integrated temperature sensor
- 101-SU: pH 4.01 / 7.00 / 10.01 buffers & 3.33 M KCl reference electrolyte
- 103-S: Conductivity 84 uS, 1413 uS, 12.88 mS, 111.8 mS standard solutions
- Electrode stand
Manufactured by HORIBA Advanced Techno
Specifications
| LAQUA F-74 | ||
|---|---|---|---|
pH | Measurement method | Glass electrode method | |
Measurement range | pH 0.000～14.000 | ||
Display range | pH -2.000～20.000 | ||
Resolution | 0.01/0.001 pH | ||
Auto range select | ○ | ||
Repeatability | ±0.001 pH±1 digit | ||
pH calibration point | 5 | ||
Repeatability check | ○ | ||
Alarm limit of calibration | ○ | ||
Periodical check | ○ | ||
mV(ORP) | Measurement range | ±1999.9 mV | |
Resolution | 0.1 mV | ||
Repeatability | ±0.1 mV±1 digit | ||
Temperature | Measurement range | 0.0～100.0℃ (-30.0～130.0℃） | |
Resolution | 0.1℃ | ||
Repeatability | ±0.1℃±1 digit | ||
ION | Measurement method | Ion electrode method | |
Measurement range | 0.00 μg/L～999 g/L (mol/L) | ||
Resolution | Valid numbers 3 digits | ||
Repeatability | ±0.5% ±1 digit | ||
Periodical check | ○ | ||
Calibration curve point | 5 | ||
Addition method measurement | ○ | ||
Conductivity | Measurement method | 2 AC bipolar method | |
Measurement range(Display range) | Cell constant 100 m-1：0.000 mS/m〜19.99 S/m | ||
Resolution | 0.05% of full scale | ||
Repeatability | ±0.5% ±1 digit | ||
Change unit | ○ | ||
Distilled water temperature conversion | ○ | ||
Periodical check | ○ | ||
JP/EP/USP/CP Pharmaceutical water aplication | ○ | ||
Salinity | Measurement method | Conversion from conductivity value | |
Measurement range(Display range) | 0.00～80.00 PPT (0.000%～8.000%) | ||
Resolution | 0.01 PPT (0.001%) | ||
Salt concentration calibration | ○ | ||
Resistivity | Measurement method | Conversion from conductivity value | |
Measurement range(Display range) | Cell constant 100 m-1：0.00 Ω・m〜199.9 kΩ・m | ||
Resolution | 0.05% F.S. | ||
Repeatability | ±0.5%F.S.±1 digit | ||
TDS | Measurement method | Conversion from conductivity value | |
Measurement range(Display range) | 0.01 mg/L ～1000 g/L | ||
Resolution | 0.01 mg/L | ||
Input/output | Input(CH) | 2 | |
USB peripherals | ○ | ||
USB host（USB memory) | ○ | ||
RS-232C(Printer/PC) | ○ | ||
Analog out put | ○ | ||
Data | Memory number | 2,000 | |
Interval memory | ○ | ||
ID input | ○ | ||
Data search | ○ | ||
Display | Display | Color graphic LCD with capacitive Touch Panel | |
Dual component display | ○ | ||
Multilanguage display | Japanese/English/Chinese/Korean | ||
Function | Navigation function | ○ | |
User gide | ○ | ||
Graf display | ○ | ||
Printer connectivity（GLP/GMP） | ○ | ||
Custom printing function | ○ | ||
temperature compensation（Auto/manual) | ○ | ||
AutoHold function | ○ | ||
AutoHold setting | ○ | ||
Stability function (pH/ION) | ○ | ||
Register operator | ○ | ||
Security(pass word） | ○ | ||
Version up function | ○ | ||
Ambient temperature | 0 ℃ ～ 45℃ | ||
Power | AC adaptor 100 ～ 240 V 50/60 Hz | ||
Dimensions | 170(W)×174(D)×73(H)mm(Excluding electrode stand and AC adaptor) | ||
Power consumption | Approx. 9.8 VA | ||
Mass of main unit | Approx .700 g | ||
*1 USB cable sold separately. Software can be download by web registration.
