LAQUA PH1300
Overview
Features
- Automatic pH calibration up to 5 points using USA, NIST, or Custom buffers
- Switchable pH resolutions - 0.1, 0.01, 0.001 pH
- Offset and slope display
- Ion calibration up to 5 points
- Automatic / Manual temperature compensation and temperature calibration function
- Auto-Hold / Auto-Stable measurement
- Auto log data; Built-in memory can store up to 999 data
- Real-time clock and date / time stamping
- Auto shut-off (programmable: 1 to 30 minutes)
- Calibration alarm (programmable: 1 to 400 days)
- Custom black and white static LCD
- RS232 and USB outputs for connecting to a GLP/GMP compatible printer or computer
- Security (password setting)
- 2 years meter warranty

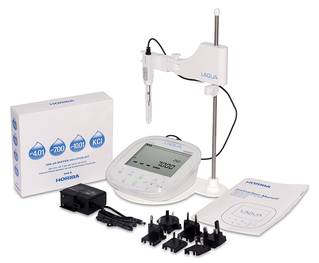

Meter Kit Available
PH1300-S
The appearance of items in the picture are subject to change in each region.
Package Details:
- LAQUA PH1300 pH/ORP/Ion/Temp custom black and white static LCD meter
- Protection cover, integrated electrode stand, power adaptor with 6 plugs (US, EU, UK, ANZ, Korea, China)
- 9615S-10D ToupH glass-body, refillable pH electrode with integrated temperature sensor
- 101-SU: pH 4.01 / 7.00 / 10.01 buffers & 3.33 M KCl reference electrolyte
- Instruction manual
PH1300-SN: Kit with 101-S (pH 4.01 / 6.86 / 9.18 NIST buffers & 3.33M KCl) is available upon request.
Manufactured by HORIBA Advanced Techno
Specifications
Model | LAQUA PH1300 pH/ORP/Ion/Temperature |
|---|---|
pH Range | -2.000 to 20.000 pH |
Resolution | 0.1, 0.01, 0.001 pH |
Accuracy | ± 0.003 pH |
Calibration Points | Up to 5 |
Buffer Options | USA, NIST, Custom |
ORP Range | ± 2000 mV |
Resolution | 0.1 mV |
Accuracy | ± 0.2 mV |
Ion Range | 0.000 µg/L to 9999 g/L |
Resolution | 4 significant digits |
Accuracy | ±0.3% F.S. |
Calibration Points | Up to 5 |
Temperature Range | -30.0 to 130.0°C |
Resolution | 0.1°C |
Accuracy | ± 0.4°C |
Calibration Option | Yes |
Memory Data | 999 |
Auto Log Data | Yes |
Real-time Clock | Yes |
Date / Time Stamp | Yes |
Auto-Shut Off | Yes (Programmable: 1 to 30 minutes) |
Auto-Hold / Auto-Stable | Yes |
Offset / Slope Display | Yes (Independent acid and alkaline slopes depending on calibration) |
Electrode Status | On screen display |
Diagnostic Messages | Yes |
Calibration Alarm | Yes (Programmable: 1 to 400 days) |
Display | Custom black and white static LCD |
Inputs | BNC, phono, DC sockets |
Output | RS232, USB |
Power Requirement | AC adaptor, 100-240V, 50/60Hz |
Weight | 500g |
Dimensions | 170(L) x 174(D) x 73(H) mm |
