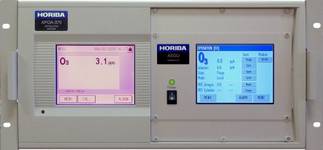

OZGU-370SE
Overview
The calibration unit OZGU-370SE is designed for the dynamic and continual manufacture of zero and span gas to perform all ongoing quality control procedures according EN 14625. Transferstandard OZGU-370 is based on well proven Analyzer APOA-370 with integrated span gas generation unit (ASGU-370 Electronic). This Span gas unit is able to provide ozone gas to an 2nd Ozone monitor. The actual concentration is measured by the type approved measurement cell of the transfer standard. The measured concentration is used as set point for the 2nd Ozone analyzer (measurement unit to be calibrated).
Features
- Multipoint calibration acc. EN 14625
- Comfortable operation via 2 big illuminated Touch-Screen-Displays or remote software enables easy external handling
- High flexibility through free definable span points (up to 20)
- High flexibility through free definable cycles (e.g. Lack of fit)
- High flexibility through free definable sequences (stringing cycles together)
- Programmable timer allows time delayed start of calibration process
- Internal data logger (option) stores raw values from calibration procedure (set value and actual value, status) for reporting with included evaluation software
Manufactured by HORIBA
Specifications
Technical Specification (Analyzer) | |
Refer to APOA-370, Ozone Analyzer | |
Technical Specification (Span Gas Generator Unit) | |
Principle | UV irradiation |
Application | Quality control in Station |
Ozone generation by UV Irradiation | Intensity controlled mercury lamp in a oven with a heater and Pt 100 sensor (Temperature: 70C°) |
Zero Air Supply | External cartridge (mounted on unit) |
Definable span gas concentrations | 20 |
Selectable cycles | 8 |
Programmables sequence | yes |
Programmable timer | yes |
Evaluation software | Option |
Datalogger | Option |
Indication | LCD touch screen display with simultaneous indication of information, relevant for calibration |
Operation | Manual (Touch Screen Display) |
Power | 230VAC, 50Hz |
Dimension | 430mm(W), 550mm(D), 221mm(H) |
Mass | 17kg |
