PoliSpectra® M116 MultiTrack Spectrometer

PoliSpectra M116 MultiTrack Spectrometer

Overview

HORIBA designs and manufactures a large range of custom OEM fiber-coupled, multi-spectra spectrometers capable of simultaneous measurement of up to 96 fiber channels. Utilizing a concentric imaging spectrometer with a broadband spectral range and a customized fiber bundle, the HORIBA OEM multifiber spectrometers provide excellent imaging quality with minimum crosstalk.

The Polispectra® MultiTrack systems feature high throughput/ sensitivity and a 2-D Scientific back-illuminated CMOS sensor which can be configured with 8, 16 or 32 fiber input channels for simultaneous acquisition of UV-NIR spectra.

With an optional Nitrogen purge, the System can be configured for low UV. Additionally the high QE sCMOS sensor and an integrated order sorting filter allow wavelength coverage beyond 1μm.

For OEM Industrial Applications

  • Multitrack Spectroscopy
  • From fluorescence to reflectance
  • Some examples from semiconductor applications to life sciences:

    • Quality Control
    • Light Source calibration monitoring
    • Plasma Monitoring
    • Blood/DNA multisampling

Features

  • Simultaneous measurement - Up to 32 fiber channels
  • Extended UV capability below 200 nm
  • High spectral and spatial resolution combined with high throughput
  • Minimal cross-talk
  • High speed and low noise sCMOS 2048 pixels sensor
  • USB 3 Interface
  • Stable and robust

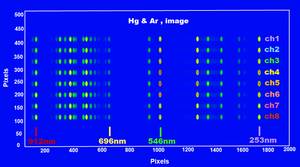

Image of 8-channel Fiber Bundle Illuminated with Hg and Ar Lamp

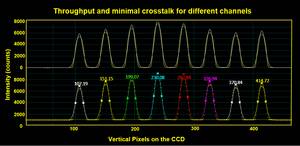

Throughput Differences and Crosstalk between Input Fiber Channels

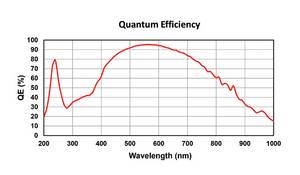

Scientific CMOS Back-Illuminated Sensor Quantum Efficiency

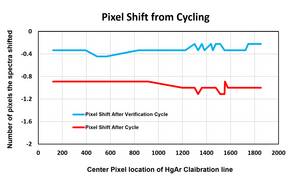

Thermal stability study cycling from -20ºC to 50ºC



Hyperspectral Imaging Distortions: Keystone and Smile

View Hyperspectral Imaging Distortions: Keystone and Smile

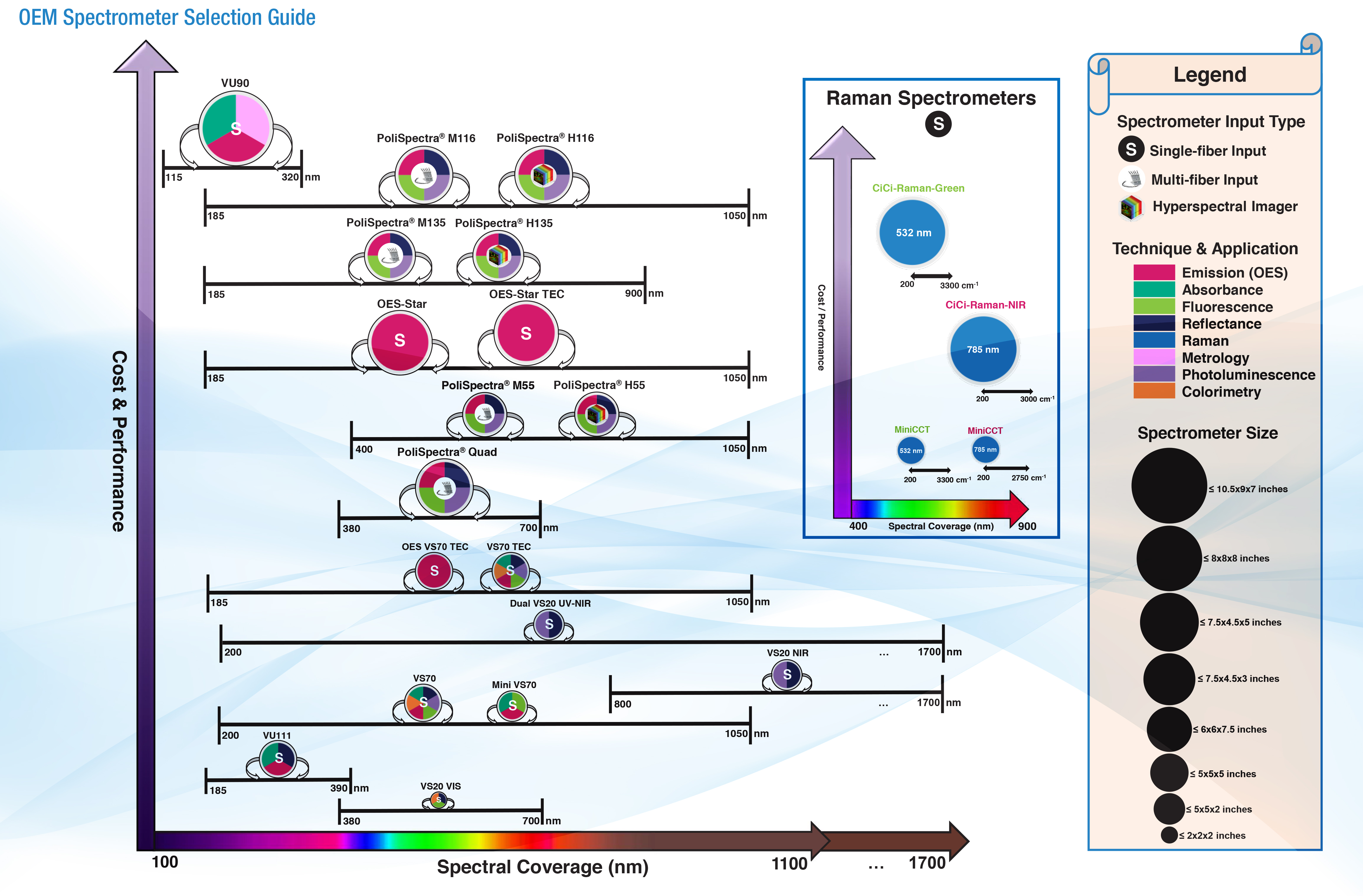

OEM Spectrometer Selection Guide

Manufactured by HORIBA Scientific

Specifications

8-channel Spectrometer Specifications

Spectral Coverage

185 - 1050 nm (configurable based on customer’s need)

Spectrometer Input

8 channel, φ200 μm core fibers with φ220 μm clad, separated by a φ220 μm dead fiber

Spectral Resolution

1 nm (22 μm slit width) and up depending on fiber core and slit sizes

Spectral Dispersion

34.6 nm/mm; 0.38 nm/pixel

Crosstalk (Adjacent Channel)*

< 0.1% (measured @ 600 nm)

Crosstalk (Non-adjacent Channel)*

< 0.1% (measured @ 600 nm)

Focal Length

116 mm

F/#

F/2.3

Smile and Keystone

1.5 pixel (typical)

Stray Light

< 0.1% (typical)

Wavelength Accuracy

0.1 nm (using 8 channel wavelength calibration)

Software

LabVIEW™ acquisition software for initial evaluation (DLLs provided for software integration)

16-channel and 32-channel Spectrometer Specifications

Spectral Coverage

185 - 1050 nm (configurable based on customer’s need)

Spectrometer Input

16 channel, φ100 μm core fibers with φ110 μm clad
32 channel, φ70 μm core fibers with φ77 μm clad

Spectral Resolution

1 nm and up depending on fiber core size

Spectral Dispersion

34.6 nm/mm; 0.38 nm/pixel

Focal Length

116 mm

F/#

F/2.3

Smile and Keystone

1.5 pixel (typical)

Stray Light

< 0.1% (typical)

Wavelength Accuracy

0.1 nm (using 32 channel wavelength calibration)

Software

LabVIEW™ acquisition software for initial evaluation (DLLs provided for software integration)


Specifications for Scientific Back-Illuminated CMOS Image Sensor with High Speed Electronics

Detector Model


sCMOS BI sensor with electronic rolling shutter (All the parameters are specified at
normal room temperature of 25º C unless otherwise noted)

Sensor Format

2048 x 512

CMOS Pixel Size

11 x 11 μm

CMOS Height

5.6 mm

CMOS QE

The peak QE is 77% at 275 nm and 95% at 560 nm (refer to graphs below)

Thermoelectric Cooling

No, Uncooled

Frame Rate

94 fps (HDR mode), 180 fps (STD mode) on 2D sCMOS sensor

Full Well Capacity

 >93 000 e¯/pixel (Typical)

Communication

 USB 3

Readout Noise

1.7 e¯ (typical)

Digitization

16-bit ADC

Dynamic Range (HDR mode)

 > 93 dB

Non-linearity (measured on each system)

<1.8% (maximum) at low gain

<0.9% (maximum) at high gain

Environmental Conditions


Operating temperature 15°C to 40°C ambient;
Relative humidity <70% (non-condensing); Storage temperature -25°C to 45°C

Power requirements
AC/DC power supply (provided)

90-264 VAC, 47–63 Hz
