TGM1200
Overview

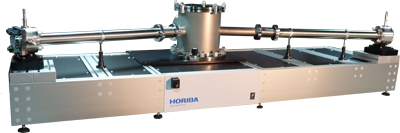

Based on the first VUV instrument in the world designed around a toroïdal aberration corrected grating (LHT30, HORIBA JOBIN YVON patent), the TGM (Toroidal Grating Monochromator) series monochromators covers the whole VUV wavelength range from 10 to 400 nm. The wavelength selection is done by grating rotation, slits remaining fixed which is particularly useful when used as a tunable light source. Thanks to its original optical design using a toroïdal grating in grazing incidence, the TGM series monochromators is a low aberration monochromator with an unmatched throughput.
Manufactured by HORIBA Scientific
Specifications
Monochromator with 1000 mm focal length to cover the 12.5-400 nm spectral range.

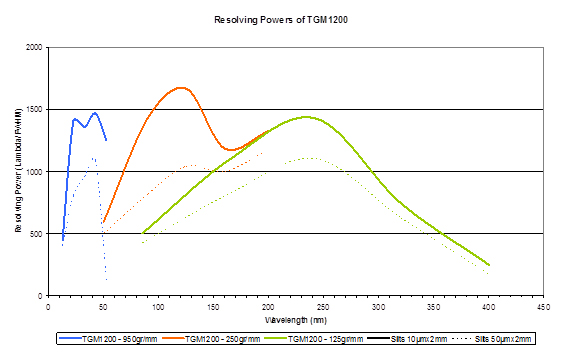

Optical design | Toroïdal VLS Grating (single optic) |
Focal length | 1000 mm |
Aperture | f/32 |
Gratings | 950 gr/mm : 12.5-52.5 nm 250 gr/mm : 50-200 nm 125 gr/mm : 85-400 nm |
Optic coating | Pt or Au |
Deviation angle | 146° |
Dispersion | 950 gr/mm : 0.3 nm/mm at 12.5 nm 250 gr/mm : 1.1 nm/mm at 50 nm 125 gr/mm : 2.1 nm/mm at 85 nm |
Drive | Sine arm |
Vacuum | 10-6 mbar (HV version) 10-8 mbar (UHV version) |
Pumping flange | DN100 LF |
Entrance/exit port | Micrometric slits (10 µm to 2 mm) |
Entrance/exit flange | DN40 KF |
PC interface | RS232 – USB2 |
Brochures
Accessories
Options
- UHV version
- Dual grating slide for grating selection under vacuum
