Industrial resistivity meter HE-480R(W)

Overview

The HE-480R industrial resistivity meter features the high-precision temperature compensation function.
Its high-performance temperature compensation makes it ideal for sequential monitoring of ultra-pure water used in manufacturing processes in the semiconductor field, and many other fields, including the areas of electrical goods, foods and medicines. The measurement range is from 0 to 100.0 MΩ・cm.

Features

High-precision temperature compensation
The temperature compensation element used is a platinum resistance thermometer (Pt 1000 Ω).
Freely adjustable standard temperature
You can set the standard temperature for temperature compensation to a value of your choice, allowing it to meet the conditions you require, for processes such as measuring warm deionized water.
We make use of a full range of correction equipment
Sensors are inspected prior to dispatch using correction equipment with ensured traceability. We have also put in place an after-sales support service, including on-site correction, and performing validation, for example by issuing correction certificates.
Uses lead-free solder
To reduce the burden on the environment, lead-free solder has been used to mount the components on the printed circuit board.

Manufactured by HORIBA Advanced Techno

Specifications

Product name	Industrial resistance meter
Model	HE-480R
Measurement method	Electrode type (2-electrode method)
Cell constant	0.01 / cm
Temperature sensor specifications	Platinum resistance 1000 Ω / 0 °C
Measuring range	Measurement unit	kΩ·m	0 to 2.00	0 to 20.0	0 to 200.0	0 to 1000 *
	Measurement unit	MΩ·cm	0 to 0.200	0 to 2.00	0 to 20.00	0 to 100.0 *
	*: Measurable without temperature compensation
	Temperature: 0 °C to 100 °C (Select your desired decimal point from 0, 1, and 2 digits.)
Repeatability Within	± 0.5 % of the full scale (in equivalent input)
Linearity Within	± 0.5 % of the full scale (in equivalent input)
Transmission output	4 mA to 20 mA DC: input / output isolated type Maximum load resistance: 900 Ω Transmission output range: Freely selectable within the measurement range
Contact output	Outputs: 2 points Alarm contact output (R1 and R2) Contact type: relay contact, SPDT (1c) Contact rating: 240 V AC, 3 A and 30 V DC, 3 A (resistance load) Contact function: selectable from upper / lower limit operation (ON / OFF control), alarm, and maintenance.
Transmission output hold feature	Previous value hold Optional value hold Continuous Selectable from the above (However, only the previous value hold is available in the maintenance Mode.)
Self-diagnosis function	Sensor diagnosis Out of the measurement range A/D converter scale over Converter error
Temperature compensation	Based on the temperature characteristics of extra deionized water (reference temperature: 25 °C) Based on the reference temperature and user-defined temperature coefficient (reference temperature: 5 °C to 95 °C) No temperature compensation
Temperature - compensated range	0 °C to 100 °C
Power supply	Rated voltage 100 V to 240 V AC, 50 / 60 Hz, 10 VA (max.)
Structure	Indoor-use panel installation type Panel: IP65 dust and water proof structure
Protective structure	Panel: IP65 (IEC60529, JIS C0920)
Conforming standards	CE Marking FCC Rule

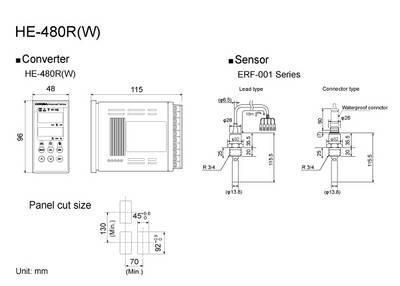

External dimensions	48 (W) mm x 96 (H) mm x 115 (D) mm Case depth: approx. 105 mm (when panel-mounted)
Mass	Approx. 400 g
Compatible sensors	ERF-series, cell constant 0.01 / cm
