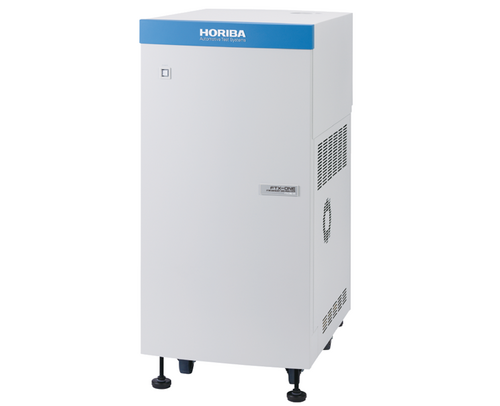

FTX-ONE-CL

FTIR Exhaust Gas Analyzer Dilute Measurement Type

The world's smallest class*¹ device that accurately measures up to 28 components such as nitrogen compounds, aldehydes and alcohol in engine diluted exhaust gas.

* According to our research in May 2018

Segment: Automotive
Produktionsfirma: HORIBA, Ltd.

Fast Response and Compact Size FTIR Analyzer for the Simultaneous Measurement of Multiple Components of Engine Exhaust Gas

Offers a 5Hz sampling rate and simultaneously measure the concentrations of multiple components including NH3, CH4 and CO2, engine diluted exhaust gas using the Fourier Transform Infrared (FTIR) method in combination with multivariate analysis algorithm.

Applications

Latest Regulations
・Measurements compliant with the latest US EPA regulations*: LDV Tier 3 regulation N2O certification / NMOG certification (NMOG is NG vehicle only), Stationary engine VOC regulation NMNEHC*5 certification (NG engine only) is possible.
・GTR No.15 compliant measurement*: GTR No.15 (Global Unified Technical Regulations for LDV Exhaust Gas Testing) Compatible with measurement methods such as HCHO, C2H5OH, N2O, etc.
・Engine / automobile development for Euro 7*:For R & D applications in anticipation of EU LDV next regulations (measurement of HCHO, C2H5OH, N2O, etc.)

* Please contact our sales staff for details.  ** NMNEHC is an abbreviation for non-methane non-ethane hydrocarbon.



Features

Dilution measurement and mass calculation by high-precision measurement
Mass calculation is possible by evaluation in combination with a constant volume dilution sampling device and a test automation system.

Low Sampling Flow Rat
Minimize bag line sampling flow and easily integrate into existing systems.

Compact Design
Approx. 1/2 the installation area and weight.* Improved freedom of layout and maintainability in the lab.

* At the size of the footprint

Outline

 FTX-ONE-CL
Measurement targetExhaust gas from internal combustion engine (Dilute measurement)
Target components*1Max. 28 components
Target components sets*2Standard set : Gasoline / Diesel vehicle
CNG set
PrincipleFourier Transform Infrared (FTIR)
Sampling line temperature113 °C ± 3 °C
Sampling gas flow rateContinuous line: Approx. 3.5 L/min
Bag line: Approx. 1.0 L/min
Operating environmentAmbient temperature 5 - 40 °C
Ambient humidity: less than 80 % relative humidity (non condensing)
Power requirements*3Approx. 2.8 kVA as MAX.,
Approx. 2.2 kVA at stable state
Dimensions*4438(W) × 765(D) × 950(H) mm
Mass*4Approx.160 kg

*1:Select when ordering from the “Measuring Components and Ranges” table
*2:Standard combination of components and ranges, specified at time of order
*3:With heated filter, heated hose (15 m)
*4:Excluding protrusions

Measuring Components and Ranges*1

ComponentsStandard
CO0-100ppm
0-500ppm
0-2500ppm
0-1 vol%
0-5 vol%
CO20-5000ppm
0-2 vol%
0-10 vol%
NO0-100ppm
0-500ppm
0-2500ppm
NO20-100ppm
N2O0-20ppm
0-100ppm
H2O0-15 vol%
NH30-100ppm
0-500ppm
SO20-100ppm
HCHO*20-50ppm
HCOOH0-50ppm
CH3OH0-100ppm
C2H5OH0-50ppm
0-100ppm
CH3CHO0-50ppm
CH40-250ppm
C2H40-100ppm
C2H60-100ppm
1,3-C4H60-100ppm
iso-C4H80-100ppm
C6H60-250ppm
C7H80-250ppm
NOx / HC sumSum

*1: The following are optional: Add other components (methanol, ethanol, acetaldehyde, MTBE, DME, acetone and acetic acid), to interchange other components and to change ranges. Please contact HORIBA for optional arrangements.
*2: Reference component
