XGT-5000 非常适合分析考古标本和博物馆物品。
对尼泊尔手稿中的彩色插图进行了分析，以更全面地了解用于获得特定色调的颜料类型。 由于 X 射线的穿透性，不仅可以探测最顶层的颜料，还可以探测那些用于底涂层的颜料。

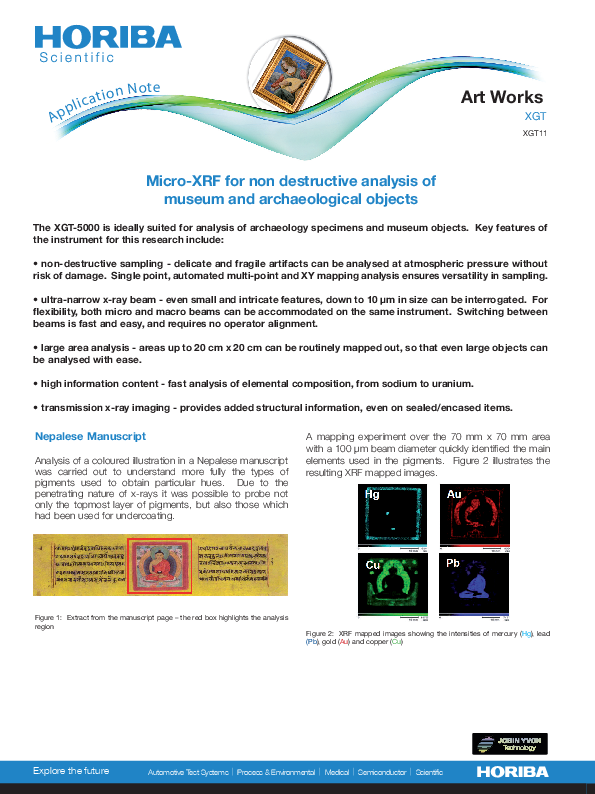

The XGT-5000 is ideally suited for analysis of archaeology specimens and museum objects. Key features of the instrument for this research include:
- non-destructive sampling - delicate and fragile artifacts can be analysed at atmospheric pressure without risk of damage. Single point, automated multi-point and XY mapping analysis ensures versatility in sampling.
- ultra-narrow x-ray beam - even small and intricate features, down to 10 μm in size can be interrogated. For flexibility, both micro and macro beams can be accommodated on the same instrument. Switching between beams is fast and easy, and requires no operator alignment.
- large area analysis - areas up to 20 cm x 20 cm can be routinely mapped out, so that even large objects can be analysed with ease.
- high information content - fast analysis of elemental composition, from sodium to uranium.
- transmission x-ray imaging - provides added structural information, even on sealed/encased items.
