Fuel Flow Meter FQ-3100DP

Overview

The FQ-3100DP fuel flow measurement system offers a highly precise method of measuring various fuel types for engines of up to 700 kW. The unit has a unique measuring range due to the DP sensor, which allows for a highly accurate measurement, even at very low consumption rates. In addition, the data transmission rate of 100 Hz enables highly dynamic measurements. These features make the fuel flow measurement system perfectly suited for demanding research and development applications, including testing of small engines (incl. single-cylinder research engines) and exploring lowest fuel consumption.

Features

Measurement of various fuel types
Measuring range from 0.2 l/h to 400 l/h (300 kg/h)
Temperature control range from -30°C to 80°C
Data communication with up to 100 Hz
Continuous evaluation of statistical characteristics

KEY BENEFITS
Continuous Fuel Flow Measurement

The FQ-3100DP fuel flow measurement system differentiates itself from similar systems with its highly precise DP sensor which offers a measuring range of 1:1000. This, in combination with fuel conditioning mechanisms and the optional integrated plausibility check module, ensures highly precise, continuous and repeatable fuel measurement tests. Additionally, available options such as temperature modules and the remote-controlled pressure regulator, maximize your testing flexibility.

SIMPLE

Automated ventilation and purge function
Automated fuel exchange
Optional integrated plausibility check module

PRECISE

High precision, even at low consumption levels
High repeatability
Unique measuring range of DP sensor

FLEXIBLE

Standard interfaces for easy automation integration
Wide range of optional modules

Manufactured by HORIBA

Specifications

Measuring range	0.2...150 l/h (0.15...112.5 kg/h) 0.2...220 l/h (0.15...165 kg/h) 0.5...300 l/h (0.375...225 kg/h) 0.5...400 l/h (0.375...300 kg/h)
Temperature control range*** with 2.5 kW heating module with 4 kW heating module	+15...+30 ºC max. 60 °C max. 80 °C
Temperature Measurement uncertainty	0.5 ºC
Temperature Control stability (steady state (dynamic) conditions)	0.05 °C (0.1 °C)
Pressure control range fuel outlet with option vacuum controller	0.3***...10 bar -0.5...10 bar
Fuel return pressure	-0.5***...2 bar
Fuel circulation rate adjustable	60 ... 960 l/h
Fuel Supply pressure (with option inlet pressure regulator)	0.5... 1 bar max. 5 bar
Fuel supply temperature	15...30 °C
Cooling water supply pressure	0.5...5 bar
Cooling water supply / return temperature	6...15 °C / 12…21 °C
Cooling water supply feed	approx. 800 l/h
Electrical supply voltage	400 V
Electrical supply frequency	50 Hz
Electrical supply current (without heating)	4 A
Overall dimensions W x H x D	1150 x 1320 x 360 mm

*Depending on fuel supply temperature. Without heating fuel outlet temperature cannot be higher than supply temperature at higher flow rates

**Max. heat transfer from engine: 2kW

*** Minimum adjustable pressure depends on setting of return pressure controller

Measurement Techniques

Delta Pressure Principle with Active Driven Internal Gear Pump

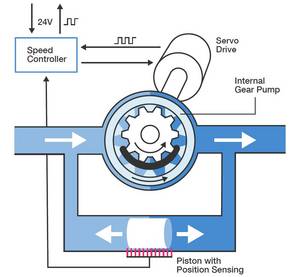

Within the internal gear pump a piston in a bypass regulates the pressure difference between fuel inlet and outlet of the gear pump. The volume flow causes the piston to start moving which breaks the light barrier. This activates the servomotor, which will start to regulate the internal gear pump until the pressure is equalized again. The volumetric flow will be calculated based on the rotation frequency and the geometry of the gears.
