Miniature Raman Spectrometers (532-660-785nm)

Portable Raman spectroscopy with

Mini-CCT-Raman785BT-2-27 (Back-illuminated CCD)

  • Coverage (785nm laser): 210 to 2,700 cm-1 [probe limited] (755-1030nm)
  • Spectral Resolution: 8-12 cm-1 (~ 0.6-0.75nm with 0.19nm/pixel)
  • CCD: Uncooled BI CCD – 28mm long – 80% Peak QE
  • Interfaces: Signal (USB-2) + 5V IN, Trigger IN/OUT
  • Size: 101.6 x 65 x 34.3mm / ~4 x 2.55 x 1.35
  • Fiber input: call for options

Also inquire about:

Mini-CCT-Raman532BT (Back-illuminated CCD)

Mini-CCT-Raman660BT (Back-illuminated CCD)

With TE-Cooled Back-Illuminated CCDs

CT-Raman785-2-18 (TE Cooled CCD)

  • Coverage (785nm laser): 200-1800 cm-1  (800-915nm) or 490-2010cm-1
  • Spectral Resolution: 5 cm-1 (~ 0.35nm with 0.115nm/pixel)
  • CCD: TE-Cooled(-10C) - 1” long – Linear or 2D BI CCD
  • Interfaces: Signal (USB-2), Trigger IN/OUT, Laser On/Off Laser power control, 5V IN
  • Size: 193 x 191 x 89mm / 7.6 x 7.5 x 3.5

Also inquire about:

CT-Raman532 (TE Cooled CCD)

CT-Raman785-2-32 (TE-Cooled CCD)

  • Coverage (785nm laser): 200-3200 cm-1  (800-1050nm)
  • Spectral Resolution: 7-9 cm-1 (~ 0.45-0.75nm with 0.25nm/pixel)
  • CCD: TE-Cooled(-10C) - 1” long – Linear or 2D BI CCD
  • Interfaces: Signal (USB-2), Trigger IN/OUT, Laser On/Off Laser power control, 5V IN
  • Size: 180 x 153 x 89mm / 7.1 x 6.0 x 3.5

CT-Raman785-2-25 (TE-Cooled CCD)

Also inquire about a 785nm configuration for 200-2500 cm-1  (800 to 980nm) and a special 532nm Call us for uncooled or TE-cooled detector requirements on this special miniature Raman spectrometer configuration (540-640nm).

With Front-Illuminated uncooled CCDs

See QE curve for various CCD sensors

Mini-CCT-Raman785-2-25 (USB Powered!)

  • Coverage (785nm laser): 210 to 2,500 cm-1 [System limited] (755-1030nm)
  • Spectral Resolution: 6-9 cm-1 (~ 0.4-0.75nm with 0.19nm/pixel)
  • CCD: Uncooled FI – 28mm long – Linear Sony 511B
  • Interfaces: Signal (USB-2), Trigger IN/OUT, Laser On/Off Laser power control
  • Size: 89 x 65 x 33mm / ~3.5 x 2.55 x 1.28
  • Fiber input: call for options

Mini-CCT-Raman660 (for DPSS or laser diode lasers)

  • Coverage (660nm laser): 400-3150 cm-1 [System limited] (650-815-nm)
  • Spectral Resolution: 8-10 cm-1 (~ 0.35-0.5 nm)
  • CCD: Uncooled FI – 28mm long – Linear Sony 511B
  • Interfaces: Signal (USB-2), Trigger IN/OUT, Laser On/Off Laser power control
  • Size: 89 x 65 x 33mm / ~3.5 x 2.55 x 1.28
  • Fiber input: call for options

Mini-CCT-Raman532 (for DPSS 532nm lasers)

  • Coverage (532nm laser): 210-3500 cm-1  [System limited] (532-650nm)
  • Spectral Resolution: 10-20 cm-1 (~ 0.45-0.6nm)
  • CCD: Uncooled FI – 28mm long – Linear Sony 511B
  • Interfaces: Signal (USB-2), Trigger IN/OUT, Laser On/Off Laser power control
  • Size: 89 x 65 x 33mm / ~3.5 x 2.55 x 1.28
  • Fiber input: call for options

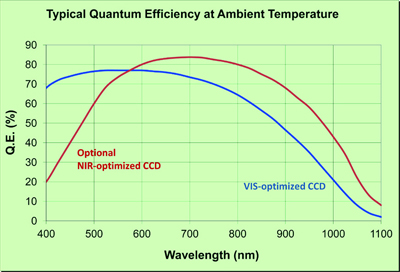

Mini CCT Graph
