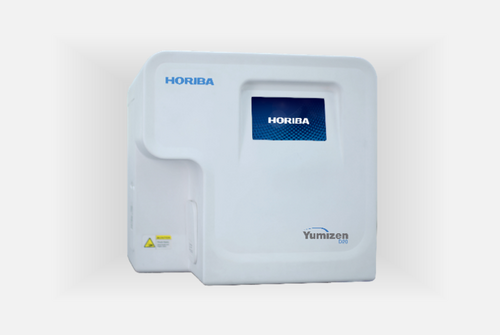

Yumizen D20 Digital Cell Morphology System

Digital Cell Morphology System

An in-vitro diagnostic device designed to automate manual microscopy in a diagnostic laboratory. It uses robotics and AI to digitize Blood and Urine samples to enable AI aided remote review. It generates a pre-classified report of blood and urine with accuracy. This report can be accessed and approved from anywhere, ensuring timely and accurate results to meet patient's needs.

The Yumizen D20 has 2 modules.

Shonit: An AI application to analyze blood cell morphology which identifies and pre-classifies WBCs, RBCs and platelets in a peripheral blood smear.

Shrava: An AI application to analyze urine sediment to identify and pre-classify multiple elements present in urine sediment.

*This product may not be available in your country or region at this time. Please contact your HORIBA sales representative or distributor for more information.

Сегмент: Healthcare

Подразделение: Hematology

Base product: Peri Analytical

Обзор
Технические характеристики

One device, multiple tests - The device can digitize and analyze both blood and urine.
Value-added reports - A standardized report for peripheral smear and urine sediment analysis with visual images of the cells/particles in the final report.
Review reports from anywhere and anytime. The web-enabled reports allow pathologists to work from anywhere.
AI-assisted analysis- Automated WBC DC, RBC morphology, and platelet morphology reporting with visual evidence.
The Microscopic view enables the pathologist to virtually “see” the slide as if it were under a microscope.
Stain – The analyzer is compatible with all Romanowsky stains.
Smear - Shonit is compatible with both manual and automated smears.
Sample Preparation Quality Check - The system provides feedback on the quality of slides for each sample analyzed.
High Throughput – Yumizen D20 can scan 20 slides per hour for blood analysis. It can scan 40 samples per hour for urinalysis, where it takes 25 FOV (Fields of view).
Simplified Sample Preparation - A single-use, leakproof, drift arresting urine cartridge, GS200μ, simplifies the urine sample preparation.
Remote Collaboration - Collaborate with colleagues on special cases without being hindered by geographical separation.
Unlimited Cloud Storage - No more worrying about storage running out. We take care of all your data. Forever!
Hassle-free Upgrades - Remote upgrades for better performance and new products.

	Shonit module	Shrava module
Analyzer type	Blood morphology analyzer	Urine sediment analyzer
Parameters	WBC – LYM%, MON%, NEU%, EOS%, BAS%, IG%, Atypical/Blasts%, NRBC%, Immature cells RBC anisocytosis- Normocyte^, Microcyte^, Round Macrocyte^, Ovalo Macrocyte^ RBC Poikilocytosis – Elliptocyte^, Ovalocyte^, Target^, Teardrop^, Echinocyte^, Fragmented^ Platelets- PLT, Macro PLT, Giant PLT, Platelet Clumps ^*IHS Grades	Semi-Quantitative: RBC, PUS cells, Microorganisms Detected vs Not Detected: Epithelial Cells, Cast, Crystal, Yeast
Sample preparation	Manual or automated peripheral blood smears on glass slides with a thin layer of oil	Specially designed single-use cartridge GS200µ charged with 100µl of a uncentrifuged urine sample
Throughput	20 slides per hour	40 samples per hour
Slide/Cartridge loading	Single slide at a time	Single cartridge at a time
Slide/Cartridge specifications	Length – 74 to 76 mm Width – 24 to 26 mm Thickness – 1.0 to 1.35 mm	GS200µ cartridges
Oil immersion	A thin layer of oil to be applied manually	NA
Stains	Romanowsky Stains (Leishman, May-GrÜnwald- Giemsa, Wright Giemsa, Giemsa)	NA
Regulatory approval	CE IVDR	CE IVDR
Camera	CMOS Sensor 14 Megapixel Resolution
Optics system	Single optical column 40X Objective lens Optical resolution of approximately 700 lp/mm Digital resolution of approximately 6.1 pixels/micron
Illumination source	White LED
Stage movement resolution	XY axis – 0.25 µm Z axis – 0.06 µm
Stage travel speed	XY axis – 12 mm/sec Z axis – 3 mm/sec
Barcode reader	External barcode reader
Quality control	Performance qualification test for hardware and image quality Built-in assessment test of sample preparation quality
Archiving of results and images	Unlimited archiving in Mandara utilizing either LAN or Wi-Fi
External interface	USB Ethernet
Electrical specifications	Input Voltage: 100-240VAC Nominal Power: 60 Watt AC frequency: 50/60 Hz
Size (W x D x H)	485mm x 572mm x 485mm / 19.1in x 22.52in x 19.1in
Weight	49 Kg / 108 lbs

Yumizen D20

Digital Cell Morphology System
