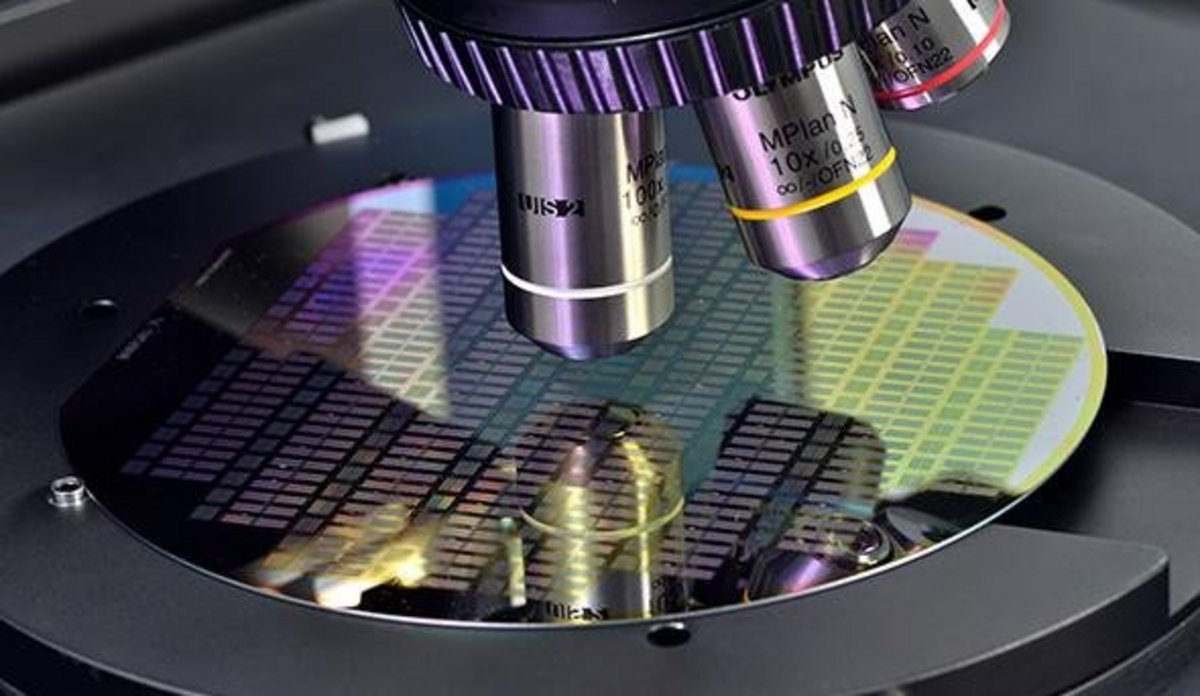

Raman spectroscopy has become an essential tool for semiconductor analysis due to its ability to probe material properties such as crystal quality, strain, stress, doping, and layer thickness at the microscale and even nanoscale.
To meet the evolving challenges in this field, HORIBA has developed advanced Raman spectrometers solutions tailored for semiconductor applications. These systems offer fast, automated, and precise analysis capabilities that are compatible with cleanroom standards and semiconductor manufacturing workflows, delivering both performance and flexibility for R&D and industrial environments.
Raman spectroscopy provides rich, multidimensional information about semiconductor materials and devices such as:
These characteristics are central to device quality, yield optimization, and understanding failure mechanisms.
HORIBA offers specialized Raman Spectrometers and platforms tailored to meet the stringent demands of semiconductor research and production:
A high-performance Raman microscope designed specifically for semiconductor off-line metrology. It supports automated wafer mapping, in-plane and through-silicon analysis, and cleanroom integration.

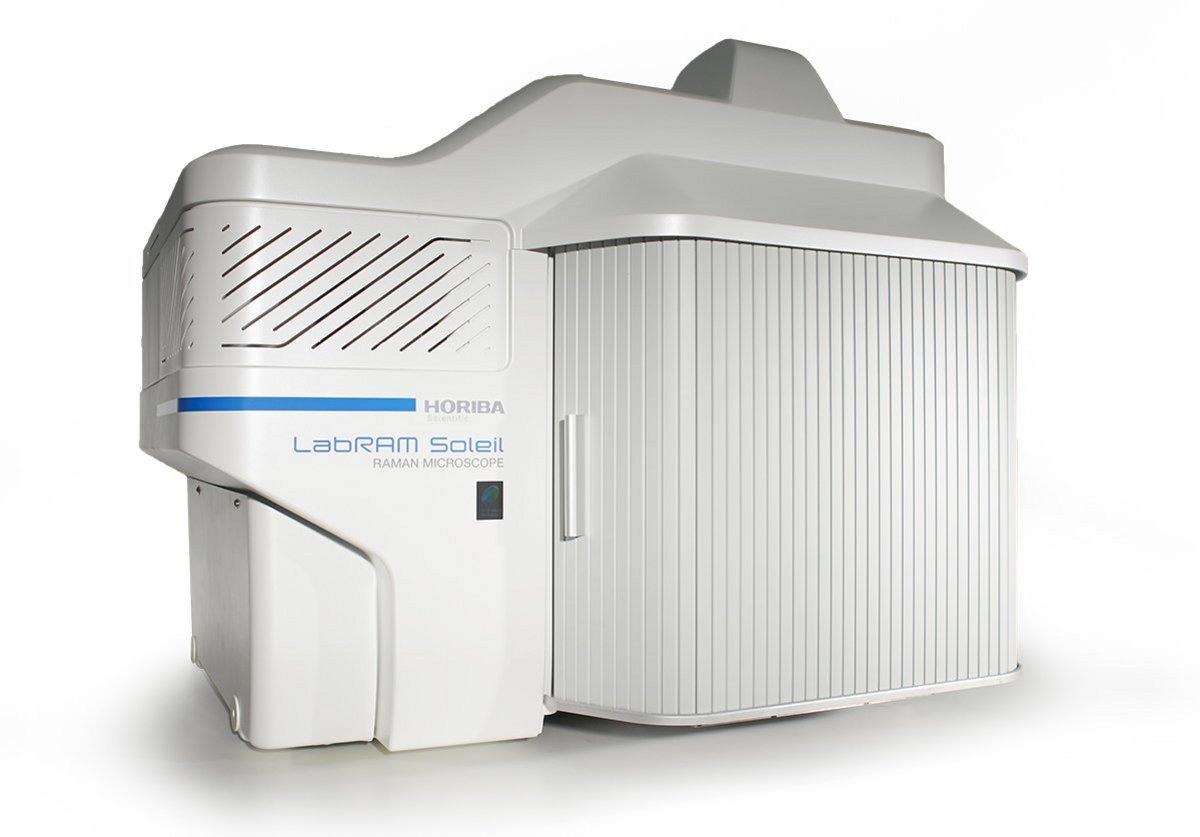

While not dedicated solely to semiconductors, the LabRAM Soleil’s ultra-fast imaging capabilities, intuitive software interface, and multiple excitation wavelengths make it an excellent tool for exploring strain effects, doping profiles, and heterostructure behavior in semiconductor R&D.
You may want to go deeper in semiconductor analysis with these:
Additional information about semiconductor analysis with other techniques is offered into the Semiconductor and Materials market pages.
Some of these technologies incorporate spectroscopy solutions such as:
With decades of Raman expertise, global support, and continuous innovation, HORIBA empowers researchers and manufacturers to address the most complex semiconductor analysis challenges with confidence and precision.
Photoluminescence and Raman Wafer Imaging
Raman Spectroscope - Automated Imaging Microscope
MicroRaman Spectrometer - Confocal Raman Microscope
Confocal Raman & High-Resolution Spectrometer
Ultra Fast Raman Imaging for detailed Raman maps
Lets you navigate easily through your image
Automatic Acquisition of Raman Spectra at Multiple Positions
Automated Silicon Stress Analysis
Recall settings, and automate processes
Automated Particle Measurement, Identification and Classification using Raman Analysis
