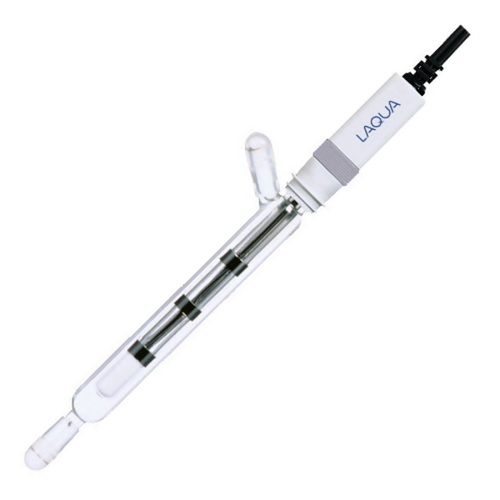

3562-10D Conductivity Cell (Flow Type)

3562-10D Conductivity Cell (Flow Type)

  • For general purpose use
  • Glass body, Platinum/Platinum black, k=1, conductivity cell with integrated temperature sensor
Segment: Scientific
Division: Water Quality
Manufacturing Company: HORIBA Advanced Techno Co., Ltd.
Cell Constant (cm-11
Measurement Range1µS/cm to 100mS/cm
Sample Volume Required (ml)16
Temperature SensorIntegrated
Temperature Range0 to 60 °C
ConnectorsBNC, phono jack
Cable Length1m
Overall Length205mm
Diameter18mm
Cell MaterialPlatinum coated with platinum black, glass body

The actual cell constants are within ±10% of the nominal value.
