Dye Laser Gratings

View Grating List

HORIBA Jobin Yvon has developed two types of gratings for dye lasers: L series (Littrow configuration) and G series (grazing incidence configuration). These holographic gratings are optimized for efficiency when used with TM radiation.

Standard gratings are aluminium coated. Gold coating is offered upon request, to improve efficiency above 600 nm.

Efficiency curves are very flat, and specific blaze wavelengths are not specified. Efficiency vs incidence angle is available upon request.



524 030 Littrow

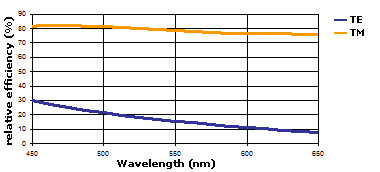

524 12 - 2400 l/mm, coating Al, polarization TM

NOTE:

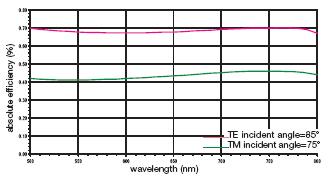

These efficiency curves are absolute theoretical efficiencies, calculated using rigorous electromagnetic theory, taking into account the true groove profiles of manufactured gratings measured with an atomic force microscope (AFM).

These curves are for reference only and do not indicate grating specifications.
