Automatic Polarimeter SEPA-500
Overview
A new, high-performance polarimeter featuring a compact design!
The new SEPA-500 automatic polarimeter from HORIBA was developed based on an entirely new optical design. Polarimeters are essential when measuring the concentration or purity of sugars, amino acids, vitamins, alkaloids, hormones, and other optically active substances used in fields such as pharmaceuticals, sugar manufacturing, and the food industry. The new SEPA-500 is a highly advanced polarimeter that incorporates HORIBA’s unique technologies, based on expertise in optical design advanced through the development of previous models in the SEPA series. The SEPA-500 requires only half the footprint of earlier models, and twelve times the response speed and five times the measurement resolution. Now, you can take measurements more quickly, at higher resolutions, and in virtually any location. With direct measurement of sample temperatures and the adoption of a long-lasting LED light source, the SEPA-500 contributes to both increased measurement accuracy and reduced operating costs.
Features
- Smallest bench space requirement in its class.
| By adopting a new light source and redefining the optical bench rotation mechanism, HORIBA has achieved the industry’s smallest footprint, at 1/2 that of existing models. The SEPA-500 can be installed almost anywhere. |
- High response speed and high resolution.
| In the new optical system, the optical detection system is rotated directly, enabling the industry’s fastest response, at 60° per second. At the same time, it offers a high resolution of 1/10,000 of an angular degree. |
- Data saved USB memory.
| Stand alone operation withat a PC. Measurement results can be saved to the USB memory in CSV format. This allows you to process and store data on your own PC. |
- 簡単操作
カラー液晶表示・タッチパネル入力で簡単操作を実現しました。
また、試料液温を直接測定するため、液温管理も正確・簡単です。 - 高分解
新光学系により世界最高クラスの表示分解能（1/10000°）を実現しました。 - IQOQPQ対応可能
医薬品、食品、化粧品分野における装置管理も万全です。 - 豊富なオプション
・従来のSEPAシリーズのセルオプション※はそのまま使用できます。
・ドットインパクトプリンタ ・ペルチェ式温調セルユニット
Effective in a broad range of applications
Pharmaceutical industry
- Pharmaceuticals
- Vitamins
- Injectable solutions, etc.
Food industry
- Dairy products (lactose, etc.)
- Beverages
- Alcoholic beverages (wines, sakes, etc.)
- Candies, chocolate, and other confectionaries
Sugar manufacturing industry
- Sugar content in sugar beets
- Sugar content in sugar cane
- Saccharides and other sugars
Universities and research laboratories
- Biopolymers
- Synthetic polymers
- Natural polymers, etc.
Natural oils
- Camphor oils
- Perfume bases
- Cosmetics, etc.
Measurement results screens
| Condition setting and input screens
|
Examples of file data output
Output statistical calculation results, including angle of rotation, specific rotation, concentration, and Sugar Degree.
Angle of rotation
Specific rotation
Specific rotation
| Statistical calculation results
Statistical calculation results
|
Manufactured by HORIBA
Specifications
Light source | LED |
|---|---|
Polarizer | Polarizing film |
Measurement wavelength | 589 nm (equivalent to sodium D-line) |
Sensor | Photodiode |
Maximum cell length | 100ｍｍ |
Range of measurement angles | ±90° |
Measurement accuracy | ±0.002° (at less than 1°); ±0.2% (at 1° or more) |
Measurement repeatability | ±0.002° |
Minimum display angle | 0.0001° |
Maximum response speed | 60°/sec. |
Measurement method | Symmetrical angle oscillation optical null method |
Temperature measurement | Cell holder / inside cell |
Range of measurement tem | ０～99.9℃ |
Display | Color LCD; 5.7 inch |
Input method | Touch screen |
Measurement items | Angle of rotation, specific rotation, sugar content (international standard), concentration, sugar purity |
Data processing | Continuous automatic measurement, statistical (mean, SD) processing |
Data storage | External printer (optional), external USB memory (*1) |
External connection | Ethernet |
External dimensions | Body: 490 (W) x 250 (D) x 200 (H) mm |
Thermostatic water circulation | Maximum water flow: 12 L/min. |
Weight | 13 kg |

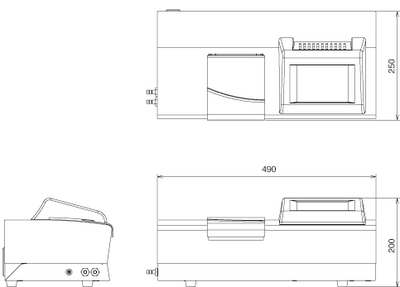

Schematics
Accessories
A wide range of accessories for every application
- Dot-impact printer for printing measurement results
- Peltier-type thermostatic cell holder that does not require the use of water
- IQOQ documents which are essential in the pharmaceutical and food industries are available
- External operations to a PC using Ethernet output
- Standard optical rotation plate
- Extensive lineup of cells for every application, from 0.1 mL cells with 10 mm optical path lengths to flow cells and jacketed cells
cells
Dot-impact printer
Peltier-type thermostatic cell holder
