IG-410
Overview
Dual range checker for Gloss and Ultra High Gloss measurement
The IG-410 measures ultra high gloss surfaces such as polished metal. The meter has ten times greater measurement range than the conventional model. Even mirror finishes can be measured too.
Weighing in at only 350g (1.3 lbs), this battery operated instrument is designed to be portable. Fast and reliable measurement by simple one-touch operation. LED light sources give <100,000 hours service so there is no need to exchange these parts due to lifetime.
The IG-410 has two user-selectable measurement ranges, depending on the sample to be measured. Low gloss samples can be measured using the 0-100 range and high gloss samples can be measured using the 0-1000 range. Two calibration plates are provided to allow the user to follow a simple one-touch calibration procedure to ensure reproducible results.
Click here to download IG-410 brochure.
Features
Latest model Gloss Checker now checks Ultra high gloss surface finishes
Compact, lightweight and detachable probe design
Dual range extends measurement resolution in the low gloss range
Manufactured by HORIBA
Specifications
Measuring system | 60° |
---|---|
Measuring area | 3 x 6mm oval |
Light source (Service life) | LED <890nm> (Indefinite) |
Detector | SPD <890nm> (Silicon photodiode) |
Measuring range (resolution) | range1 : 0.0 - 100.0 (0.1) range2 : 0 - 1000 (1) |
Repeatability | ±1% F.S. |
Power source (Battery life) | R6 (AA) Alkaline x 4 (200 hours or more at continuous operation) |
Ambient temperature range | 10 - 40℃ |
Dimensions | Main body : 75 (W) x 34 (D) x 140 (H) mm |
Mass | Approx. 350g (including battery) |
Additional functions |
|
Accessories |
|

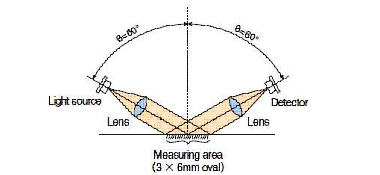

A measurement standard for the gloss value
Gloss value 100 is defined as specular reflectance in incident angle θ of the glass of reflectance index 1.567. With incident angle θ = 60°, specular reflectance is 10%,or gloss value 100. Consequently gloss in specular reflectance 100% is calculated as 1000. Reflectance in many polished metals is 50% or more, some are 90% or more. Then measurement range is expanded up to 1000 in IG-410. I adopt IR LED (an HORIBA original method) in a source of light.
