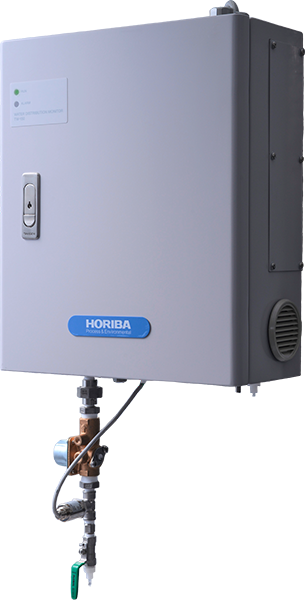

HORIBA Online Water Quality Monitor
TW-150
Good branding starts from clean drinking water.
Measures and Display up to 7 Parameters
HORIBA’s TW-150 is a process water quality measurement system designed for drinking water and water distribution plants.
- TURBIDITY
- COLOR
- RESIDUAL
CHLORINE - WATER
PRESSURE - pH
- CONDUCTIVITY
- WATER
TEMPERATURE
90 degree light scattering method for turbidity measurement
Measurement method for turbidity is direct NTU value by 90 degree light scattering method and comply with ISO 7027.
Measurement of turbidity and color is performed with a single cell (patent pending).
Farewell serviceman…

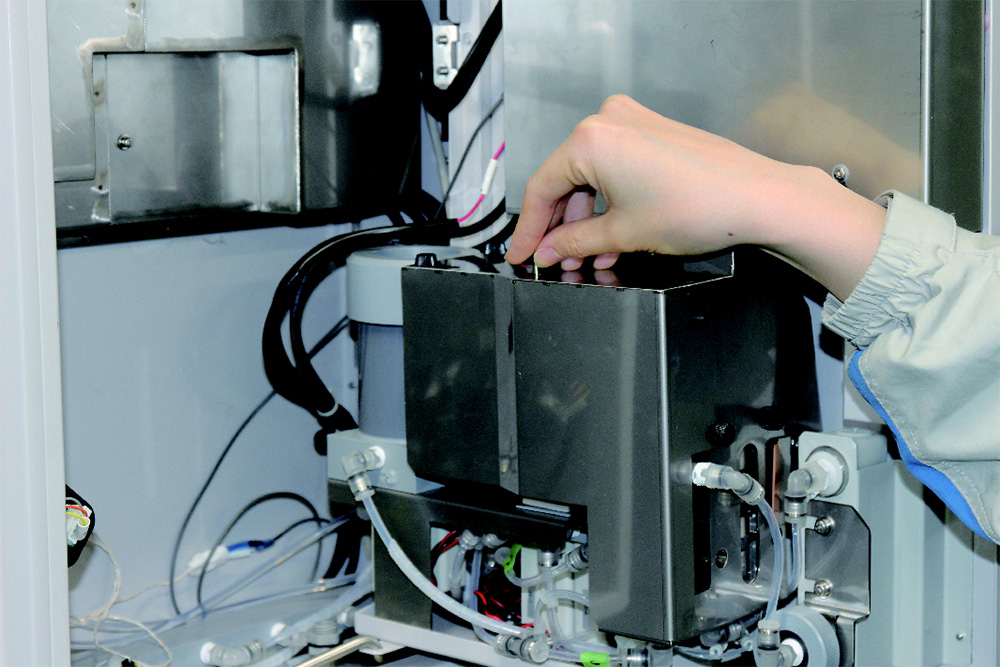

Reduce the hassle on site without the need for tools
The use of thumbscrews makes maintenance easier as special tools are not required.

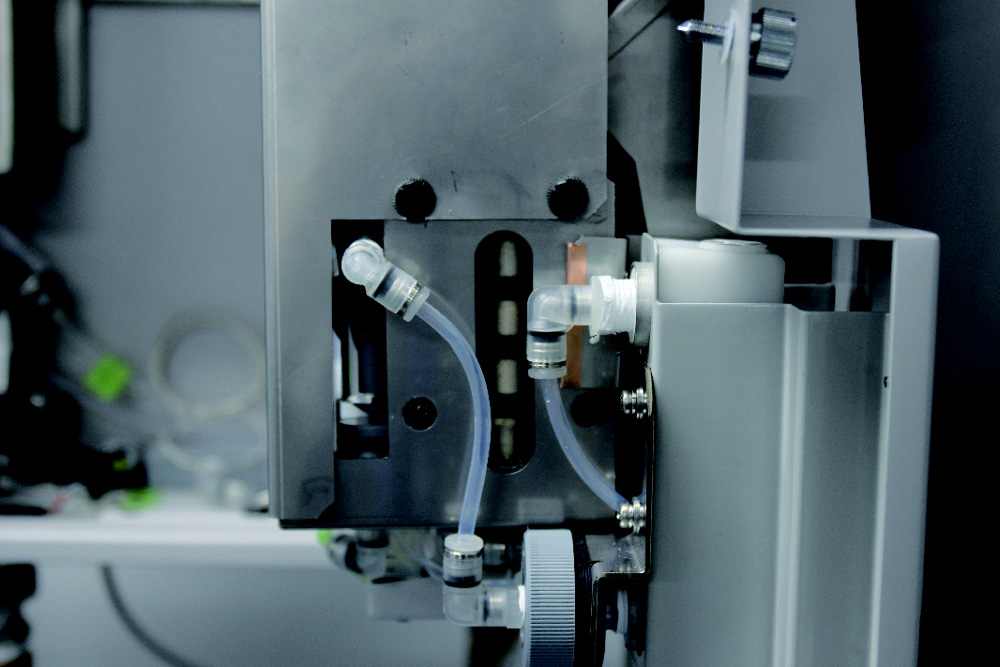

Status can be determined with a glance
The use of transparent measuring cell enables easy confirmation of the sample conditions.

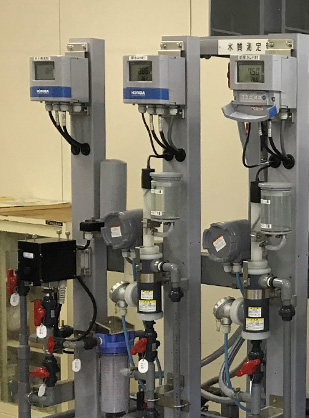

TW-150 is already monitoring the water supply around the world.
Application Example
Drinking water plant in Japan measures different parameters respective to the process.
The TW-150 conducts final check at the end of the process.
In Malaysia, a software was developed to connect the TW-150 for remote monitoring of the water supply.
More information:
> Case study
> Technical Journal “Readout” (Coming soon)
Want to know more about TW-150？
Information & documents
- Catalogs
- Instruction Manual
- Technical Journal “Readout”
Coming soon - Case studies
- PR videos
Coming soon

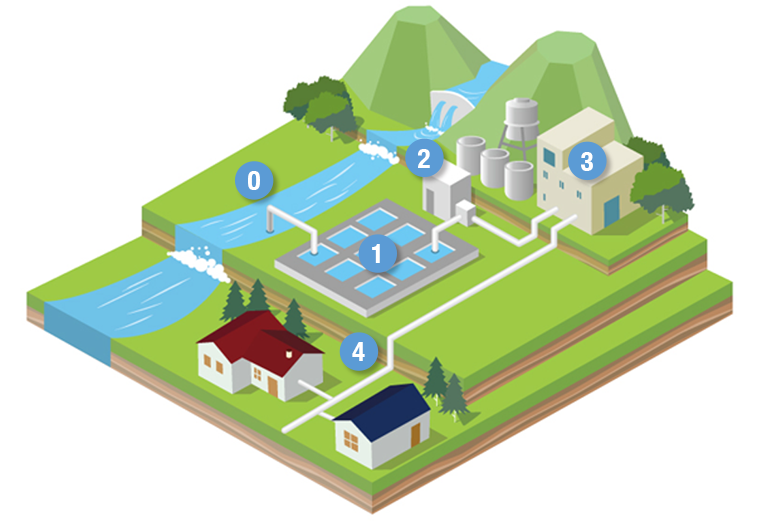

HORIBA’s drinking water application solutions
Water intake
For periodic check
Multi-Parameter Water Quality Checker U-50
For continuous monitoring
Water Treatment plant “process”
For process monitoring
On-site Water Quality Meter H-1 Series
For quality check
Water Treatment plant “outlet”
For process monitoring
On-site Water Quality Meter H-1 Series
Online Water Quality Monitor TW-150
For quality check
Pump station / Reservoir
Distribution networkMore Information:
> Products for drinking water application
