Tunable Laser Gas Analyzer

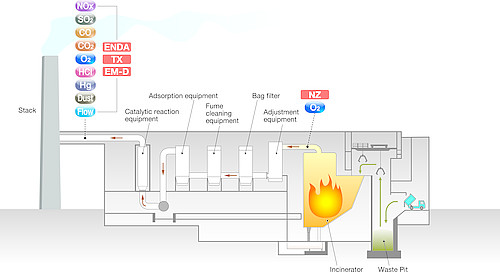

TX-100 is HORIBA’s in-situ laser-based HCl analyzer with a probe type optical system. The TX-100 is suitable for monitoring HCl concentrations in incineration plant flue gas streams and for the control of HCl removal processes.
Both laser and receiver are installed at the same side of the stack
Just one flange installation is sufficient for the setup
Easy replacement to an existing analyzer with no additional work
The stabilized optical axis provides excellent performance
Continuous moisture correction function supports high accuracy measurement
TX-100 implements calibration without any disruption to the facility’s operations. The zero point can be checked automatically and the signals are kept in stable condition over long term
(US patent No. 8934101; China patent No. ZL201280039440.7; patent applied for Japan, Europe)
<Measurement> Zero point checking and measurement are conducted alternately
Zero point checking mode
Zero point checking is carried out while the prism is inserted into the optical path at fixed intervals.
Measurement mode
In measurement mode, the prism moves upward and leaves the optical path
<Calibration> Calibration is conducted after span gas is filled in the calibration cell
Gas calibration is completed leaving the probe attached in the stack.
Analysis unit display
Basic display to confirm and control information such as equipment status, gas status and comunication status.
HMI unit (option)
A touch panel screen that can set and confirm concentration, transmittance, trend graph, maintenance info, alarm status, etc.
PC-HMI (software)
PC-HMI is a software that includes almost the same function as the software instaled in HMI unit. Install this software in a PC or other devices to operate. Ethernet is available for data transmission between PC and TX-100.
Free download available from our website.
Name | Tunable Laser Gas Analyzer |
Model | TX-100 |
Measurement target | HCl and H2O in process gas |
Measurement component | HCl, or HCl and H2O simultaneous measurement |
Measurement principle | Non Dispersive Infrared (NDIR) |
Measurement type | Probe type |
Laser class | CLASS1(IEC60825-1: 2014) |
Protection degree | IP65 |
Wetted materials | SUS316L、SUS304、BK7、FKM、PTFE、aluminum alloy |
Tube connections | Rc1/8 (Tube of 8 mm O.D./6 mm I.D.) |
External dimentions | Analyzer: Max: 358 (W) x 517 (D) x 453 (H) mm |
Weight | Analyzer: 19 kg |
Flange specifications | JIS10K-100AFF、JIS5K-125AFF、ANSI 150 Lb 4BRF |
Power supply voltage | DC24V±10% |
Power consumption | 90 W |
Display | LCD (128 × 64 dots), LED (3 units: Status display) |
Display contents | Gas concentration, transmission, process gas temperature, process gas pressure, system status, alarm information, system information (product serial no., output signal, IP address, optical path length, analyzer unit internal temperature) |
Communication | ModbusTM/TCP |
Analog input/output | Input: |
Output: | |
Digital input/output | Input: |
Output: Two channels (Warning/Calibration/Warm-up/Maintenance state/Fault) Relay contact output (isolated output) Max. 24 V, 1 A at each terminal |
*You can select either fixed value or real time HCl correction using H2O concentration.
-Modbus is a trademark of Schneider Electric Inc.
-Consult HORIBA if special probe length is required.
Measurement component | HCl, H2O |
Measurement range (250℃、101.3kPa) | HCl: 0-50,100,200,300,400,500 ppm*1 H2O: 0-50 vol% |
Measured optical path length | 2m |
Repeatability | HCl: +/- 1.0% F.S. H2O: +/- 2.0% F.S. |
Linearity | HCl: +/- 1.0% F.S. H2O: +/- 2.0% F.S. |
Zero drift | +/- 2.0% F.S. / 6 months |
Span drift | +/- 2.0% F.S. / 6 months |
Data update cycle | Approx. 2sec |
Recommended Calibration cycle | 6 months |
Calibration method | HCl: Manual calibration using gas cell H2O: Factory calibration*2 |
Interference | +/- 2.0% F.S. |
Warm-up time | 3hours |
*1: Select a measurement range.
*2: You can adjust the H2O indicated value to the manual analysis value. Consult HORIBA for more details.
Ambient temperature | -20 ~ 55°C (no direct sun rays, radiant heat and heat conduction from flange) |
Ambient humidity | Relative humidity: 90% or less (no condensation) |
Dust | Ambient criterion or less |
Air purge | Instrument air (must not contain oil or mist; no dew formation) |
Air purge flow rate | 60 L/min or more (depend on the process gas conditions) |
Vibration | At 1 to 200 Hz, 1.96 m/s2 or less (excluding resonant frequency) |
Process gas conditions | Temperature: 150 to 250°C Pressure: 101.3 ± 10 kPa Flow speed: 25m/s Dust: 0.1mg/Nm3 or less |
* This value is supplied pressure to TX-100 main unit. In case air passes through the purge unit, the pressure value at the purge unit is 0.2 to 0.9 MPa.
