DeltaTime

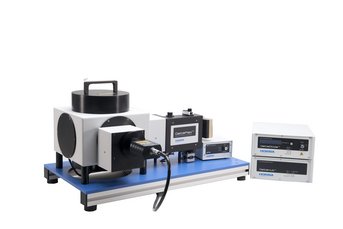

DeltaFlex TCSPC Lifetime Fluorometer

TCSPC Lifetime Kit

HORIBA Steady State 측정기를 위한 유연하고 경제적인 플러그인 TCSPC Lifetime 시스템

시중에 나와 있는 다기능 형광 시스템 중 가장 성능이 뛰어나며 액세서리와 가장 광범위한 피코초 광원을 통합합니다.

Delta Time Correlated Single Photon Counting(TCSPC) 수명 플러그인은 시판 중인 다른 다기능 형광 솔루션에서는 사용할 수 없는 획득 속도, 유연성 및 경제성을 제공합니다.

DeltaTime은 단색기, 편광기 및 기타 부속품을 가장 광범위한 소스(LED, 레이저 다이오드, 초연속 레이저) 및 검출기(NIR 포함)와 원활하게 통합하여 UV에서 NIR에 이르는 파장에 걸쳐 25ps에서 1초까지의 수명을 제공합니다. 40년 이상의 평생 경험을 통해 가장 빠른 소스(최대 100MHz), 가장 넓은 수명 범위(ps~sec), 광범위한 구성과 고급 수명 분석 소프트웨어를 제공합니다.

Delta Time은 Delta 시리즈의 일부이며, 차세대 형광 수명 시스템입니다.

Segment: Scientific
Manufacturing Company: HORIBA Scientific
  • Fast…lifetime acquisition times from one millisecond
  • Sensitive…uses single-photon counting detection
  • Accurate…crystal locked timing circuits never require recalibration
  • Wide range…resolves lifetimes from 25ps to 1 second
  • Modular…easily reconfigured as measurement requirements evolve
  • Compact…desktop dimensions
  • Convenient…single USB 2.0 connection to PC
 DeltaPro-DDDeltaPro-NL
Minimum lifetime25 ps with laser-diode source30 ps with laser-diode source
Shortest acquisition time1 millisecond*100 milliseconds*
Diode controllerDeltaDiode and SpectraLEDNanoLED and SpectraLED
Repetition rates
  • 10 kHz–100 MHz with DeltaDiode*
  • 0.1 Hz–10 kHz with SpectraLED
  • 10 kHz–1 MHz with NanoLED
  • 0.1 Hz–10 kHz with SpectraLED
Prompt FWHM<200 ps FWHM with PPD and laser diode
Dead time10 ns
Time ranges10 ns – 11 s100 ns–11 s
Wavelength selectionInterchangeable filters (filters purchased separately from HORIBA or others)
Detector response250–650 nm standard; 250–850 nm and 300–900 nm optional
PC interfaceUSB 2.0. PC not included. Requires Windows® XP or Windows®  7, 32/64-bit English language ver.
System footprint75 cm * 45 cm nominal excluding PC (depending on options)
Fluorescence Anisotropy Studies
Fluorescence Anisotropy Studies
Polarized light striking a fluorescent molecule results in polarized fluorescence. This polarized emission gradually returns to unpolarized fluorescence depending on rotational diffusion and other factors. Anisotropy is directly related to the polarization, and is the ratio of the polarized light component to the total light intensity.
Read more
Dye‐protein binding monitored in a microliter volume using timeresolved fluorescence
Dye‐protein binding monitored in a microliter volume using timeresolved fluorescence
The potential health benefits stemming from the antioxidant activity of curcumin, commonly found in turmeric (Curcuma longa L), has attracted the interest of several research groups.
Read more
Stopped flow time‐resolved fluorescence study of serum albumin – curcuminoid binding
Stopped flow time‐resolved fluorescence study of serum albumin – curcuminoid binding
Rapid mixing accessories to perform stopped flow measurements have found application in characterizing interactions and reactions occurring in solution. Reactants are expelled from syringes, mixed and injected into a flowcell.
Read more
Measuring PL Upconversion Spectra and Lifetimes of Lanthanide-Doped Nanoparticles
Measuring PL Upconversion Spectra and Lifetimes of Lanthanide-Doped Nanoparticles
Upconverting lanthanide-based nanomaterials exhibit a unique fluorescence anti-Stokes shift, which enables them to convert NIR wavelength excitation into visible shorter wavelength emissions (NIR to UV-Vis).
Read more
Characterizing Lanthanides in Glasses for Optical Applications
Characterizing Lanthanides in Glasses for Optical Applications
Glasses are essential materials with a multitude of uses and many forms. In the area of optoelectronics there is an interest to modify the glass composition to favor the incorporation of lanthanide elements.
Read more
Upconversion of Lanthanide-containing glasses using DD‐980L excitation
Upconversion of Lanthanide-containing glasses using DD‐980L excitation
The phenomenon of upconversion is an optical process that takes in lower energy (longer wavelength) photons and emits higher energy (shorter wavelength) photons.
Read more
Measurement of carrier lifetime in perovskite for solar cell applications
Measurement of carrier lifetime in perovskite for solar cell applications
Hybrid perovskite photovoltaics (PV) show promise because of their good efficiencies, which can be around 20%. Along with their PV characteristics, perovskite materials exhibit a high degree of radiative recombination.
Read more
Time‐resolved luminescence of security inks from the UV to NIR
Time‐resolved luminescence of security inks from the UV to NIR
The use of security features, such as luminescent inks, has increased significantly in an attempt to prevent fraud and counterfeiting of materials and goods.
Read more
Time‐resolved Fluorescence for Monitoring Food Composition
Time‐resolved Fluorescence for Monitoring Food Composition
The use of time‐resolved fluorescence has expanded as the relative cost of instrumentation has decreased in recent years. One area where this is especially true is in the food industry, where time‐resolved fluorescence has been applied in the characterization of food stuffs as well as aspects related to food safety and degradation.
Read more
Monitoring Whole Leaf Fluorescence Using Time‐resolved Techniques
Monitoring Whole Leaf Fluorescence Using Time‐resolved Techniques
Light incident on a leaf can be absorbed by chlorophyll to commence the photosynthetic cycle. Excess energy can be liberated as heat or by emission of fluorescence and this can be used to assess the efficiency of the photosynthetic process.
Read more
The Measurement of Singlet Oxygen Lifetime Sensitized using Rose Bengal
The Measurement of Singlet Oxygen Lifetime Sensitized using Rose Bengal
The study of singlet oxygen (1O2) is of interest, principally, as it is a highly reactive species. It can be produced by photosensitisation, usually of a molecule such as a dye or porphyrin. Thus, by the appropriate selection of sensitiser, the presence of oxygen and light, 1O2 can be selectively generated. From a biological aspect it has the ability to damage and destroy cells, which has lead to interest in its use as an anticancer agent in photodynamic therapy (PDT).
Read more
Effect of temperature on HSA structure inferred using time-resolved room-temperature phosphorescence
Effect of temperature on HSA structure inferred using time-resolved room-temperature phosphorescence
To access intrinsic amino acids, such as tryptophan, as probes, the UV excitation wavelengths for pulsed phosphorescence measurements have long been the preserve of low-repetition-rate gas-filled lamps or larger laser systems. Recent developments have enabled the use of interchangeable semiconductor diodes...
Read more
Investigating photocleavage using time‐resolved emission spectra
Investigating photocleavage using time‐resolved emission spectra
The choice of protecting group is of crucial importance in the success of many steps in organic synthesis and the manipulation of polyfunctional molecules, since they can prevent the formation of undesired side products and reactions.
Read more
Elucidating Local Viscosity Using Fluorescence Lifetime Measurements
Elucidating Local Viscosity Using Fluorescence Lifetime Measurements
Certain fluorescent molecules, known as molecular rotors, can be employed to estimate the local (nanoscale) viscosity in microheterogeneous systems by measurement of their fluorescence lifetime. This can be advantageous over the usual fluorescence anisotropy method, as the measurement is simpler and faster to perform. This is demonstrated using the HORIBA Scientific TemPro fluorescence lifetime system to monitor the gelation of silica produced using the sol‐gel technique.
Read more
MCS and Protein Phosphorescence
MCS and Protein Phosphorescence
Tryptophan phosphorescence within protein molecules is gaining attention as a probe of protein dynamics and structure. The tryptophan phosphorescence lifetime, τ, varies with the protein molecule’s local environment and conformation.
Read more
