Are you EcoDesign Compliant?

With the Ecodesign Regulations that came into effect on the 1st January 2022 for solid fuel room heater appliances, manufacturers of all solid fuel burning appliances will have to have their products independently tested to prove that they are compliant.

HORIBA enables manufacturers to carry out their own ‘in-house’ testing regimes to ensure every one of your products is within the new limits of the four main emission limit provisions as laid down within the new Ecodesign regulations. In-house testing allows you to have confidence that your appliances will pass the independent testing, therefore minimizing the costs from failed/repeat tests.

Introducing the VA-5000 Series Gas Analyzer with its key features:

The 5.7-inch touchscreen LCD with real-time trend graph analysis provides easy recognition of measurement value stabilization.
Compact size: Enable easy replacement and installation within tight spaces.
VA-5000 (19-inch panel mount type): 430mm (W) x 380mm (D) x 132mm (H).
VA-5000WM (Wall mount type): 424mm (W) × 206mm (D) × 484mm (H).
Operates in standard ModbusTM TCP communication with optional analogue and digital I/O.
Continuous data for up to 15 days can be stored via 1 GB USB.

Flexibility for Various Applications

Provides wide selection of measurement range; from parts per million (ppm) to percent concentration.
Capability to simultaneously measure up to four gas components.*
Automatic internal correction of measurements, such as oxygen (O2) corrected value. No need for additional external programmable logic controller (PLC).
Thermostat for optical unit allows use in tougher sample gas conditions.

*Refer to specifications table for possible combination of modules.

Benefits

Extremely reliable instrument leading to lower maintenance costs.
Rapid response time (typically <1 minute).
Repeatability Ideal for measuring pollutants from domestic gas and solid fuel burning stoves.
Measuring CO, CO2, SO2, CH4, NO, NOx, NH3, N2O, O2.

Plug and Play Functions

Modular design enables quick replacement of analyser bench - resulting in reduced downtime.
Users need not prepare any time consuming adjustments at site.
Just easily plug the connection lines and upload the settings data via USB.

User-Friendly Features

Mobile – can be moved from station to station.
Easy Maintenance.

Measurement Method	Component	Option Range	Standard Range		Zero Drift		Span Drift^*1		Repeatability
		High Sensitive Min. Range	Min. Range	Max. Range	Standard Range	High Sensitivite	Standard Range	High Sensitive
NDIR	CO	0-50 ppm	0-200 ppm	0-100 vol%	± 2.0%/week of F.S.	± 2.0%/day (CO: 0-50-99 ppm range, CO₂: 0-50-99 ppm range, SO₂: 0-100-199 ppm range ± 1.0%/day (CO: 0-100-199 ppm range, CH₄: 0-100-199 ppm range	± 2.0%/week of F.S.	± 2.0%/day (CO: 0-50-99 ppm range, CO₂: 0-50-99 ppm range, SO₂: 0-100-199 ppm range ± 1.0%/day (CO: 0-100-199 ppm range, CH₄: 0-100-199 ppm range	± 0.5% of F.S.
	CO₂	0-50 ppm	0-100 ppm	0-100 vol%
	CH₄	0-100 ppm	0-200 ppm	0-100 vol%
	N₂O	NA	0-100 ppm	0-5000 ppm
	NO	NA	0-500 ppm	0-1 vol%
	SO₂	0-100 ppm	0-200 ppm	0-10 vol%
	NH₃	NA	0-100 ppm	0-1000 ppm
CLA	NO/NOx	NA	0-20 ppm	0-5000 ppm	± 2.0%/week of F.S.				± 0.5% of F.S. (Range is more than 0 ppm to 100 ppm) ± 1.0% of F.S. (Range is less than 0 ppm to 100 ppm)
MPA	O₂	NA	0-5 vol%	0-100 vol%	± 2.0%/week of F.S.		± 2.0%/week of F.S.		± 0.5% of F.S.
Galvanic		NA	0-5 vol%	0-25 vol%	± 1.0%/day of F.S.		± 1.0%/day of F.S.		± 0.5% of F.S.
Zirconia		NA	0-5 vol%	0-25 vol%	± 1.0%/week of F.S.		± 1.0%/week of F.S.		± 0.5% of F.S.
PMA		NA	0-5 vol%	0-100 vol%	± 2.0%/week of F.S.		± 2.0%/week of F.S.		± 0.5% of F.S.

Note 1: Select multiple measurement ranges within the above minimum and maximum range table in accordance to the following conditions.
[NDIR] Five (5) ranges; the highest range must be within the maximum limit ratio of 10x the lowest range. Maximum limit of 20x the lowest range is also an available option, which may be limited by the cell length.
[CLA] Eight (8) ranges; the highest range must be within the maximum limit ratio of 100x the lowest range. If the maximum range exceeds 2000 ppm, the minimum range should be at least 50 ppm or more.
[MPA] Five (5) ranges; the highest range must be within the maximum limit ratio of 10x the lowest range.
[Galvanic] Five (5) ranges; the highest range must be within the maximum limit ratio of 5x the lowest range.
[Zirconia] Five (5) ranges; the highest range must be within the maximum limit ratio of 5x the lowest range.
[PMA] Three (3) ranges; the highest range must be within the maximum limit ratio of 10x the lowest range.

Note 2: Contact HORIBA if you require measurement of special gases or ranges.

*1% of span drift for NDIR is achievable with special adjustment at factory. Please contact the HORIBA team for further details.

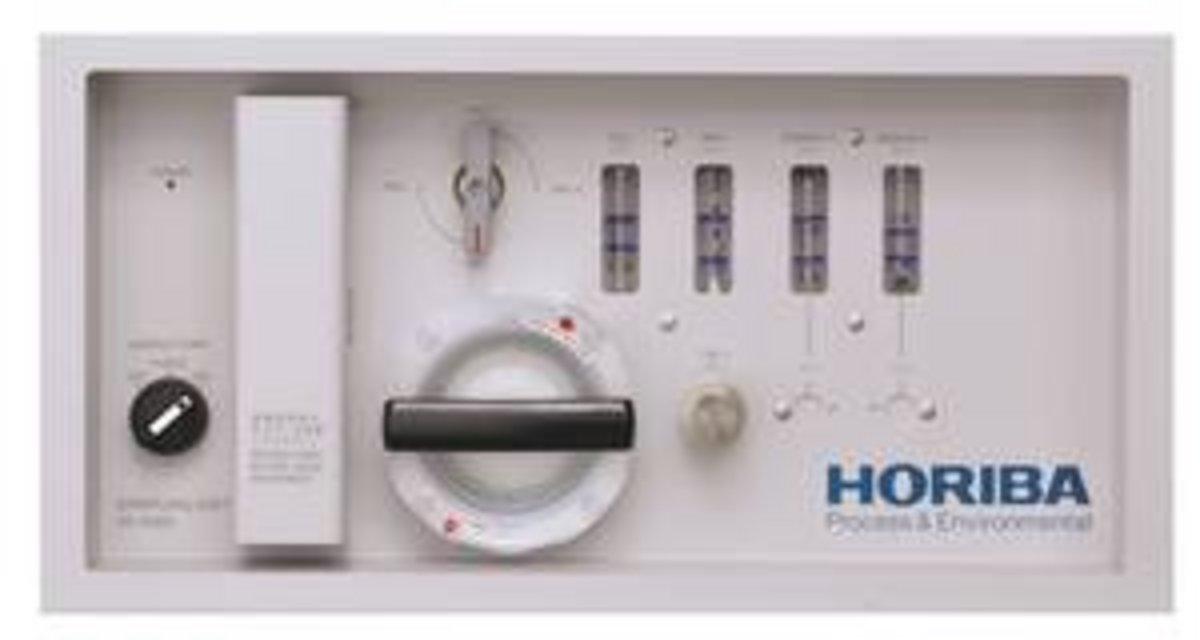

VS-5000 Series Sample Gas Conditioning System

Compact - can be easily mounted to a 19-inch rack.
All sample conditioning components (pumps, coolers, filters, flow controls, NOx converter etc.) are integrated into a single case.
Depending on the application - 1 x VS-5000 unit may support up to 2 x VA-5000 units.*

* Please consult HORIBA for further details.
