LY-9610 Imaging Unit Accessory

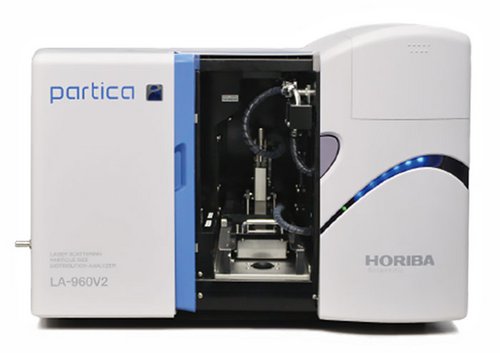

Observe particles in real time as they circulate in the Partica LA-960V2 wet system. Better understand dispersions and extract image based shape and size information to complement laser diffraction results. The small integrated unit fits neatly inside the Partica LA-960V2 without increasing the instrument footprint.

Real-time Images

Segment: Scientific
Manufacturing Company: HORIBA, Ltd.

Features

  • Detect and count even with trace amounts of unusual particles (Contaminants, large particles and aggregated particles).
  • Detect bubbles in wet circulation system.
  • Improved understanding of sample dispersion (effect of stirring, sonication, addition of surfactants, stabilizers, etc.).
  • Particle shape analysis* (Optional Advanced Software).


Functions

  • Image acquisition and particle detection.
  • Automatic detection of large particles.
  • Automatic detection of bubbles.
  • Real time trend graph and histogram of equivalent circular diameter.
  • Histogram of shape distribution (aspect ratio, roundness, length, width) with optional advanced software.


Product video
Watch video

Measureable Range for image analysis9 - 1000 μm
Pixel Size0.8 μm
Speed≧ 4 fps
FunctionsHistogram of equivalent circle diameter.
Shape Parameters: Aspect ratio*, Circularity*, Length*, Width*
Trend graph of equivalent circle diameter.
Post Analysis of captured image (zoom-in/out, measuring size).
CommunicationUSB 3.0

*Optional Advanced software

Comparison of results between laser diffraction and image analysis
Comparison of results between laser diffraction and image analysis
Laser diffraction is a popular method for particle characterization. Coupled with an image analysis unit, we can compare in real time the classical values of D10, 50, 90 and get information about the shape or dispersion state of our particles, thus proving the usefulness of this complementary technique.
