HIN Automotive Facility

HORIBA India Technical Center Inaugurated in 2016, is a comprehensive center with facility for product demonstration and testing, a workshop for product customization and assembly, an office space, and a training center.

It is a core establishment for all types of Engines and Vehicle testing, Calibration Center for Gas Dividers, Converter Checker (GDC), Mass Flow Controller, OBS- PN (PEMS) & FTIR. Our Services includes Vehicle and Engine testing, Real Driving Emission Testing, Vehicle Engineering Services, and consultancy for turnkey solutions.

In line with our philosophy, we are committed to providing cutting edge reliable technology and continuously strive to understand the true needs of our customers and positively deliver solution. Employees are our biggest assets; at we provide them with practical demonstration experience to ensure their professional growth and development at HORIBA India Technical Center.

Vehicle Test Cell

VULCAN 4WD 48’’ Second-generation Chassis Dynamometer with Mass Emission Measurement System, allows emission measurement of passenger cars, hybrid cars, and light-duty vehicles. Emission Test is carried out as per Indian and other Global regulations with a dedicated soak room maintaining the temperature and humidity as per latest regulations.

Features:

Axle load of up to 3500 kg (light-duty) with 4 WD capability.
Extendable wheelbase for a variety of vehicles M1 and N1.
Suitable for current and future drive technologies, including hybrid, battery, and fuel cell electric vehicles with capability of measuring all regulated and non-regulated emission pollutants like CO, THC, NOX, O2, CO2, NH3, N2O, PM and PN…etc.
Capable to run Road to Lab simulation, Real Driving Emission Development within Laboratory.
HORIBA unique service on Road to Rig replication, Emulation (RDE, Road to vehicle Lab, and Vehicle Lab to Engine Lab) and simulation for faster RDE development for all powertrains.
Equipped with dedicated and individual sampling tunnel specifically for the testing of Diesel, Gasoline, CNG, and alternate fuels.
Equipped with lab safety protocol for fire safety, smoke detection, and gas leakage detection. Fire hydrants and fire extinguishers are interlocked within for protection of test engines and vehicles in case an emergency occurs.
STARS Enterprise for Lab and Data management.
Capability of Dynamic Altitude Simulation from -2000 m to 5000 m with Emission measurement.

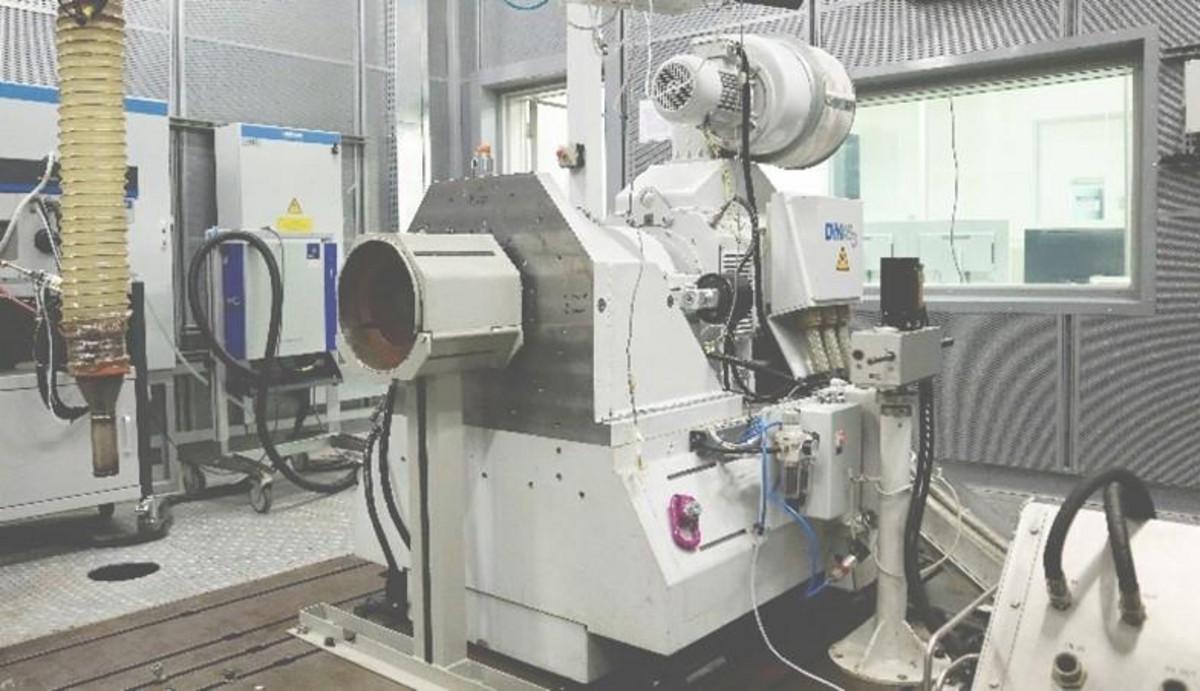

E-Motor Test Cell

180kW E-Motor Test Bed is a state of art facility to test the regulation, performance, and endurance of e motor test specimen along with inverter. This test bed provides 429Nm of torque in both absorption and motoring modes as it is equipped with an inverter consisting of 4 quadrant IGBT’s for seamless switchover between quadrants. Test bed can operate with maximum speed of 16,000 rpm. It is equipped with DC source which can provide both source and sink mode of operation to test specimen.

Features:

Can be used to test regulatory as well as performance tests such as blocked rotor test, efficiency map, system efficiency, overload test, torque-speed characteristics at different voltage and current levels etc.
User defined test cycles can be prepared with MS Excel®.
LiON, LiFePO4, NiMH and Pb-acid battery pack models specifically calibrated for vehicle applications
Flexibility to create new battery models by identifying parameter values.
Battery simulation is available from 10 – 800V.
Source and sink operation with ± 600A is possible.

Calibration Lab for Gas Divider & Convertor Checker (GDC), Mass Flow Controller, OBS- PN (PEMS), FTIR

The new calibration facility enables HORIBA system users, calibration of master equipment with maximum uptime, hassle-free complex export & reimport process and reduces the downtime of the overall facility.

Features:

One Stop Service - Providing all kind of service starting from repair, Overhauling. Calibration, Validation etc.
Replica of HORIBA Japan Lab
Equipped with Highly accurate Master / Reference Equipment’s with best CMC
Accuracy, standardization, and repeatability in measurements, assuring reliable benchmarks and result.
Traceability to SI, through NIST / National Standards
Optical bench for interferometer, Gas cell alignment
Spectrum collection facility
Upgradation of existing FTIR & modification work
Short lead time resulting lower downtime

HORIBA MIRA Workshop

HORIBA MIRA a world-leader in advanced automotive engineering, test, and development, has strengthened its offering in India with the launch of its vehicle engineering and consultancy services through HORIBA India.

Services Offered Locally

Vehicle Durability Testing
CAE Services
Vehicle Dynamics Consultancy and Testing
RDE Services

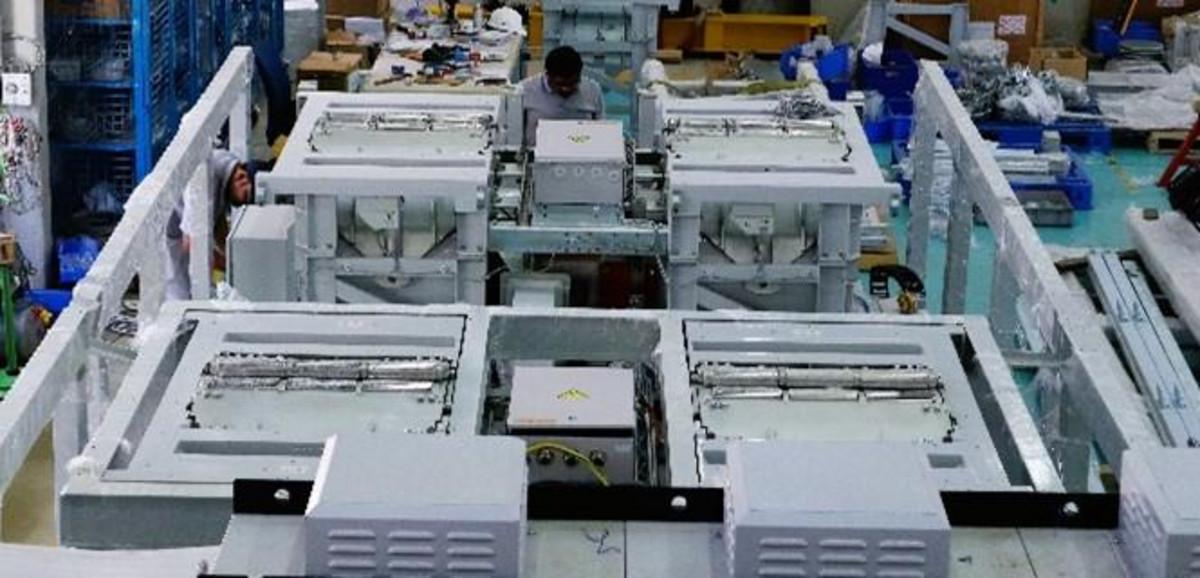

Engineering & Manufacturing

HORIBA India’s engineering and manufacturing team has enhanced capabilities in mechatronics, system builder, and product manufacturing. In-house engineering design and simulation capabilities, high accuracy quality check tools.

Products that we are offer from HITC Pune

Engine and motor reliability / endurance test equipment
Engine test setup equipment
Engine testing and Ev-motor test system
Chassis dynamometers (2/3 & 4-Wheeler)
NRMM engine test system

Engineering services

Design calculations, Material selection
3D modelling with Solid works
Design analysis /simulation, correction, and validation
Manufacturing oriented drawing Preparation
In process inspection/ Design verification at vendor Place.

HORIBA India Technical Center is Accredited and certified by:

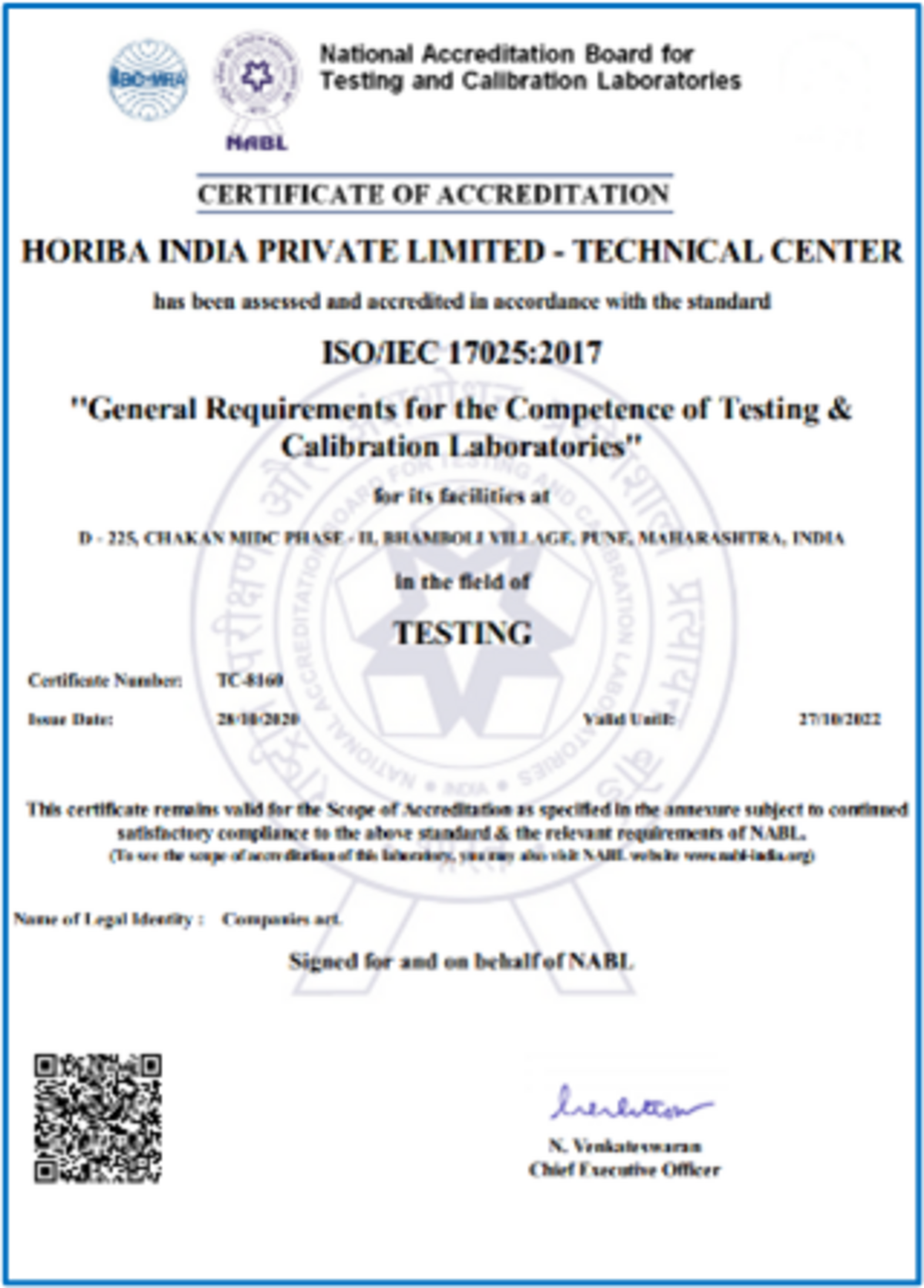

ISO/IEC 17025:2017

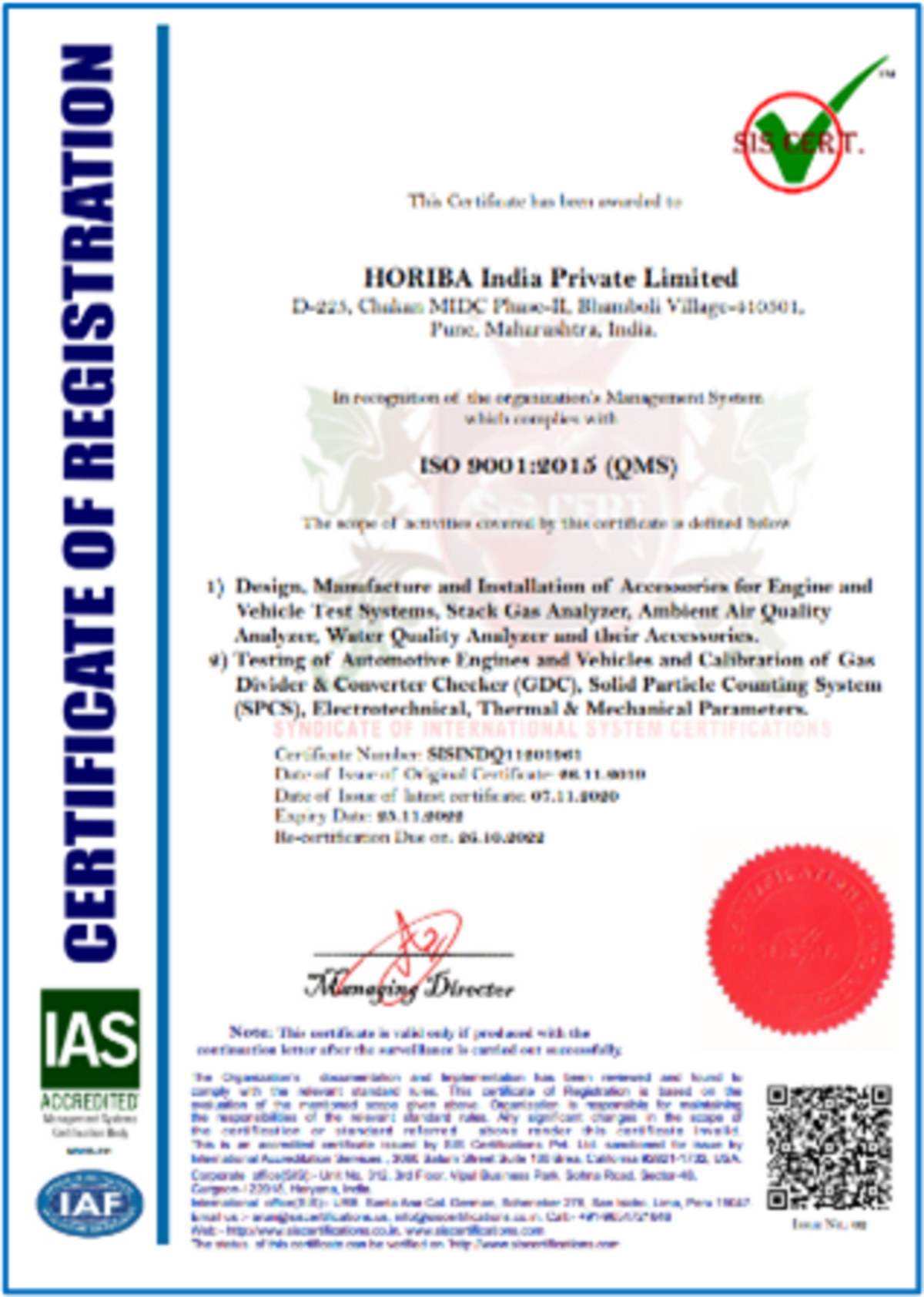

ISO 9001:2015 for QMS

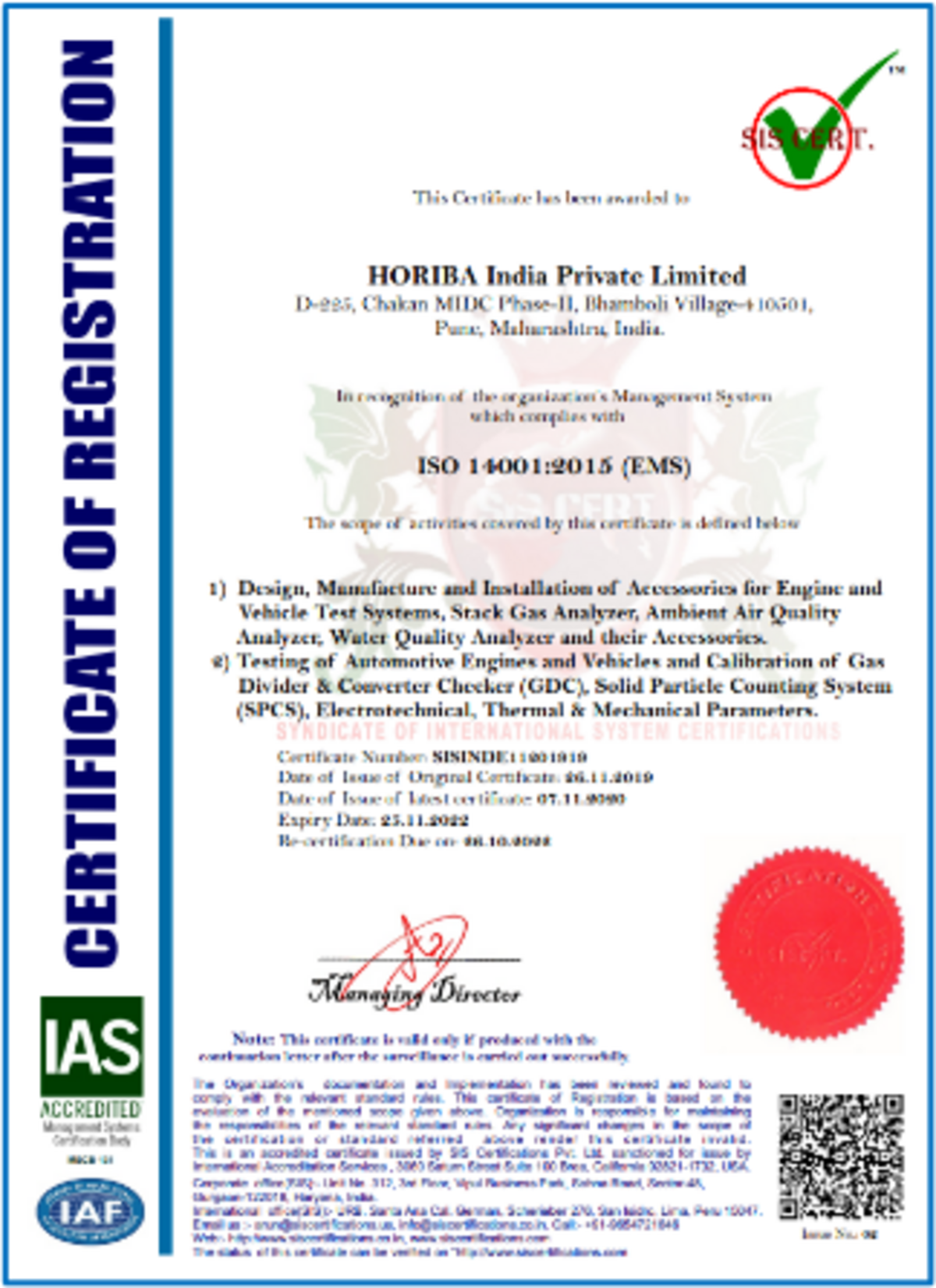

ISO 14001:2015 for EMS

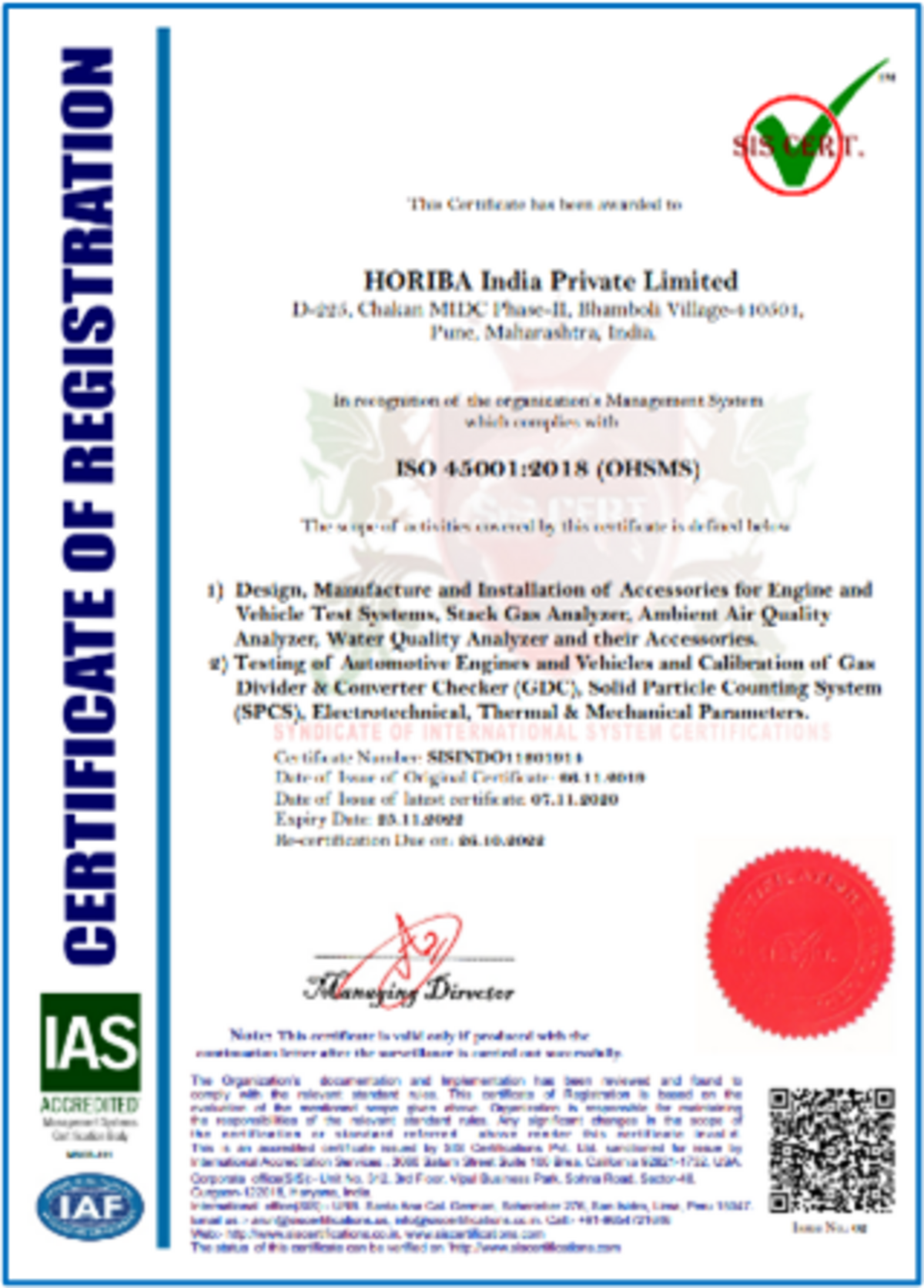

ISO 45001:2018 for OHSMS

For Engine & Vehicle Testing, E-Motor Testing, Automotive Test Systems Design, Manufacturing, & Training.

Benefits:

Customer ability to see, feel and test highly accurate and repeatable testing and measurement.
Local Engineering Capability for Total HORIBA Solution.
A high degree of flexibility in contract testing and development partnerships.
An experienced professional team dedicated to the test center.
Direct access to HORIBA’s product and service expertise.
Guaranteed confidentiality of customer data.
Back by more than 75 years of R&D and Domain expertise.
