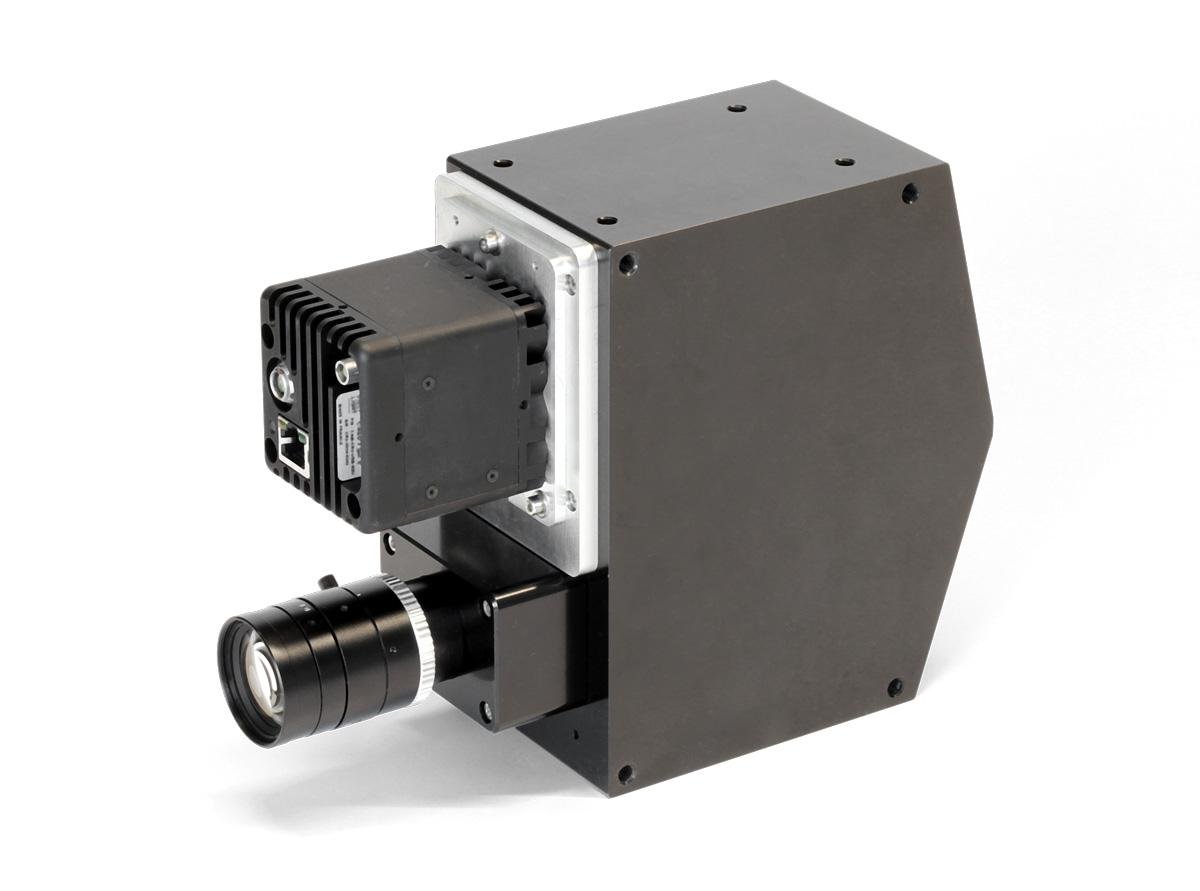

CC135 NIR Product SpecSheet
| Specifications | High-Speed HSI SWIR without imaging lens |
|---|---|
| Measurement Principle | Pushbroom (line-scan) |
| Spectral range | 900-1700 nm |
| F number | F/3 |
| Spectral resolution | 7.5 nm (typical value with 60 µm slit width) |
| Spatial resolution | RMS spot radius < (without lens) |
| Straylight | 0.1 % |
| Wavelength Accuracy | <0.1 nm |
| Optical interface | C-mount |
| Lens options | 12 mm, 16 mm, 24 mm, 50 mm |
| Sensor | CMOS |
| Spectral sampling/pixel | 1.815 nm/pix |
| Spectral pixels | 441 |
| Spatial pixels | 640 |
| Pixel size | 15 µm |
| SNR max | 1183 |
| Dynamic range | 91 dB |
| Readout noise | 37 e |
| Full well capacity | 1,400,000 e (low gain) |
| Electrical Interface | USB 3.0 |
| Frame rate (full frame) | 600 fps |
| Binning | 2, 4, 8 |
| Power | 6.5 Watt |
| Weight (without imaging lens) | 3300 g |
| Size (without imaging lens) | 236 x 82 x 168 mm |
| Operating temperature range | 15°C to 45°C |
| Storage Condition | -20°C to 60°C |
