VS70C LSL

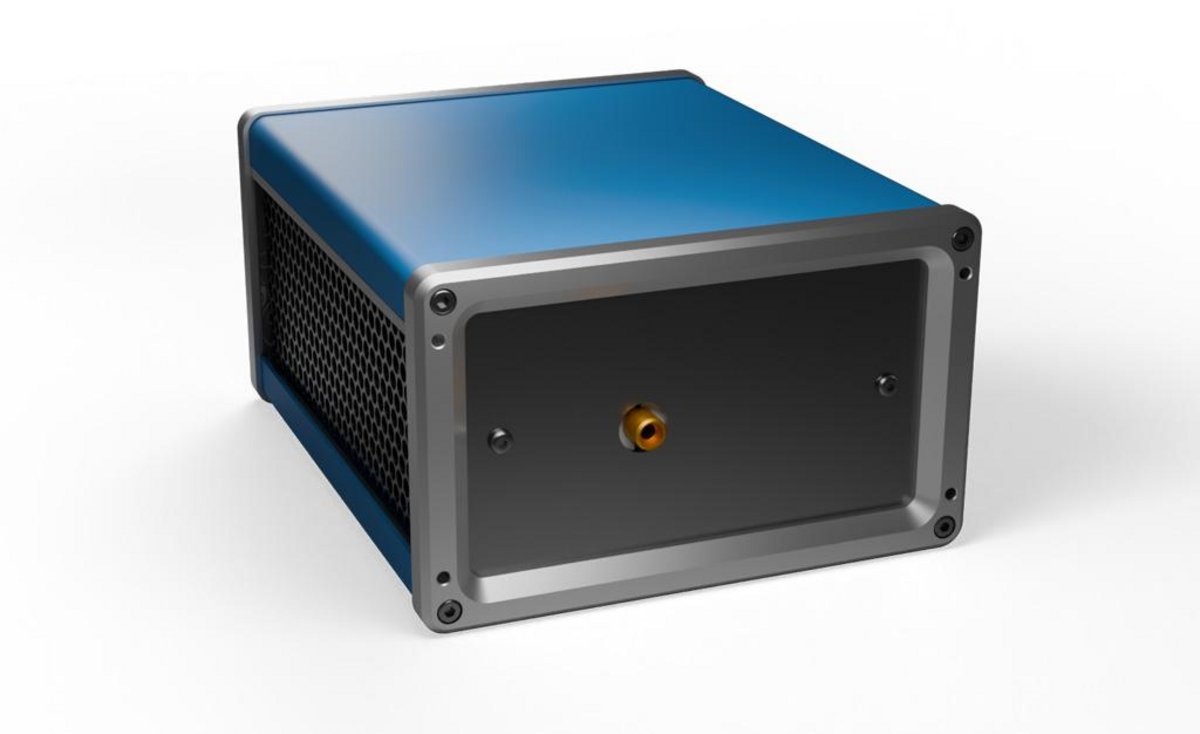

VS70C LSL Compact Low Straylight Spectrometer for High Absorbance Analysis - Picture

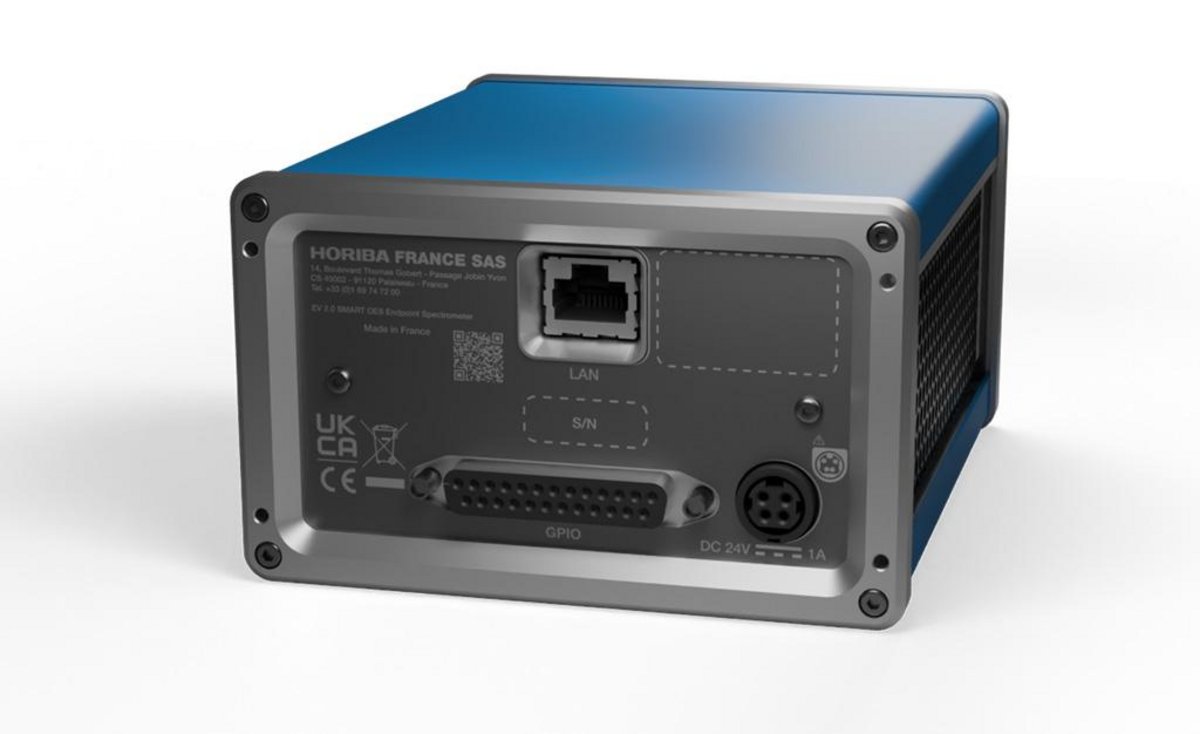

VS70C LSL Compact Low Straylight Spectrometer for High Absorbance Analysis - Picture (Alt)

Compact Low Straylight Spectrometer for High Absorbance Analysis

Speed up your R&D validation and feasibility studies with the VS70C LSL Low Straylight Spectrometer.

The VS70C LSL spectrometer delivers excellent performance in UV VIS range with ultra-low stray light, ensuring precise and linear measurements up to 3 Absorbance (OD3).

Featuring a single fiber-optic input with a high-sensitivity back-thinned CCD detector and dual communication interfaces, it offers a cost effective optical solution for a broad spectrum of industrial, online applications.

This product is available for EMEA and Asian markets.
If you need this reference for other regions, please scroll down and contact us.

Segment: Scientific
Manufacturing Company: HORIBA France SAS

Key Features

  • Low stray light
  • Easy integration for industrial process environments
  • Flexible interface I/O and connectivity
  • Cost effective


Key Applications

  • Analytical instrumentation integrators
  • UV VIS spectrophotometers (single or double beam)
  • High-performance liquid chromatography (HPLC) and capillary electrophoresis (CE)
  • Microplate reader (Multiwell absorbance scanner),
  • Portable set ups for in line process monitoring
Specifications
Typical applicationSemiconductor, Life Science, Environment, Agri Food, Color Analysis, Process Monitoring
Measurement typeAbsorbance measurements up to OD3; Transmission and reflectance analysis
Spectral range200-1000 nm
Spectral resolution (FWHM)2.5 nm
Numerical aperture (NA)0.14
Relative stray lightTypical 0.05%
Absorbance range>3 OD
Wavelength interpolation accuracy0.5 nm
Wavelength stability over operational temperature0.75 nm

DetectorBack-thinned CCD
Maximum acquisition rate100 Spectra/s
Output signal format16bit
Dynamic range (FW/RN)6500:1(1)
SNR500

Input connectorSMA 905
Recommended input fiber core diameter600 µm
Recommended fiber NA0.22

CommunicationEthernet TC/IP
Power requirements24V, 1A
Typical power consumption7W max
SoftwareSDK SAPI / JY70 Spectrometer

FunctionalityLamp flash control; Input/output TTL signal trigger; Programmable TTL input/output; Programmable analog input
Digital I/OInput/output TTL trigger Signal
-6 Programmable TTL output
-2 Programmable analog input
-1 Programmable TTL input
Operating temperature5°C to 45°C
Storage temperature-20°C to 70°C
Dimensions (L, W, H)130 x 112 x 68 mm

(1) Dynamic range is defined as the ratio of the saturation level to the readout noise of the sensor.

Size: 1.1 MB
VS70C LSL product specsheet
