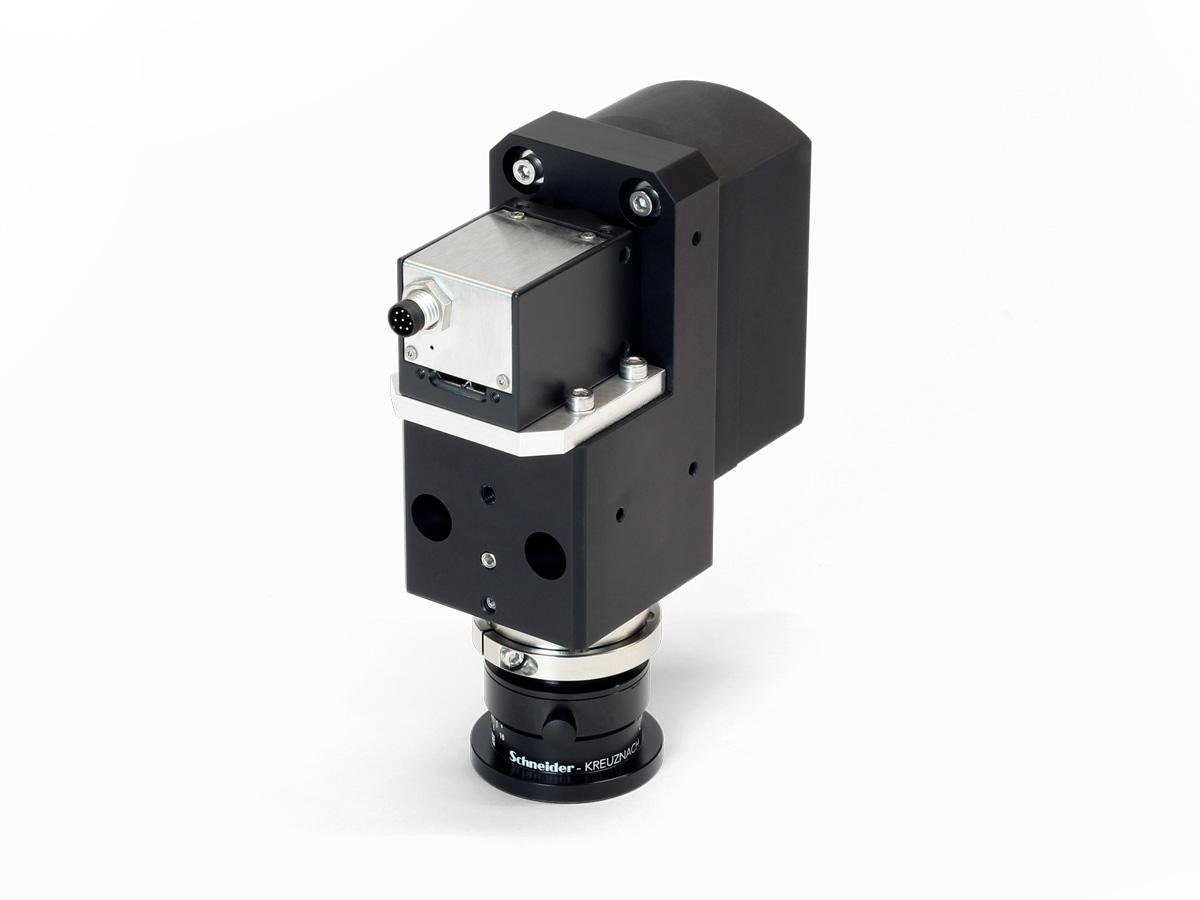

CC55 VIS NIR

Compact and Precise Line Scan Hyperspectral Imaging Camera

A Cost-effective solution for Real-Time Industrial Quality Control

The new HORIBA CC55 Hyperspectral imaging camera combines high-resolution imaging with real-time spectral analysis across the 350–1050 nm range (VIS–NIR) in a rugged, compact design.
Perfect for inline quality controls and product inspection, it detects subtle variations in color, composition, food apparent humidity or ripeness.

It enables precise sorting and grading, boosting process efficiency and reducing waste.

For more information, please contact the HORIBA expert team.

This product is available for EMEA and Asian markets.
If you need this reference for other regions, please scroll down and contact us.

Segment: Scientific

Division: Mini-Spectrometers and Scientific Cameras for OEMs

Manufacturing Company: HORIBA France SAS

Applications

Food quality and safety controls
Food sorting and grading
Precision agriculture monitoring
Color inspection
Light Source Uniformity and Color Analysis / display inspection
Environmental monitoring

Features

Compact footprint
High resolution (1900x1023 pixels)
Excellent imaging quality
Robustness and thermal stability
Easy integration for industrial process environments
Cost effective

Options

Multispectral CC55 VIS NIR
The HORIBA CC55 hyperspectral imaging platform offers full customization for your specific needs.
A fiber optic bundle can be seamlessly integrated for applications requiring simultaneous multi-point measurements, such as life sciences multiwell assays.

Specifications	CC55 VIS NIR
Measurement Principle (acquisition)	Pushbroom (line-scan)
Spectral range	350-1050 nm
F number	F/2.3 (max)
Spectral resolution	3.0 nm (typical value with 25 µm slit width)
Spatial resolution	<8 µm (without lens)
Straylight	0.10 %
Wavelength Accuracy	<0.1 nm
Optical interface	C-mount or custom upon request
Lens options	12mm in standard or custom upon request
Sensor	CMOS
Spectral sampling/pixel	0.69 nm/pix
Spectral pixels	1023
Spatial pixels	1900
Pixel size	5.86 µm
SNR max	177
Dynamic range	72.9 dB
Readout noise	6.16 e
Full well capacity	31,414 e
Electrical Interface	USB 3.0	GigE
Frame rate (full frame)	159 fps (8bit) 129 fps (12 bit)	83 fps (8bit) 65 fps (12 bit)
Binning	1, 2, 4	1, 2, 4
Power	5V, 2.8W at 159 fps	12V or 24V, 2.3W at 53 fps
Software	API for raw data grabbing
Weight (without imaging lens)	420 g
Size (without imaging lens)	45 x 99 x 82 mm
Operating temperature range	15°C to 45°C
Storage Condition	-20°C to 60°C

Size: 2.19 MB

CC55 VIS NIR Product SpecSheet
