UR-Z700 Series

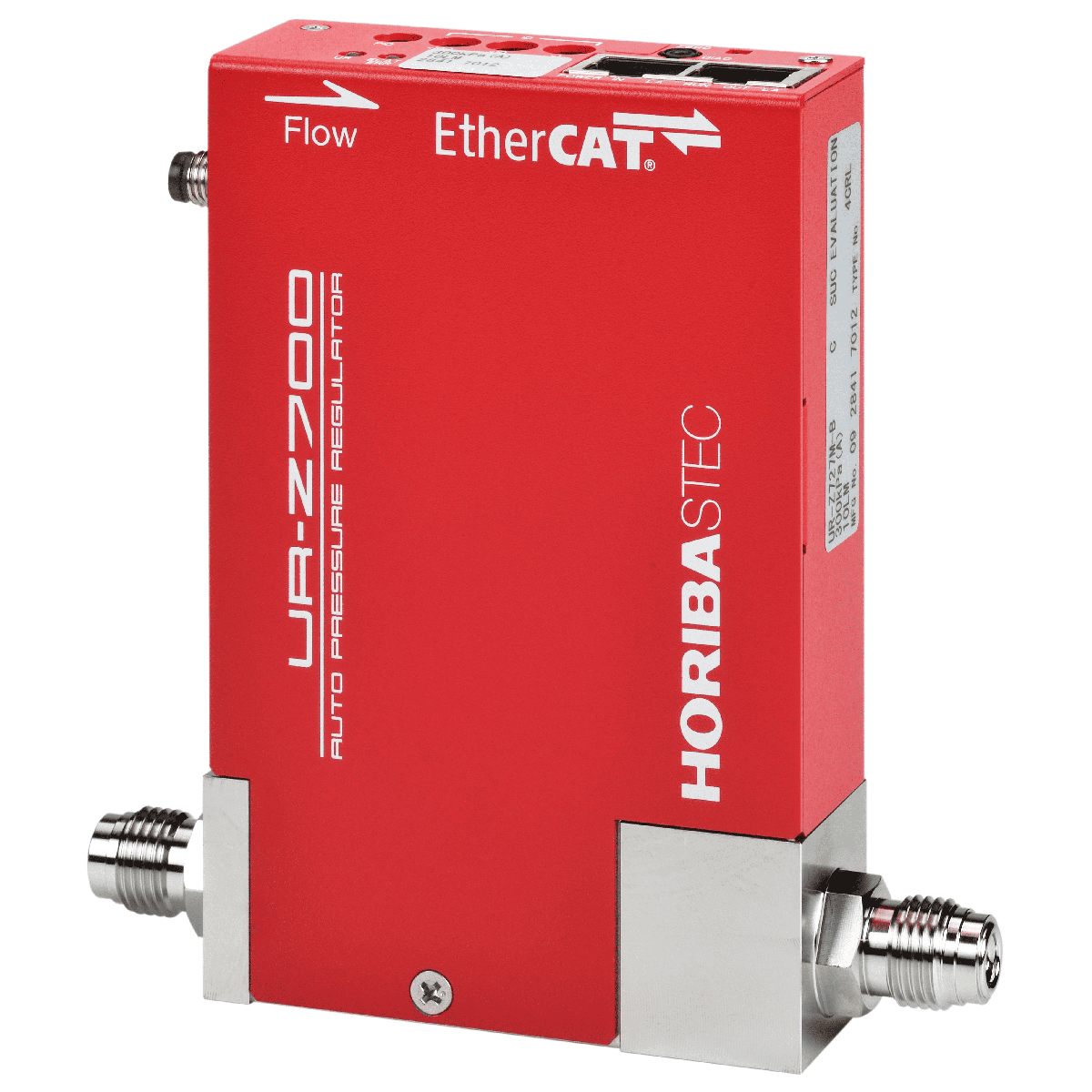

Digital Automatic Pressure Regulator UR-Z700

Digital Automatic Pressure Regulator

The high performance auto pressure regulator UR-Z700 Series has electronic regulators with high-precision pressure sensors and high resolution, fast response piezo actuator valves. They control the pressure relative to the external control signal that they receive. For both Digital/Analog and DeviceNet™ communications.



Segment: Semiconductor
Abteilung: Fluid Control
Produktionsfirma: HORIBA STEC, Co., Ltd.

Benefits:

  • Eliminates the effects of cross talk caused by the switching of high flow lines
  • Fast response: within 0.5 seconds
  • Flexible design: these regulators can be mounted in any position or attitude, and because they use an electric signal for control they are suitable for a wide variety of gas supply systems
  • Line-up of Inlet control type (-B type), Outlet control type
  • Choose between gauge pressure type or absolute pressure type
  • RoHS compliant (UR-Z704 series)
  • Ultra clean: all metal construction (M type).





External Dimension

Dimension of Digital Automatic Pressure Regulator UR-Z700 series
