CellaVision® DC-1


Digital Cell Morphology System

The CellaVision® DC-1 is designed to automate and simplify the process of performing blood cell differentials in low-volume laboratories. The system leverages high-speed robotics and digital imaging to automatically locate and capture high quality images of cells. It allows both stand-alone and networked installation.

In a stand alone low-volume hematology laboratory the CellaVision® DC-1 innovates the process of performing cell differentials.

When used in a small satellite site in a health network the CellaVision® DC-1 allows the process and review of blood smears locally and remotely as well as improving collaboration with colleagues and morphology experts at other sites.

Segment: Medical
Division: Hematology
Manufacturing Company: CellaVision AB (publ)

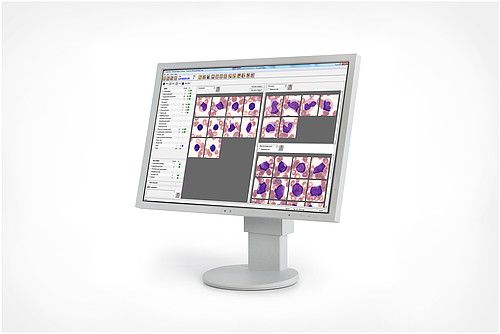

• Automatically captures digital images of cells from blood smears
• Loading Capacity of 1 slides
• Approximately 10 slides throughput / h*
• Creates digital scan of pre-defined area of any interesting specimen

*Processing time may vary depending on smear quality, WBC concentration and number of non-WBCs.

SLIDE HANDLING
• Accepts slides with ground edges, clipped, round or square corners
• Order ID for slides entered either manually or using an optional barcode reader
• Slides are loaded one slide at a time
• Analyzes slides with blood smears

IMMERSION OIL

Manual oil dispensing


QUALITY CONTROL

  • Cell location accuracy test for the verification of the hardware and stain quality
  • Built-in smear check


ARCHIVING OF RESULTS AND IMAGES
Utilizing LAN
STORAGE CAPACITY
• Primary storage: On local hard drive up to 1,500 slides (20 GB)
• Secondary storage: Unlimited when transferred to external storage media

PRINTER SUPPORT
Laser/inkjet printers supported by Windows
COMMUNICATIONS
• Bi-directional LIS support, ASTM
• Ethernet 10/100 Mbps
• Multiple CellaVision® DM/DC analyzers can share a database

SYSTEM COMPONENTS
• Slide Scanning Unit with integrated PC and Windows 10 embedded
• CellaVision® DM Software

ELECTRONICAL SPECIFICATIONS

Analyzer
• Voltage input 12 VDC
• Current input 7 ADC
Power supply
• Voltage input, power supply 100 to 240 V
• Voltage frequency, power supply 50 to 60 Hz
• Current input 1.2 to 0.6 A


SIZE (Width x Depth x Height)
• 280 x 390 x 370 mm
• 11,0 x 15,4 x 14,6 inches

WEIGHT
11 kg / 24 lbs
THROUGHPUT*
NOTE: Processing time may vary depending on smear quality, WBC concentration and number of non-WBCs.
Up to 10 slides/h for complete differential (100 WBC+RBC+PLT)

SLIDE PREPARATION METHODS (WEDGED)
• Automated slide makers and stainers
• CellaVision® SmearMaker
• HemaPrep®/MiniPrep® automated blood smearing device
• Manual smears

STAINS
• Romanowsky stains (May Grünwald Giemsa, Wright Giemsa, Wright)
OPTIONAL SOFTWARE / APPLICATIONS
• CellaVision® Remote Review Software
• CellaVision® Server Software
• CellaVision® Profiency Software
• CellaVision® Dashboard


* Processing time may vary depending on smear quality, WBC concentration and number of non-WBCs.

** Not available in all markets. Please contact your local HORIBA Medical-vendor for more information about availability.

Slide Digitalization
Slide Digitalization
Slide reading is a mandatory step in laboratories, to confirm severe pathology diagnosis. Thanks to this automated pre-classification of blood cells morphology, the digitalization solution will allow you to save time and to get a reading standardization, compared to the use of a traditional microscope.
