|product name||Gel-filled Self-Cleaning pH Electrode|
|Format||6122S (Immersion holder type/ Flow through type/ Drop-in holder type)||6122SA (Direct screw-in thread)|
|Measurement range||0 – 14 pH ※1|
|Measuring solution condition||Temperature range||0 ～ 40 ℃ ※2|
|Pressure range||0 ～ 0.1 MPa|
|Electric conductivity range||500 μS/cm or more|
|Electrode structure||GRT composite electrode|
|Liquid junction structure||Open pore|
|Reference electrode internal liquid||Water-insoluble polymer gel Potassium chloride supersaturated|
|Wetted material||Glass, TiO2|
|Cable length||5 m / 10 m|
|Terminal agreement||Square destination opening crimp terminals (4 mm) G, S, R, T, T, E, LED+, LEDPt|
|Temperature compensation element||1000 Ω (at 0 ℃)|
|Standard accessories||・Instruction manual|
|Adaptive transmitter||HP-200/ HP-300/ HP-480 series / HP-960FTP|
|Compatible holder/adapter||・CH-101 series (Immersion type)|
・CF-251 series (Flow through type)
・NH-10 series (Drop-in) ※3
|・Direct screw-in thread (S-R3/4-SUS-6122SA, S-NPT3/4-SUS-6122SA) ※4|

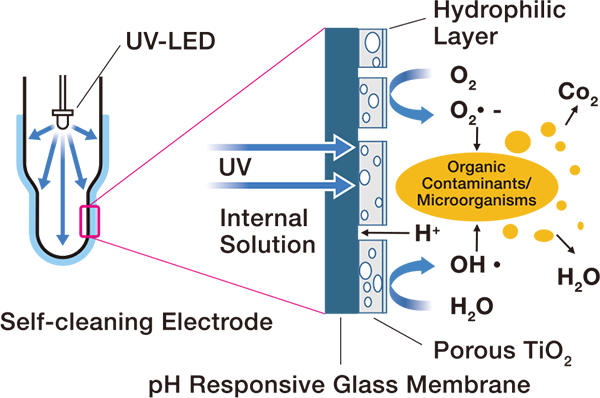

・6122S and 6122SA electrodes are resistant against organic foulants. Inorganic foulants may not be effective.
・Even an organic foulants may not be effective for clean water where algae is likely to grow, or for samples containing solid oils and fats. Also, fine particles of alumina or zirconia may scrape the photocatalyst, the antifouling may not be possible.
・When using this electrode, a relay box with a constant current source (CT-302) and a relay cable (C-5A) are required separately
※1 Composite type pH electrode 6108 is recommended when a high accuracy is required for strong acid and strong alkaline aqueous solutions.
※2 At sample temperatures above 30 °C, the electrode life will be shortened.
※3 An adapter is required when using the 6122S as a drop-in type.
※4 A direct screw-in thread adapter is required when using the 6122SA as a direct insertion type.
|product name||Relay box with constant-current souce|
|Operating temperature range||-20°C to 55°C (Do not freeze)|
|Operating humidity range||Relative humidity 5％ to 90％ (Do not freeze)|
|Storage temperature||-25°C to 65°C|
|Storage temperature||100 V to 240 V AC±10％ (50/60 Hz)|
|Power consumption||8.0 VA (Max)|
|Structure||Outdoor installation type: IP65 ※6|
Mounting method: 50 A pole or wall mounting
Case: Aluminum alloy
Mounting bracket: SUS304
|Mass||3.0 kg (Does not include U-bolt)|
|LED current output (switched by SW)||0 mA, 50 mA, 100 mA, 150 mA, 200 mA (Initial value: 100 mA)|
|External dimensions||180 (W) ×234 (H) ×170 (D) mm (Does not include U-bolt)|
|Compatible electrode||6122 series|
※6 About protection class (IP rating)
IP65: Dust-proof and waterproof protection from water jets only apply when all the cable glands are tightly screwed, and the cables/seal pins are tightened.
External Dimensions (unit: mm)
