Quantitative Analysis of Low-concentration Hydrogen Content in Titanium Alloy
Can we perform quantitative analysis of hydrogen in a titanium alloy to prevent hydrogen embrittlement?
EMGA-921
Hydrogen Analyzer
EMGA-921 Hydrogen analyzer: It's a "New flagship model” for H analyzer and user friendly product.
This is an hydrogen elemental analyzer with high accuracy and repeatability suiting to cutting-edge technology's R&D as well as quality control in the market of steel, new materials, catalyst and so on. This is a new generation model optimized to fit to user's requests.
The hydrogen is measured as H2 by a thermal conductivity detector.
Segment: Scientific
Manufacturing Company: HORIBA, Ltd.
Principle and Gas flow diagram
The sample is placed in a graphite crucible and the crucible is maintained between the upper and the lower electrode of the impulse furnace. A high current power passes through the crucible to create a high temperature.
The Hydrogen in the sample is extracted as Hydrogen gas (H2) and its concentration is determined by a thermal conductivity detector (TCD).
Super High Performance
- Wide measurement range Hydrogen: Up to 0.02％
- Optimized TCD design for hydrogen.
- Precision
- Hydrogen: SD≦0.04μg/g or RSD≦0.5% whichever is larger (Reference gas)
- Standard method
- EMGA-921 fulfills requirements of the standard methods for analysis of various metals(titanium, zirconium, tantalum etc.) JIS Z2614, JIS H1619, JIS H1664, JIS H0696 ASTM E1447
Analysis examples of JSS samples containing lowconcentrations of hydrogen.
User-friendly Software
Measurement Window
Simple software allows easy handling.
Extracted gas signals are displayed in real time numerically and also as curves together with temperature level. Graphs are saved automatically.
In the measurement window, sample weight can be registered automatically. Results are saved in a data table for easy management.
HORIBA originality-Maintenance navigator
Maintenance counter informs users at the timing of consumables replacement to keep high accuracy means.
And as navigator describes the easy to understand procedure for the replacing parts, operator can do maintenance works with absolutely no experience and technical knowledge.
EMGA-921: Hydrogen analyzer
Principle
Hydrogen: Thermal Conductivity detector (TCD）as H2
Measurement range*:
Hydrogen: 0-0.02%
*Possible to increase the range by reducing the sample weight.
Sample weight: 1.0 ± 0.1g
Sensitivity (Minimum reading): Hydrogen: 0.001 ppm.
Accuracy** (Repeatability)
Hydrogen
σn-1≦0.04 ppm or RSD≦0.5% whichever is larger (Reference gas)
** Based on the sample weight 1.0 ± 0.1g and with automation functions described below
Display
- Measurement result: LCD or printout
- Alarm message: LCD or printout
- Flow sheet: LCD
Power of furnace
Inert gas fusion in impulse furnace
Enable to set the generating power 0 – 8.0 kw
Sample introduction: Dual sample/flux introduction mechanism

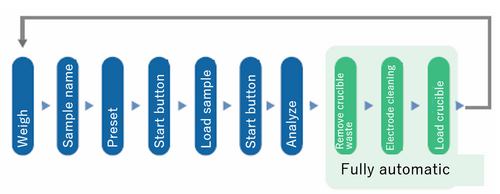

Automation functions: Auto cleaner, Crucible loader
Integration conditions:
Preset time integration
Integration up to reach comparator level
Preset time integration or integration up to reach comparator level, whichever is shorter
Sample ID: Enter up to 20 one-byte characters
Calibration
- One point or multi point calibration (Reference gas or standard samples)
- Calibration using previous analysis data
- Calibration curve correction function
Functions
- Display of real time extraction curve
- Analysis interruption
- Self diagnosis and alarm display
- Analysis of extraction curve (Superposition, difference etc analysis)
- Out put (RC-232C or TCP/IP)
Dimensions: 750mm(H)×785mm(D)×653mm(W)
Sample introduction is positioned at 650mm from table.
Weight: 230kg
On carrying, it is divided in two units (Under 140kg/unit)
Computer: PC model operating OS Windows® XP(SP2) and beyond
Power
Main unit: AC200/220/230/240V ± 10%
Auto cleaner: AC100V (Step-down transformer)
Frequency: 50/60 ± 1Hz
Electric power consumption
Main unit: 12kVA (MAX)
Auto cleaner: 1.5kVA (MAX)
Ground resistance: Less than 10Ω
Installation condition
Operation temperature: 5-40°C
Performance temperature: 5-35°C
Humidity: Maximal relative humidity 80％RH between 5-31℃, linearly decrease down to 50％RH between 31-40℃
Vibration: Duplex amplitude 20micron and less than 0.098m/S2 accelerations at frequency band
Required gas
Ar carrier gas: Purity greater than 99.995%, Pressure 0.35MPa
Stainless steel pipe(O.D.3mm) and suitable connecter fitting within 3m of unit
Dry air or N2 as operating gas: Pressure 0.45MPa
Nylon pipe (O.D.6mm) and suitable connecter fitting within 5m of unit
Cooling mechanism: Radiator unit (Separation type)
Electronic balance (Option)
Enable connection with electronic balance with 1-0.01mg minimum display
Optional automatic voltage regulator (AVR)
Capacity:15kVA
Weight: 130kg
